VGA Extension Cable 10 Ft Male to Female DB15 Monitor PC HG15 E119932 AWM 2919

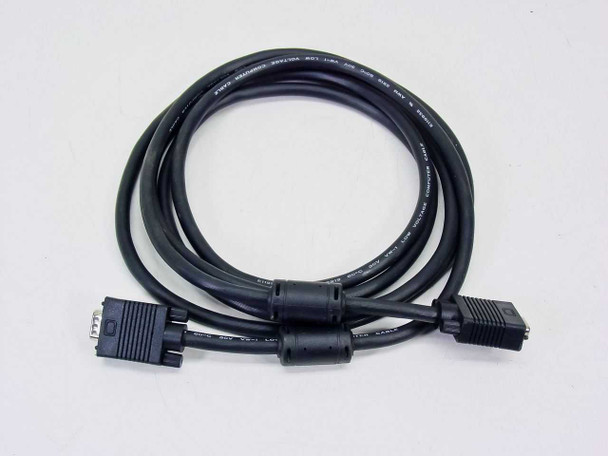

This is a 10-foot black VGA extension cable with a DB15 (HD15) male connector on one end and a DB15 female connector on the other, allowing a VGA monitor cable to be lengthened or a display to be repositioned away from its source. The cable jacket is stamped with UL listing number E119932 and AWM 2919 ratings (80°C, 30V, VW-1), indicating it meets UL low-voltage computer cable standards. Ferrite cores are molded onto both connector ends to reduce electromagnetic interference.
Specifications & What's Included
- Cable type: VGA extension — DB15 (HD15) Male to DB15 (HD15) Female
- Cable length: 10 feet (approximately 3 meters)
- Cable color: Black
- Connector pins: 15-pin DB15 (standard VGA/SVGA)

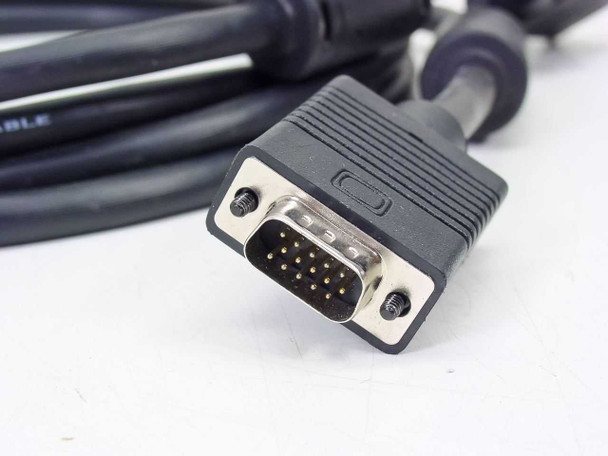

- Thumbscrew posts: present on both connectors for secure attachment
- Ferrite EMI suppression cores: one on each end
- Wire rating: AWM 2919
- Voltage rating: 30V
- Temperature rating: 80°C
- Flame rating: VW-1
- UL listing number: E119932
- Signal type: Analog VGA (SVGA)
- Product code: HG15
Applications
VGA (Video Graphics Array) was introduced by IBM in 1987 and became the dominant analog video standard for PC monitors through the 1990s and 2000s. A VGA extension cable is used to add distance between a computer, KVM switch, or other VGA source and the connected monitor or projector. Common applications include desktop workstations, conference room AV setups, industrial HMI displays, KVM switch installations, and legacy point-of-sale or control terminal configurations. VGA output remains present on a wide range of older computers, servers, projectors, and industrial equipment still in active service, making extension cables like this useful for rack installations, wall-mounted displays, and situations where the signal source cannot be repositioned. The DB15 connector and analog VGA signal are compatible with any standard VGA or SVGA monitor, projector, or KVM device.
This VGA Extension Cable (HG15 / E119932 AWM) has been inspected and is in good condition. The cable jacket is intact with no cuts or kinks, and both the DB15 male and female connectors are clean with straight pins and no visible damage. The ferrite cores at each end are present and secure. Normal light surface handling marks may be present but nothing that affects function. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
HG15 |
MPN: |
E119932 |
Type: |
VGA Extension Cable |
SKU: |
43652 |
Connector A: |
DB15 (HD15) Male — VGA |
Connector B: |
DB15 (HD15) Female — VGA |
Cable Length: |
10 Feet (approx. 3 meters) |
Cable Color: |
Black |
Wire Gauge / Rating: |
AWM 2919 |
Voltage Rating: |
30V |
Temperature Rating: |
80°C |
Flame Rating: |
VW-1 |
UL Listing Number: |
E119932 |
Signal Type: |
Analog VGA (SVGA) |
Compatible With: |
VGA monitors, projectors, computers, KVM switches |
Ferrite Cores: |
Yes — visible on both ends for EMI suppression |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Cable only; no packaging included. |
Country/Region of Manufacture: |
Unknown |
Condition Notes: |
This VGA extension cable (HG15 / E119932 AWM) has been inspected and is in good condition. Cable jacket is intact, both DB15 connectors are clean with straight pins, and ferrite cores are present. Please contact us with any questions. |
