Vexta PH266-01 2-Phase Stepper Motor DC 5V 1.2A Oriental Motor NEMA 17

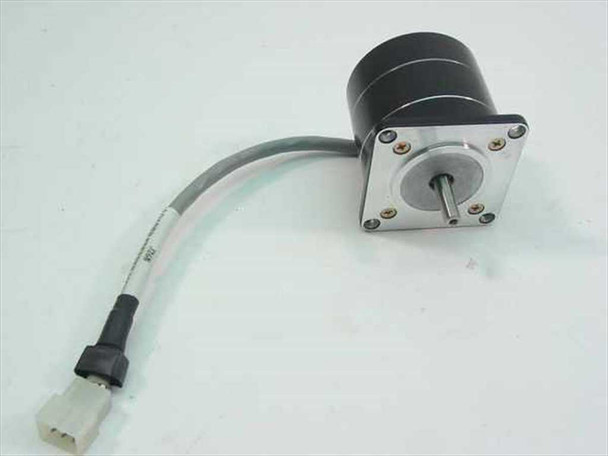

The Vexta PH266-01 is a 2-phase stepping motor manufactured by Oriental Motor Co., Ltd. under their well-known Vexta product line. It operates on DC 5V at 1.2A and features a square mounting flange consistent with the NEMA 17 frame size. The motor comes with an attached gray lead wire terminating in a 4-pin white plastic connector, making it straightforward to integrate into a driver circuit or motion control system. It was assembled in the USA.
Specifications & What's Included
- Model: Vexta PH266-01
- Manufacturer: Oriental Motor Co., Ltd.
- Motor type: 2-phase stepper (stepping motor)
- Input voltage: DC 5V
- Current rating: 1.2A
- Frame size: Square mounting flange (NEMA 17-compatible form factor)
- Output shaft: Single protruding shaft, visible front face
- Connector: 4-pin white plastic housing connector
- Lead wire: Gray multi-conductor cable, approximately 15 cm
- Country of manufacture: USA (per label)
- Includes: Motor with attached lead wire and connector; no additional hardware
Applications
Oriental Motor's Vexta line of 2-phase stepper motors has been a widely used choice in precision motion control applications since the 1980s and remains in active use today in both OEM manufacturing and replacement/maintenance contexts. This motor size and voltage range is commonly found in small automation equipment, laboratory instruments, medical devices, semiconductor handling equipment, plotters, CNC positioning stages, and other applications requiring precise incremental motion. The 2-phase design works with standard bipolar or unipolar stepper driver circuits and is compatible with a broad range of Oriental Motor driver boards as well as third-party controllers. Its compact NEMA 17-class frame makes it a practical drop-in candidate for many light-duty positioning and indexing applications.
This Vexta PH266-01 2-Phase Stepper Motor by Oriental Motor Co. has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The motor body and mounting flange show normal wear consistent with prior use, and the attached lead wire and 4-pin connector appear intact with no visible damage. Please review our photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Oriental Motor |
Model: |
PH266-01 |
MPN: |
PH266-01 |
Product Line: |
Vexta |
Type: |
2-Phase Stepper Motor |
SKU: |
21328 |
Voltage: |
DC 5V |
Current Rating: |
1.2A |
Number of Phases: |
2 |
Motor Technology: |
Stepping Motor (Stepper) |
Connector Type: |
4-pin white housing connector |
Lead Wire: |
Included — gray multi-conductor lead wire |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes attached lead wire with 4-pin connector. No additional hardware included. |
Condition Notes: |
This Vexta PH266-01 2-Phase Stepper Motor by Oriental Motor has been inspected and is in good used condition. Pulled from a working environment. Lead wire and connector appear intact. Please contact us with any questions. |
