Description
Vexta CSD2120-T 2-Phase Stepper Motor Driver DC 24V/36V 2.8A Oriental Motor

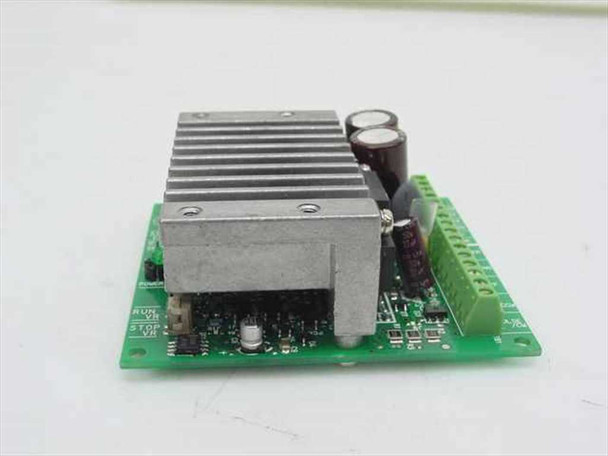

The Vexta CSD2120-T is a compact, open-frame 2-phase stepper motor driver manufactured by Oriental Motor Co., Ltd. of Japan. It accepts a DC input of either 24V or 36V (±10%) and delivers up to 2.8A of output current, making it suitable for driving small to mid-range 2-phase bipolar stepper motors in automation and motion control systems. The driver is mounted on a green PCB with an integrated aluminum heatsink for thermal management and features a row of labeled screw-terminal connectors for easy wiring.
Specifications & What's Included
- Manufacturer: Oriental Motor Co., Ltd. (Vexta brand)
- Model: CSD2120-T
- Driver Type: 2-Phase Stepper Motor Driver
- Input Voltage: DC 24V ±10% or DC 36V ±10%
- Output Current: 2.8A
- Motor Compatibility: 2-Phase stepper motors
- Form Factor: Open-frame PCB with integrated aluminum heatsink
- Connectors: Multi-position green screw-terminal blocks (labeled for motor, power, and signal wiring)
- Status Indicators: RUN and STOP indicator LEDs on front edge of PCB
- Country of Manufacture: Japan
- Included: Driver board only — no cables or mounting hardware
Applications
The Vexta CSD2120-T is used in industrial automation, CNC, and motion control systems where precise open-loop positioning is required. Vexta (Oriental Motor's stepper/driver product line) drivers like this one are commonly paired with Oriental Motor's own 2-phase stepper motors in packaging machinery, labeling equipment, conveyor indexing, and small robotics. The open-frame PCB format is suited for OEM integration into machine enclosures or control panels where the driver is mounted inside an existing cabinet alongside other control electronics. Oriental Motor's CSD-series drivers from this era support adjustable current settings and protection features typical of industrial-grade stepper drive circuits.
The Vexta CSD2120-T 2-Phase Stepper Motor Driver appears to be new and unused, found in an opened box. The PCB and components show no signs of use or wear. Original packaging may be missing or incomplete. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Vexta (Oriental Motor Co., Ltd.) |
Model: |
CSD2120-T |
MPN: |
CSD2120-T |
SKU: |
25964 |
Type: |
2-Phase Stepper Motor Driver |
Input Voltage: |
DC 24V ±10% or DC 36V ±10% |
Output Current: |
2.8A |
Number of Phases: |
2 |
Form Factor: |
PCB / Open Frame Board |
Compatible Motor Type: |
2-Phase Stepper Motor |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Driver board only — no cables or mounting hardware included. |
Condition Notes: |
Vexta CSD2120-T 2-Phase Stepper Motor Driver appears new and unused, sourced from an opened box. PCB shows no signs of use or wear. Packaging may be incomplete. Please contact us with any questions. |
