Description

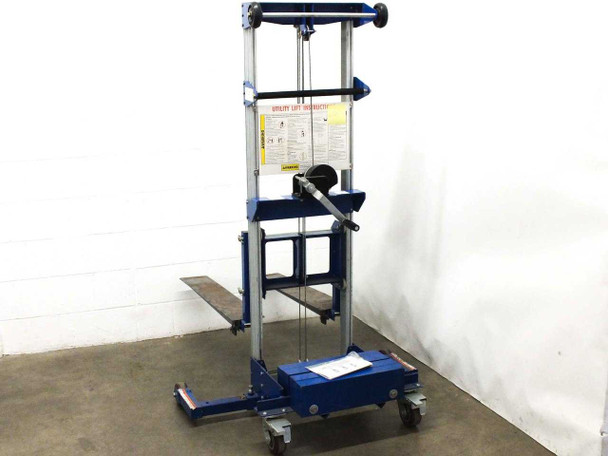

Vestil GL4-BC Hand Winch Stacker Lift Truck 500 LB Cap 22" Forks w/ Extensions
The Vestil GL4-BC is a manual hand winch stacker lift truck designed for raising and lowering loads without electrical power. The load platform raises and lowers by turning the hand crank on the side of the mast, winding the cable through the pulley system at the top. This unit comes equipped with 22" forks and 37" fork extensions, giving it added versatility for different load sizes. Maximum rated load capacity is 500 LBS (227 kg).
Specifications & What's Included
- Model: Vestil GL4-BC (also referenced as A-Lift-CB)
- Lift capacity: 500 LBS (227 kg)
- Fork length: 22"
- Fork extension length: 37"
- Lower forklift lift height: 1.2 m
- Upper forklift lift height: 1.8 m
- Overall dimensions: 55" W x 43" D x 68" H
- Lift mechanism: Manual hand crank / hand winch with cable and pulley
- Power: None required — fully manual operation
- Mobility: Four caster wheels for repositioning on flat surfaces
- Frame: Welded steel base and uprights, aluminum mast extrusions
- Includes: Fork extensions (37"), safety instruction placard mounted on mast
Applications
The Vestil GL4-BC is a utility stacker used in warehouses, stockrooms, light manufacturing, and maintenance environments where a powered forklift is impractical or unavailable. It is well suited for lifting and positioning loads onto shelving, mezzanines, work benches, or machinery platforms within its rated height range. Because it operates entirely by hand crank with no electrical or hydraulic system, it can be used in areas without power access and requires no maintenance of a motor or pump. The A-Lift series from Vestil is a widely used line of manual utility lifters found in facilities that need occasional lifting capability without the cost or footprint of a powered stacker. It is particularly common in smaller shops, labs, and storage areas where loads need to be raised to mid-height shelving or equipment decks.
This Vestil GL4-BC Hand Winch Stacker Lift Truck has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The unit shows normal wear consistent with prior service use — the blue steel frame and aluminum mast show light scuffs and surface marks typical for handling equipment of this type; the forks and extensions show floor-contact wear. All major components including the hand winch mechanism, mast assembly, fork extensions, and caster wheels are present and intact as shown in the photos. Note: this item requires freight shipping due to its size and weight — please contact us before purchasing to obtain a shipping quote or to arrange local pickup or a facility viewing. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Vestil |
Model: |
GL4-BC |
MPN: |
A-Lift-CB |
SKU: |
51753 |
Type: |
Hand Winch Stacker / Utility Lift Truck |
Lift Capacity: |
500 LBS (227 kg) |
Fork Length: |
22" |
Fork Extension Length: |
37" |
Lower Forklift Lift Height: |
1.2 m |
Upper Forklift Lift Height: |
1.8 m |
Overall Dimensions: |
55" x 43" x 68" H |
Lift Mechanism: |
Hand crank / hand winch |
Drive Type: |
Manual (no power required) |
Mobility: |
Wheeled / casters |
Form Factor: |
Freestanding, wheeled |
Power Requirements: |
None — manual hand crank operation |
Seller Notes: |
Includes fork extensions (37"). Freight shipping required — contact us for a quote. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Vestil GL4-BC Hand Winch Stacker Lift Truck is in good used condition, pulled from a working environment. Shows normal wear on the frame, forks, and extensions. All components present. Freight shipping required — contact us for a quote. |
