Varian

Varian VJC6767D8T7 Switch Switch Control Rackmount Microwave Equipment Division

(No reviews yet) Write a Review
SKU:
31567
MPN:
VJC-6767
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
10.00 LBS
Shipping:
Calculated at Checkout

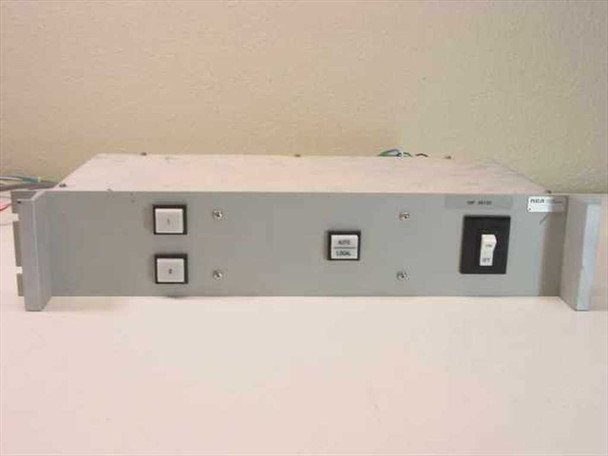

  • Varian VJC6767D8T7 Switch Control – front panel view showing two pushbuttons, AUTO/LOCAL toggle switch, and power rocker switch
  • Varian VJC6767D8T7 Switch Control – rear panel view showing Varian Microwave Equipment Division labels, multi-pin connectors, and wiring harness
  • Varian VJC6767D8T7 Switch Control – close-up of model label showing model VJC6767D8T7, S/N 358, Switch/Switch Control, Made in USA
  • Varian VJC6767D8T7 Switch Control – close-up of rear connectors J1 (multi-pin circular), J2, J3 (BNC-style), and J5 (rectangular multi-pin)
  • Varian VJC6767D8T7 Switch Control – rear panel overview showing wiring harness connection block and dual Varian labels
  • Varian VJC6767D8T7 Switch Control – included wiring harness with two multi-pin connector ends
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Varian VJC6767D8T7 Switch Control Rackmount Unit

Switch control unit from Varian's Microwave Equipment Division. Designed for rackmount installation in microwave systems and test environments.

Specifications & What's Included

  • Model: VJC6767D8T7 (Secondary: VJC-6767)
  • Manufacturer: Varian Microwave Equipment Division, Santa Clara, California
  • Form Factor: Rackmount
  • Connectors: 9-pin circular (J1), smaller multi-pin circular (J2), BNC coaxial (J3), rectangular card-edge (J5)
  • Includes attached wiring harness with dual multi-pin connector ends

Applications

Switch control units of this type are used in microwave test equipment, RF systems, and industrial control applications. Varian equipment from this era was commonly integrated into manufacturing test stands, laboratory instrumentation, and telecommunications infrastructure. The rackmount form factor supports standard 19-inch cabinet installation in modular systems.

Condition: Used
This Varian VJC6767D8T7 Switch/Switch Control rackmount unit has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The chassis shows normal wear consistent with rack service — some light surface scuffing on the panels. The rear connectors (J1, J2, J3, J5) and wiring harness appear intact with no obvious damage. A wiring harness with two multi-pin connector ends is included, as shown in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
VJC6767D8T7
MPN:
VJC6767D8T7
Secondary Model:
VJC-6767
Type:
Switch / Switch Control Unit
SKU:
31567
Condition:
Used – Pulled from Working Environment
Form Factor:
Rackmount
Manufacturer Division:
Varian Microwave Equipment Division
Manufacturer Location:
Santa Clara, California
Country/Region of Manufacture:
United States
Connector J1:
Multi-pin circular connector (approx. 9-pin)
Connector J2:
Multi-pin circular connector (smaller)
Connector J3:
BNC-style coaxial connector
Connector J5:
Multi-pin rectangular/card-edge connector
Seller Notes:
Includes attached wiring harness with two multi-pin connector ends.
Condition Notes:
Varian VJC6767D8T7 Switch/Switch Control rackmount unit. Inspected and in good used condition. Pulled from a working environment where it was in active use. Rear connectors and wiring harness intact. Wiring harness included.
View AllClose

Related Products

Related Products

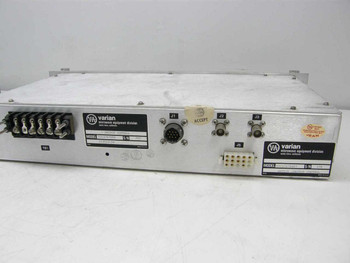

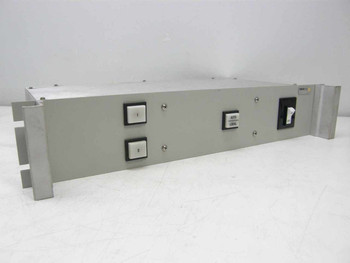

Varian VJC6767D8T7 VJC6767D5D Switch Control rackmount unit – front panel view showing two push-button switches and a toggle switch with rack ears Varian VJC6767D8T7 VJC6767D5D Switch Control – rear panel showing TB1 terminal block, J1 circular multi-pin connector, J2 and J3 coaxial connectors, J5 header, and dual Varian labels
