Varian

Varian 59782-01018020-01 CCA Heater and Shunt Assembly 120/220V 4-5.5A Rev 16

(No reviews yet) Write a Review
SKU:
50371
MPN:
59782-01018020-01
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
10.00 LBS
Shipping:
Calculated at Checkout
  • Varian 59782-01018020-01 CCA Heater and Shunt Assembly – angled top view showing full PCB with acrylic cover, transformers, and capacitors

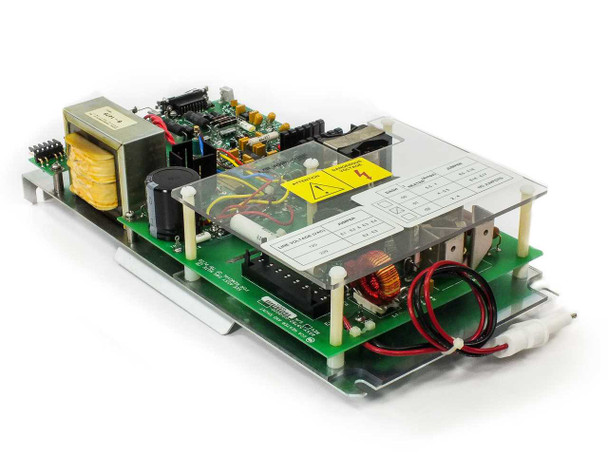

  • Varian 59782-01018020-01 CCA Heater and Shunt Assembly – angled view from opposite side showing secondary PCB board, wiring, and acrylic shield

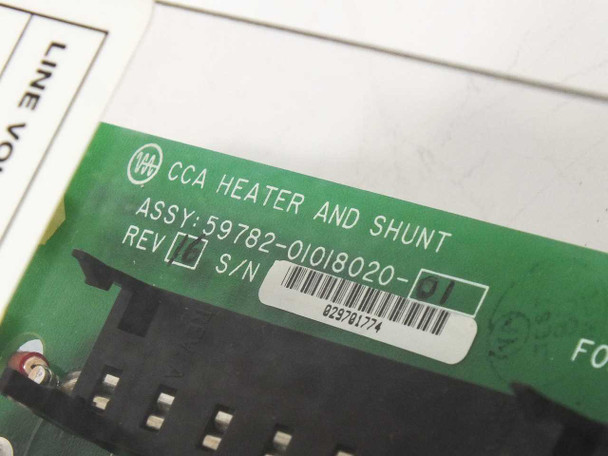

  • Varian 59782-01018020-01 CCA label close-up showing part number ASSY 59782-01018020-01, REV and S/N fields, and barcode
  • Varian 59782-01018020-01 CCA Heater and Shunt Assembly – front straight-on view showing DB-15 and DB-25 connectors and full board layout
  • Varian 59782-01018020-01 PCB close-up showing DB-15, DB-25 edge connectors, heat sinks, and discrete components on front edge
  • Varian 59782-01018020-01 CCA Heater and Shunt Assembly – side view showing acrylic standoff cover, warning labels, and wiring harness
  • Varian 59782-01018020-01 PCB close-up showing Signal Transformer B-1479, wiring harness, and output section components
  • Signal Transformer Co. B-1479 transformer close-up mounted on Varian 59782-01018020-01 CCA Heater and Shunt PCB
  • Varian 59782-01018020-01 PCB close-up showing large 10000uF 50V electrolytic capacitor and surrounding board components
  • Varian 59782-01018020-01 CCA Heater and Shunt Assembly – end view showing secondary power board, line voltage jumper table, heater/range jumper chart, and wiring
  • Varian 59782-01018020-01 Assy: CCA Heater and Shunt Rev. 16 120/220v 4-5.5A
  • Varian 59782-01018020-01 Assy: CCA Heater and Shunt Rev. 16 120/220v 4-5.5A
  • Varian 59782-01018020-01 Assy: CCA Heater and Shunt Rev. 16 120/220v 4-5.5A
  • Varian 59782-01018020-01 Assy: CCA Heater and Shunt Rev. 16 120/220v 4-5.5A
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Varian 59782-01018020-01 CCA Heater and Shunt Assembly 120/220V 4-5.5A Rev 16

PCB-based heater and shunt control assembly for Varian vacuum equipment. Dual-voltage rated for 120/220V AC operation at 4–5.5A, with integrated transformer and capacitor components.

Specifications & What's Included

  • Model: 59782-01018020-01 (Rev 16)
  • Voltage Rating: 120/220V AC
  • Current Rating: 4–5.5A
  • Transformer: Signal Transformer Co. B-1479
  • Capacitor: 10000uF 50V electrolytic
  • Connectors: DB-15, DB-25 edge connectors, multi-pin header
  • Includes protective acrylic cover/shield
  • Made in USA

Applications

This assembly was used in Varian vacuum systems and ion implantation equipment as a control and thermal management module. CCA heater assemblies regulate temperature and provide shunt functionality for vacuum chamber operations and related subsystems. Commonly found in semiconductor processing and analytical instrumentation platforms from the 1990s–2010s.

Condition: Used
This Varian 59782-01018020-01 CCA Heater and Shunt Assembly has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The PCB shows normal handling marks consistent with its age; the acrylic protective cover is intact. The Signal Transformer B-1479 and main electrolytic capacitors are present and show no signs of damage or leakage. Both edge connectors (DB-15 and DB-25) appear clean and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian
Model:
59782-01018020-01
MPN:
59782-01018020-01
Type:
CCA Heater and Shunt Assembly
SKU:
50371
Revision:
Rev 16
Voltage Rating:
120/220V AC
Current Rating:
4–5.5A
Form Factor:
PCB / Card Assembly
Transformer:
Signal Transformer Co. B-1479
Capacitor:
10000uF 50V electrolytic (visible on board)
Connector Types:
DB-15, DB-25 edge connectors; multi-pin header
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes protective acrylic cover/shield over PCB assembly
Country/Region of Manufacture:
United States
Condition Notes:
Varian 59782-01018020-01 CCA Heater and Shunt Assembly, Rev 16. Inspected and in good condition; pulled from a working environment. PCB, acrylic cover, transformer, and connectors all appear intact.
View AllClose
