Varian 01-019314 HV Converter & Heater Supply Board Dash 00 Rev 12
HV converter and heater supply PCB assembly for Varian semiconductor and vacuum process equipment. Board includes power transformer and filtering capacitors, connects via DB25 female connector.
Specifications & What's Included
- Model: 01-019314 Dash 00 Rev 12
- Type: HV Converter & Heater Supply PCB Assembly
- Form Factor: Card / PCB Module with aluminum bracket
- Connector: DB25 Female (J3)
- Key Components: Power transformer, three Sprague 10.0uF 10% 400 DC capacitors
- Includes aluminum side bracket
- Manufactured in the United States
Applications
This supply board is used in Varian vacuum and semiconductor processing systems. The HV converter generates high voltage for tube operation while the heater supply provides filament power. Boards of this type are found in Varian ion implantation, diffusion, and vacuum deposition equipment from the industrial and research sectors.
Condition: Used

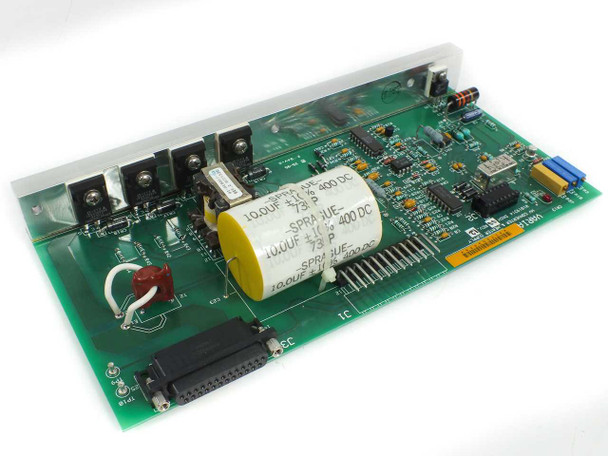

This Varian 01-019314 HV Converter & Heater Supply board (Dash 00, Rev 12) was pulled from a working Varian system where it was in use and functional. It has been inspected and appears to be in good condition. The PCB is clean with no cracked components or obvious damage visible. The three large Sprague capacitors, DB25 connector, and aluminum side bracket all appear intact. Normal handling marks are present consistent with prior installation. Please view our photo set and contact us if you have any questions.
This Varian 01-019314 HV Converter & Heater Supply board (Dash 00, Rev 12) was pulled from a working Varian system where it was in use and functional. It has been inspected and appears to be in good condition. The PCB is clean with no cracked components or obvious damage visible. The three large Sprague capacitors, DB25 connector, and aluminum side bracket all appear intact. Normal handling marks are present consistent with prior installation. Please view our photo set and contact us if you have any questions.
