Description
Vacuubrand ME 2S Oil-Free Diaphragm Vacuum Pump 120V 60Hz 2.2 m³/h 100 mbar
The Vacuubrand ME 2S is a compact, oil-free diaphragm vacuum pump designed for clean, contamination-free vacuum generation in laboratory and light industrial environments. Operating on 120V/60Hz single-phase power, it produces an ultimate vacuum of 100 mbar with a maximum pumping speed of 2.2 m³/h, making it well suited to routine lab vacuum tasks without the maintenance demands of oil-sealed rotary vane pumps. The unit is manufactured in Germany by VACUUBRAND GmbH+Co KG to high quality standards and bears CE certification.
Specifications & What's Included
- Manufacturer: VACUUBRAND GmbH+Co KG, Wertheim, Germany
- Model: ME 2S (Variant 01)
- Pump type: Oil-free diaphragm (Membran-Vakuumpumpe)
- Ultimate vacuum: 100.0 mbar
- Max pumping speed: 2.2 m³/h
- Input power: 120V, 60Hz, 2.1A
- Motor: ABM Greiffenberger Type 4EKF56CX-4, 0.12 kW
- Motor protection: IP 54
- Power factor: cos 0.97
- Inlet/outlet: hose barb fittings (aluminum, visible on top of pump head)
- Switch: front-panel on/off rocker switch with indicator window
- Power cord: attached, NEMA 5-15P plug (standard US 3-prong)
- Mounting: four rubber anti-vibration feet
- Form factor: benchtop
- Includes: pump unit with attached power cord
Applications
Diaphragm vacuum pumps like the Vacuubrand ME 2S are standard equipment in chemistry, biology, and analytical laboratories where a clean, oil-free vacuum source is required. They are widely used to support rotary evaporators (rotovaps) for solvent removal, Büchner funnel filtration, solid-phase extraction (SPE), vacuum desiccation, and general aspiration tasks. Because they are oil-free, these pumps do not contaminate samples with pump oil vapors and require far less routine maintenance than oil-sealed rotary vane alternatives — an important advantage in cleanroom-adjacent or sensitive analytical work. The ME 2S is particularly common in university research labs, pharmaceutical QC labs, and chemical processing environments. With an ultimate vacuum of 100 mbar, it is appropriate for general-purpose lab vacuum applications, though it is not intended for high-vacuum or molecular vacuum work.

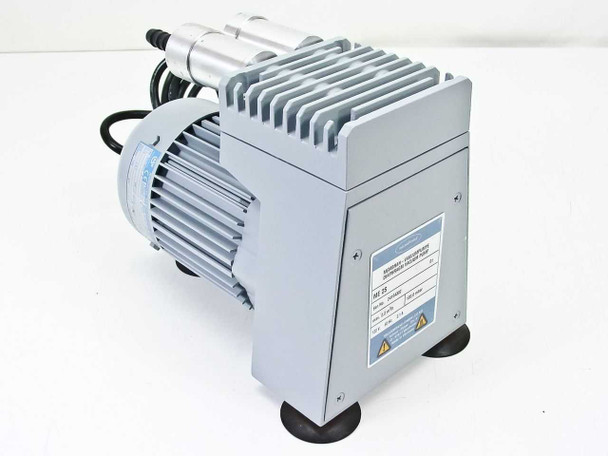

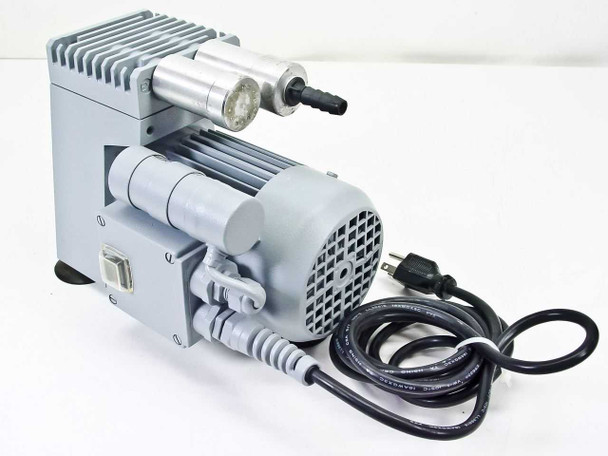

This Vacuubrand ME 2S Oil-Free Diaphragm Vacuum Pump has been visually inspected and appears to be in good used condition overall. The housing, motor, and cooling fins are clean with no cracks or significant damage. The inlet and outlet port fittings show white mineral/crystalline deposits from prior use — this is typical for pumps used in filtration or evaporation applications and is visible in our photos. The on/off switch, power cord, and NEMA plug are intact. The pump was pulled from a working laboratory environment. Please review our full photo set for an accurate picture of cosmetic condition, and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Vacuubrand |
Model: |
ME 2S |
MPN: |
ME 2S |
Type: |
Oil-Free Diaphragm Vacuum Pump |
SKU: |
42407 |
Seller Notes: |
Pump unit with power cord included. |
Country/Region of Manufacture: |
Germany |
Power Requirements: |
120V, 60Hz, 2.1A |
Motor Power: |
0.12 kW |
Ultimate Vacuum: |
100.0 mbar |
Max Flow Rate: |
2.2 m³/h |
Pump Principle: |
Diaphragm (Oil-Free) |
Motor Type: |
ABM Greiffenberger 4EKF56CX-4 |
Motor Protection: |
IP 54 |
Power Factor: |
cos 0.97 |
Form Factor: |
Benchtop |
Compatible With: |
Rotary evaporators, filtration, lab vacuum systems |
Variant: |
01 |
Condition Notes: |
Vacuubrand ME 2S Diaphragm Vacuum Pump in good used condition. Housing and motor are clean; inlet/outlet ports show mineral deposit buildup from prior use (visible in photos). Pulled from a working lab environment. Contact us with questions. |
