The VAC AO-316-C is a rack-panel trace oxygen analyzer built by Vacuum Atmospheres Company (VAC) of Hawthorne, California. It integrates a Teledyne Analytical Instruments Model 316 electrochemical trace oxygen sensor and meter into a single panel-mounted assembly, designed to measure oxygen concentrations in the parts-per-million (PPM) range in controlled or inert gas environments. The system routes sample gas through a flow path to the electrochemical fuel cell, which generates a signal proportional to oxygen concentration that drives the analog PPM meter.

Specifications & What's Included

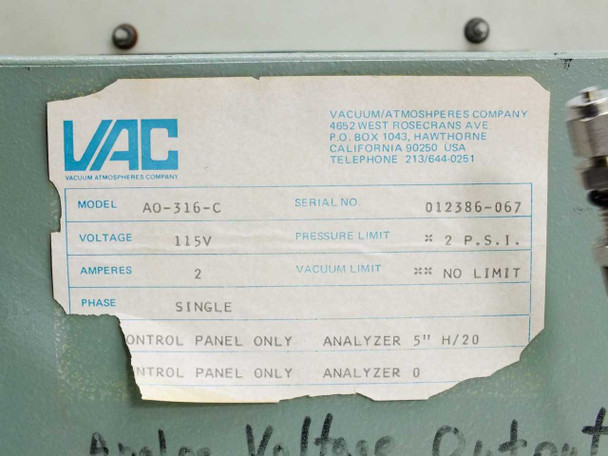

• Manufacturer: VAC — Vacuum Atmospheres Company, Hawthorne, CA
• Model: AO-316-C

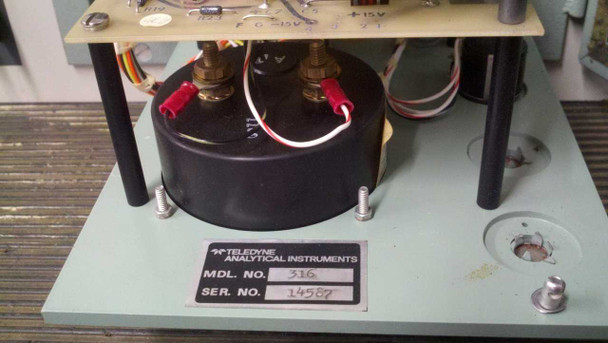

• Integrated analyzer module: Teledyne Analytical Instruments Model 316
• Supply voltage: 115V AC
• Current rating: 2 Amps
• Phase: Single Phase
• Pressure limit: 2 PSI
• Vacuum limit: No limit (unlimited)
• Measurement type: Trace oxygen concentration
• Display: Analog meter, 0–10 PPM Oxygen scale (TAI / SPI Instruments Co. movement)
• Front panel controls: POWER toggle, 2A fuse holder, red indicator terminal, SAMPLE/CALIBRATE toggle (<1PPM REF / NORMAL)
• Rear: Sample inlet port (labeled SAMPLE IN), VENT port, analog voltage output terminals (handwritten: Term. 6 = Hi, Term. 5 = Lo), internal gas tubing
• Sensor: Electrochemical oxygen fuel cell (currently expired — requires replacement)
• Form factor: Rack panel / benchtop

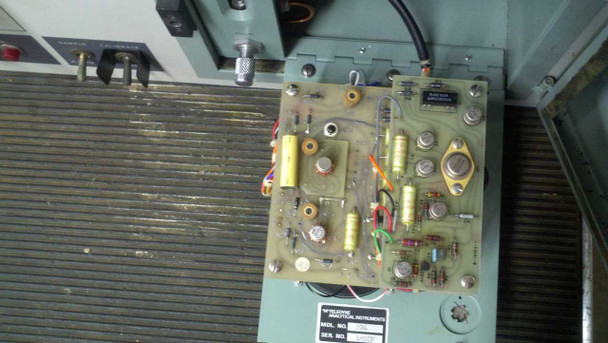

• Includes: VAC AO-316-C control/display panel with integrated Teledyne 316 meter unit and internal plumbing

Applications
