Oregon Micro Systems MD10A Microstepper Drive Controller Box 4-Axis 10

(No reviews yet) Write a Review
SKU:
32363
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

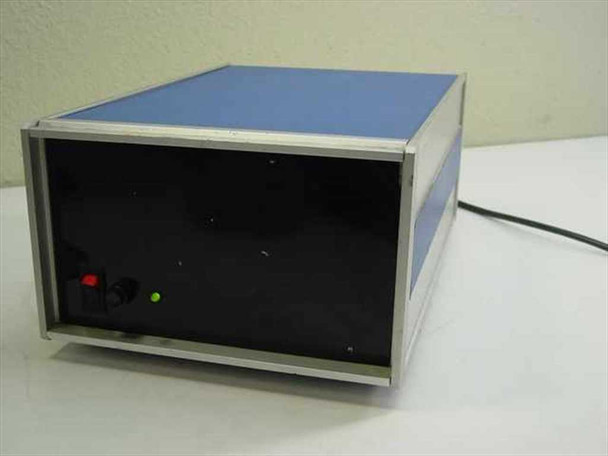

  • Oregon Micro Systems MD10A 4-axis microstepper controller box — front panel showing power switch and green LED indicator, blue and aluminum enclosure

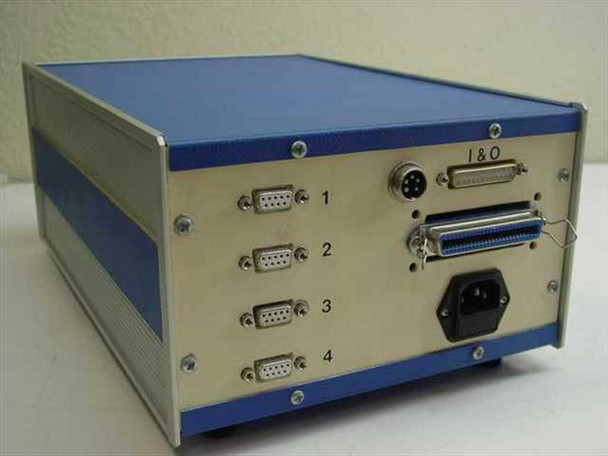

  • OMS MD10A controller box rear panel — four DB9 motor output connectors labeled 1–4, 5-pin DIN connector, Centronics 50-pin I/O port, and IEC AC power inlet

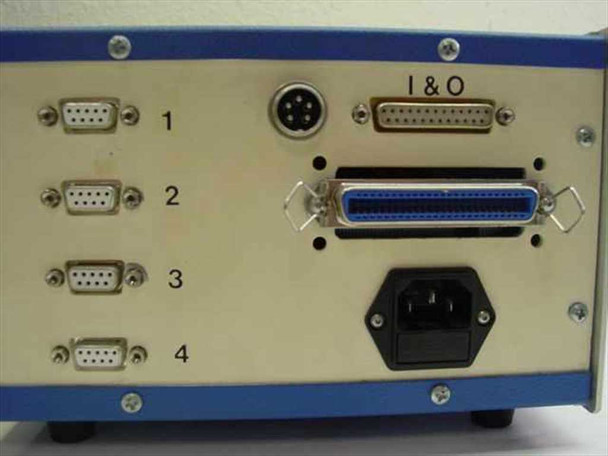

  • Close-up of OMS MD10A controller rear panel — DB9 connectors for axes 1 through 4, 5-pin DIN, Centronics parallel I/O connector, and IEC C14 power inlet detail

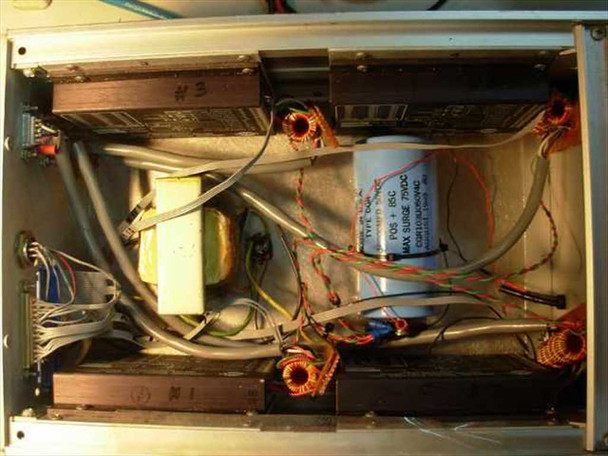

  • Interior view of MD10A controller box with top cover removed — four OMS MD10A Microstop drive modules, toroidal power transformer, large filter capacitor, and wiring harness visible

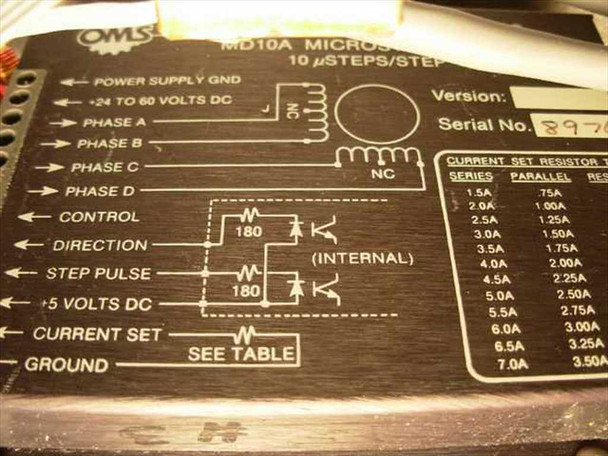

  • Close-up of Oregon Micro Systems MD10A Microstop Drive label — shows 10 µsteps/step spec, +24 to 60V DC supply range, phase wiring diagram, and current-set resistor table up to 7.0A
$250.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Oregon Micro Systems MD10A Microstepper Drive Controller Box 4-Axis 10 ustep/step

This is a custom benchtop enclosure housing four Oregon Micro Systems (OMS) MD10A Microstop microstepper drives. Each MD10A module delivers 10 microsteps per full step, providing fine positional resolution for stepper motor motion control. The four drives share a common power supply within the enclosure — including a toroidal transformer and large filter capacitor visible inside — and are individually accessible via labeled DB9 motor connectors on the rear panel.

Specifications & What's Included

  • Drive modules: 4x Oregon Micro Systems MD10A Microstop drives
  • Microstep resolution: 10 µsteps/step
  • Supply voltage: +24 to +60 Volts DC (per MD10A spec plate)
  • Logic supply: +5 Volts DC
  • Motor current range: 1.5A to 7.0A (Series or Parallel winding — set by resistor per table on drive)
  • Motor phases supported: Phase A, B, C, D
  • Control inputs per axis: Control, Direction, Step Pulse
  • Motor output connectors: 4x DB9 (male), labeled 1–4 on rear panel
  • Parallel I/O connector: Centronics 50-pin (labeled I&O on rear panel)
  • Auxiliary connector: 5-pin circular DIN on rear panel
  • AC power inlet: IEC C14 standard inlet on rear panel
  • Front panel: Power rocker switch, green power-on LED indicator
  • Enclosure: Blue/aluminum benchtop box — custom-built chassis
  • Internal power supply: Toroidal transformer + large filter capacitor (visible in interior photos)
  • Included: Enclosure with 4 MD10A drives installed — no motor cables, no control cables, no interface software

Applications

The Oregon Micro Systems MD10A is a microstepping drive module from the OMS line of motion control products, designed for use with bipolar or unipolar stepper motors in precision positioning systems. Microstepping drives like the MD10A divide each full motor step into smaller increments — 10 microsteps per step in this case — reducing vibration and improving positional resolution compared to full- or half-step drives. This type of multi-axis controller box is used in laboratory automation, CNC machine tools, optical alignment stages, semiconductor wafer handling, and other applications requiring coordinated multi-axis stepper motion. Typically controlled via a host computer sending step-pulse and direction signals over a parallel interface or dedicated motion control software. OMS products from this era were commonly found in university research labs, industrial automation cells, and scientific instrumentation setups from the 1990s through the 2000s.

Condition: For Parts or Not Working
This Oregon Micro Systems MD10A 4-Axis Microstepper Controller Box has not been powered up or tested at our facility. The required motor cables and compatible control software are not available to us, so functional testing was not possible. It is being sold as-is. The enclosure and rear-panel connectors appear intact in the photos, and the interior shows the four MD10A drive modules, transformer, and capacitor all present. Please review all photos carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Oregon Micro Systems
Model:
MD10A
MPN:
MD10A
Type:
Microstepper Motor Drive Controller
SKU:
32363
Number of Axes:
4
Microstep Resolution:
10 µsteps/step
Input Voltage:
+24 to 60 Volts DC
Motor Current Range:
1.5A to 7.0A (Series or Parallel)
Control Interface:
Step Pulse, Direction, Control inputs
Logic Supply:
+5 Volts DC
Motor Output Connectors:
4x DB9 (one per axis, labeled 1–4)
I/O Connector:
Centronics 50-pin parallel (labeled I&O)
Auxiliary Connector:
5-pin DIN circular
AC Power Inlet:
IEC C14 (standard computer power inlet)
Form Factor:
Benchtop Enclosure
Seller Notes:
Enclosure with 4 OMS MD10A drives installed — no motor cables, no control cables, no software included.
Compatible With:
Stepper motors, motion control systems requiring microstepping drives
Condition Notes:
This OMS MD10A 4-axis microstepper controller box has not been tested — required motor cables and control software are unavailable. Sold as-is. Interior components and connectors appear intact. Please view photos and contact us with questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
