Description
Uniden Personal Cable Pro Series PC4000 C Ku Band Satellite Receiver w/ Remote

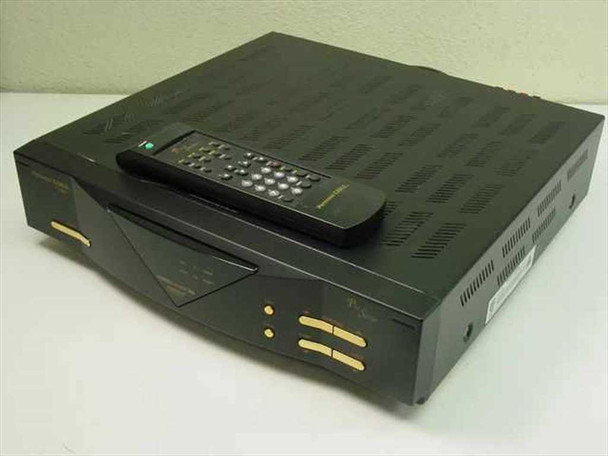

The Uniden Personal Cable Pro Series PC4000 is a C/Ku band satellite receiver designed for home satellite television reception from large-dish (BUD) systems. It integrates the VideoCipher RS descrambling module and the VideoPal order recorder, allowing users to receive and descramble authorized premium satellite programming across both C band and Ku band transponders. The front panel features a green LED channel display along with band-mode indicators (VER, HOR, C, Ku, VCRS, TIMER) and direct-access buttons for favorites, channel selection, and East/West satellite arc positioning.
Specifications & What's Included
- Model: PC4000 (Personal Cable Pro Series)
- Manufacturer: Uniden America Corporation
- Band coverage: C band and Ku band
- Descrambling system: VideoCipher RS (integrated)
- Order recorder: VideoPal integrated order recorder

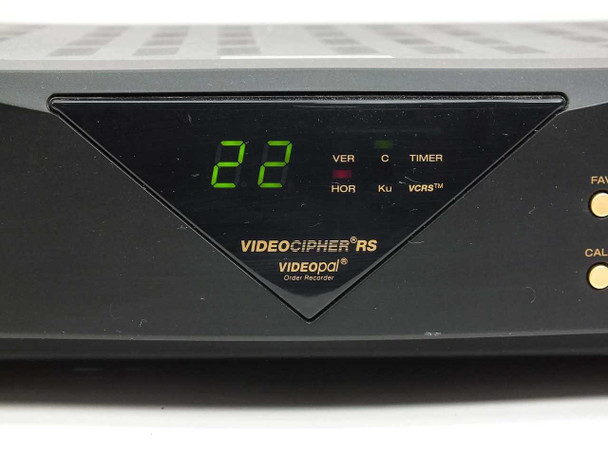

- Front panel: Green LED channel display; VER, HOR, C, Ku, VCRS, TIMER indicators
- Front controls: FAV, CALL, CHANNEL up/down, EAST, WEST buttons; Power button
- Rear panel: Dual F-type antenna/LNB inputs; multiple RCA audio/video outputs; TV out; speaker/actuator binding posts (M1, M2); DC 24V/2.5A actuator wiring terminals; GND, PULSE, DC6V, SEN, DC9/12V ports; UHF antenna pass-through; IR remote sensor port; smart card access slot
- Power: 120V AC, 60Hz, 160 Watts
- Certifications: CSA NRTL/C LR82491; FCC Part 15 (FCC ID: AMvUF046)
- Country of manufacture: China

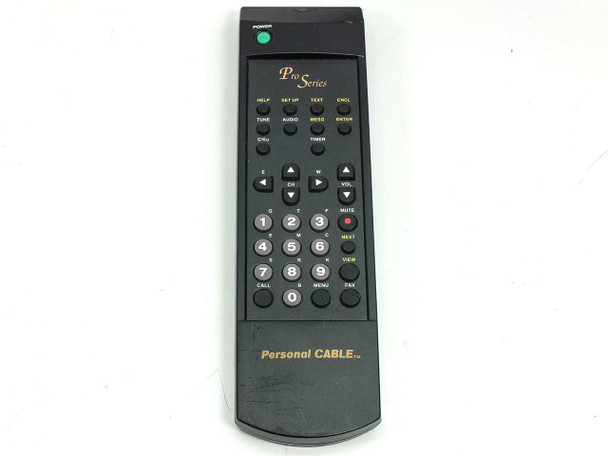

- Includes: Remote control
- Does not include: Manuals, cables, or other accessories
Applications
The Uniden Personal Cable Pro Series PC4000 belongs to the generation of home satellite receivers built for the large C-band dish (BUD — Big Ugly Dish) market that was popular in the United States through the late 1980s and into the 1990s. These systems pulled signals directly from geostationary satellites across the C band (3.7–4.2 GHz) and Ku band (11.7–12.2 GHz), giving viewers access to hundreds of unencrypted and scrambled programming feeds before the rise of small-dish direct broadcast satellite (DBS) services like DirecTV and Dish Network. The VideoCipher RS module was the industry-standard conditional access system used by HBO, Showtime, ESPN, and many other premium cable and satellite networks during that era; subscribers contracted with programming providers to enable descrambling of their specific channels. The integrated VideoPal order recorder allowed viewers to order pay-per-view events directly through the receiver. Today the PC4000 is sought by hobbyist satellite enthusiasts (FTA and legacy-dish communities), collectors of vintage consumer electronics, and those still operating large-dish home satellite systems on C/Ku band.
This Uniden Personal Cable Pro Series PC4000 C/Ku Band Satellite Receiver has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The unit includes the original remote control. No manuals or accessories are included. Some light surface wear is typical for a piece of used consumer electronics from this era. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Uniden |
Model: |
PC4000 |
MPN: |
PC4000 |
Type: |
C/Ku Band Satellite Receiver |
SKU: |
29230 |
Product Line: |
Personal Cable Pro Series |
Decryption System: |
VideoCipher RS |
Order Recorder: |
VideoPal Integrated Order Recorder |
Band: |
C Band and Ku Band |
Power Requirements: |
120V AC 60Hz, 160 Watts |
Country/Region of Manufacture: |
China |
Form Factor: |
Desktop / Tabletop |
Remote Control Included: |
Yes |
Seller Notes: |
Includes remote control. No manuals or accessories included. |
FCC ID: |
AMvUF046 |
Certifications: |
CSA NRTL/C LR82491, FCC Part 15 |
Condition Notes: |
This Uniden PC4000 C/Ku Band Satellite Receiver is in good used condition, pulled from a working environment. Includes remote. No manuals or accessories. Light surface wear typical for age. Contact us with any questions. |
