Description
Unholtz-Dickie T110 Electrodynamic Shaker MA250-110 Power Amplifier OSP-4 110/208V
Electrodynamic vibration testing system designed for environmental stress screening and MIL-STD compliance testing. Comprises shaker unit, control console, oscillator-servo-programmer, and power amplifier.
Specifications & What's Included
- T110 Shaker: 27.5" x 19" x 29" tall
- MA250-110 Control Console: 33" x 24" x 75" tall
- Power: 110V 8A 1-Phase or 208V 26A 3-Phase, 60Hz
- Includes: T110 Shaker, MA250-110 Console, OSP-4 Oscillator-Servo-Programmer, TA250A/D19634D Power Amplifier
- Manufactured: August 1991
Applications
Used for vibration testing, environmental stress screening, and MIL-STD-810 test setups. Compatible with standard vibration test fixtures. Commonly deployed in aerospace, defense, and electronics manufacturing for component and product reliability testing under controlled vibration conditions.
Condition: For Parts or Not Working

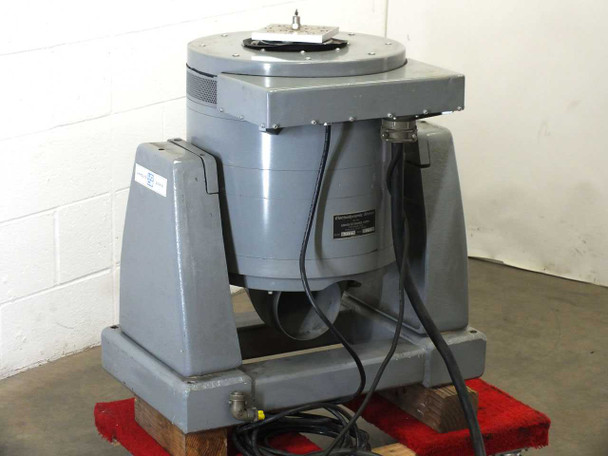

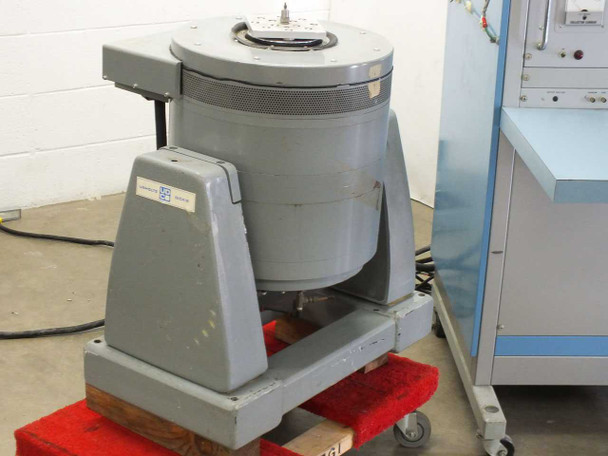

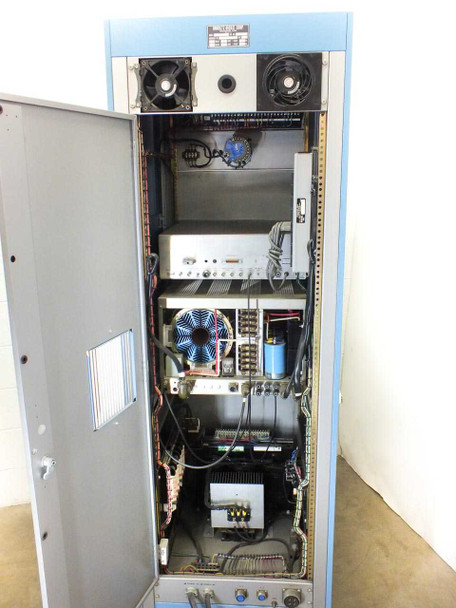

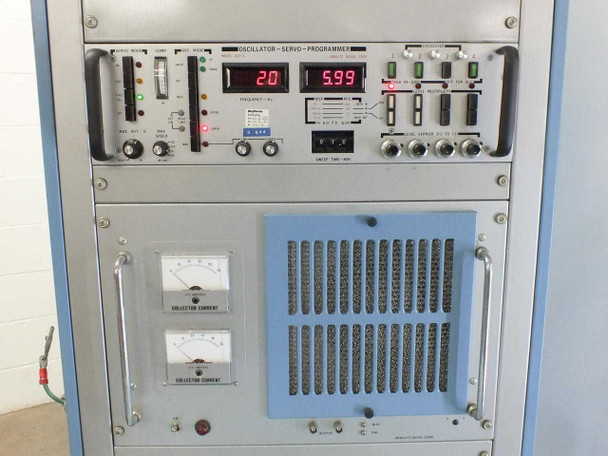

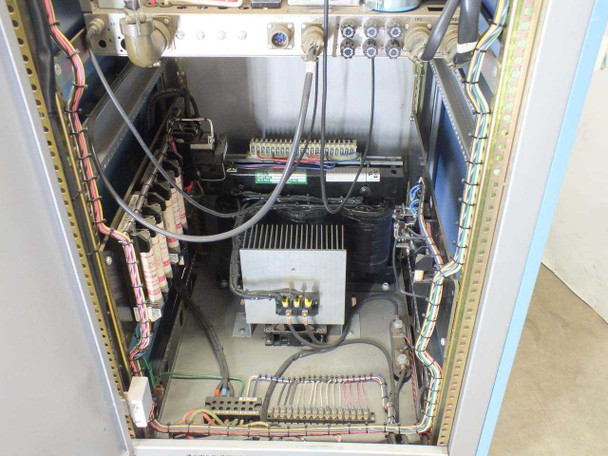

This Unholtz-Dickie T110 Electrodynamic Shaker system has been inspected and the main MA250-110 control cabinet powers on, as documented in our photo set — however, we are not familiar with the operation of this system and were unable to perform a functional test of the shaker or its control electronics. The system is therefore being sold as-is, with no guarantee of full functionality. The shaker unit itself appears to be in good physical condition with normal wear consistent with lab use. The control cabinet exterior is clean with minor scuffs; the interior wiring, transformer, capacitor bank, and amplifier modules appear intact and undamaged. The OSP-4 Oscillator-Servo-Programmer front panel is present with digital displays and indicators visible. No manuals, software, or peripherals are included with this system. Please view our complete photo set and contact us with any questions before purchasing.
This Unholtz-Dickie T110 Electrodynamic Shaker system has been inspected and the main MA250-110 control cabinet powers on, as documented in our photo set — however, we are not familiar with the operation of this system and were unable to perform a functional test of the shaker or its control electronics. The system is therefore being sold as-is, with no guarantee of full functionality. The shaker unit itself appears to be in good physical condition with normal wear consistent with lab use. The control cabinet exterior is clean with minor scuffs; the interior wiring, transformer, capacitor bank, and amplifier modules appear intact and undamaged. The OSP-4 Oscillator-Servo-Programmer front panel is present with digital displays and indicators visible. No manuals, software, or peripherals are included with this system. Please view our complete photo set and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unholtz-Dickie |
Model: |
T110 |
Secondary Model: |
MA250-110 |
MPN: |
T110 |
Type: |
Electrodynamic Vibration Shaker System |
SKU: |
52053 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes T110 shaker, MA250-110 control console, OSP-4 oscillator-servo-programmer, and TA250A/D19634D power amplifier. No manuals, software, or peripherals included. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Floor Standing Cabinet + Separate Shaker Unit |
Power Requirements: |
110V 8A 1-Phase / 208V 26A 3-Phase, 60Hz |
Input Voltage 1: |
110V AC, 8 Amps, 1-Phase, 60Hz |
Input Voltage 2: |
208V AC, 26 Amps, 3-Phase, 60Hz |
Phase: |
Single Phase and Three Phase |
Frequency: |
60 Hz |
Included Components: |
T110 Shaker, MA250-110 Console, OSP-4, TA250A/D19634D Amplifier |
Oscillator/Controller Model: |
OSP-4 Oscillator-Servo-Programmer |
Power Amplifier Model: |
TA250A / D19634D |
Control Console Model: |
MA250-110 |
Manufacture Date (Cabinet): |
August 1991 |
Application: |
Vibration Testing, Environmental Stress Screening, MIL-STD |
T110 Shaker Dimensions: |
27.5" x 19" x 29" tall |
MA250-110 Cabinet Dimensions: |
33" x 24" x 75" tall |
Compatible With: |
Standard vibration test fixtures, MIL-STD-810 test setups |
Condition Notes: |
Unholtz-Dickie T110 Electrodynamic Shaker system. Cabinet powers on; full functional test was not performed. Sold as-is — no functionality guarantee. No manuals, software, or peripherals included. Please review photos and contact us with questions. |
