Description

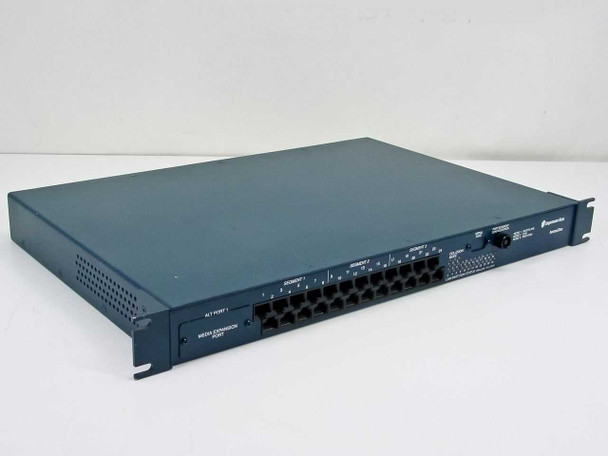

Ungermann-Bass STM24 Access/Stax 24-Port Ethernet Hub 3-Segment 1U Rackmount
24-port unmanaged Ethernet hub with three network segments. Mounts in standard 19-inch rack at 1U height. Routes traffic across 24 RJ-45 ports with per-port link and partition status indicators.
Specifications & What's Included
- 24 RJ-45 ports across 3 segments
- 1U rackmount form factor
- Unmanaged operation
- 120/240V AC power (1.0A/0.5A, 50/60Hz)

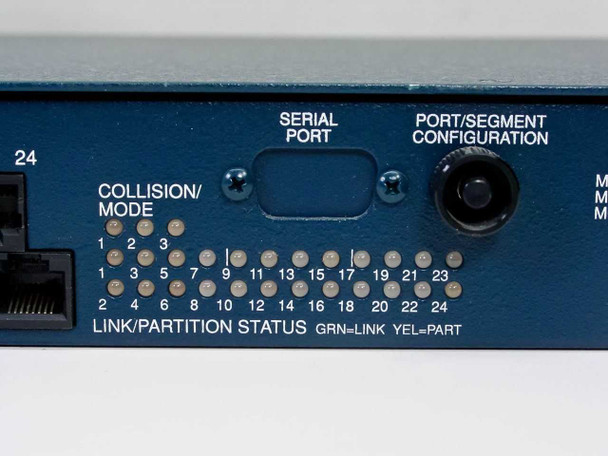

- DB-9 serial port and media expansion port on front panel

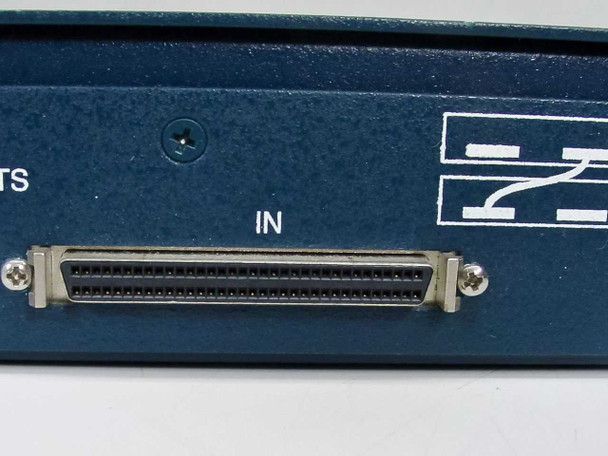

- DB-50 style expansion ports (rear)
- Rotary segment selector

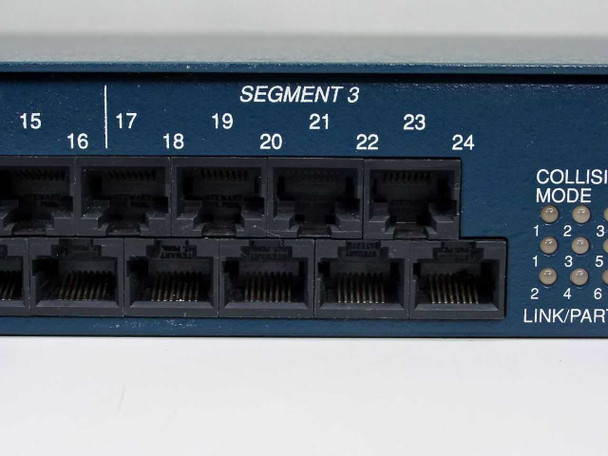

- Per-port Link/Partition and Collision/Mode LEDs
- Unit only; no cables or accessories
Applications
Ungermann-Bass hubs were used in legacy Ethernet networks of the 1990s for workgroup connectivity and network segmentation. The STM24 was deployed in corporate and institutional environments where distributed hub architecture was standard before switched networking became prevalent. The three-segment design allowed traffic isolation and network expansion within structured cabling systems.
Condition: Used
This Ungermann-Bass STM24 Access/Stax 24-Port Ethernet Hub has been inspected and is in good used condition. The chassis is clean overall with minor cosmetic wear typical of rack-pulled equipment. All 24 RJ-45 ports appear intact, the front-panel LEDs, serial port, and media expansion port are present and undamaged, and the rear expansion ports show no obvious physical damage. Please view our photo set and contact us if you have any questions.
This Ungermann-Bass STM24 Access/Stax 24-Port Ethernet Hub has been inspected and is in good used condition. The chassis is clean overall with minor cosmetic wear typical of rack-pulled equipment. All 24 RJ-45 ports appear intact, the front-panel LEDs, serial port, and media expansion port are present and undamaged, and the rear expansion ports show no obvious physical damage. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Ungermann-Bass |
Model: |
STM24 |
MPN: |
STM24 |
Type: |
Ethernet Hub |
SKU: |
11133 |
Number of Ports: |
24 |
Port Type: |
RJ-45 |
Network Segments: |
3 (Segment 1, Segment 2, Segment 3) |
Form Factor: |
1U Rackmount |
Management Type: |
Unmanaged |
Series: |
Access/Stax |
Power Requirements: |
120/240V AC, 1.0/0.5A, 50/60Hz |
Fuse Rating: |
250V, 1.5A, T (SLO-BLO) |
Serial Port: |
Yes — DB-9 serial port on front panel |
Media Expansion Port: |
Yes — front panel Media Expansion Port |
Expansion Ports: |
Yes — rear panel Expansion Ports (IN/OUT, DB-50 style) |
Alt Port: |
ALT PORT 1 on front panel |
Status Indicators: |
Per-port Link/Partition LEDs; Collision/Mode LEDs |
Port/Segment Configuration: |
Rotary selector on front panel |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only; no cables or accessories included |
Condition Notes: |
Ungermann-Bass STM24 24-Port Ethernet Hub. Inspected and in good used condition. Chassis clean with minor cosmetic wear; all ports intact. No accessories included. Please view our photos and contact us with any questions. |
