Ultratech Stepper 01-08-00081 Reticle Slider Home Sensor Cable Assembly
OEM sensor cable assembly for Ultratech Stepper photolithography equipment. This unit detects the home position of the reticle slider stage during semiconductor wafer processing.
Specifications & What's Included
- MPN: 01-08-00081
- Connector: Red 4-position multi-pin friction-lock
- Cable: Braided sleeved multi-conductor design

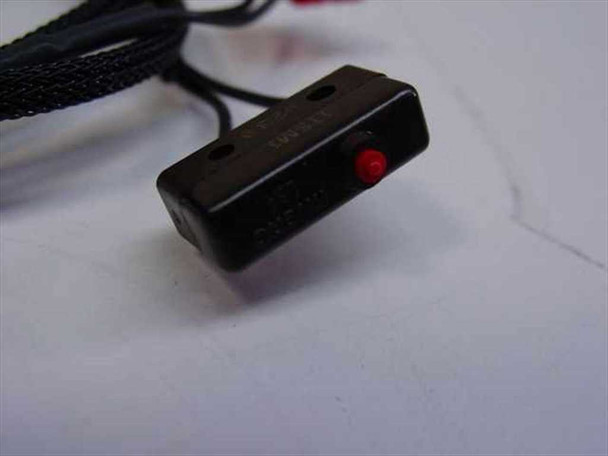

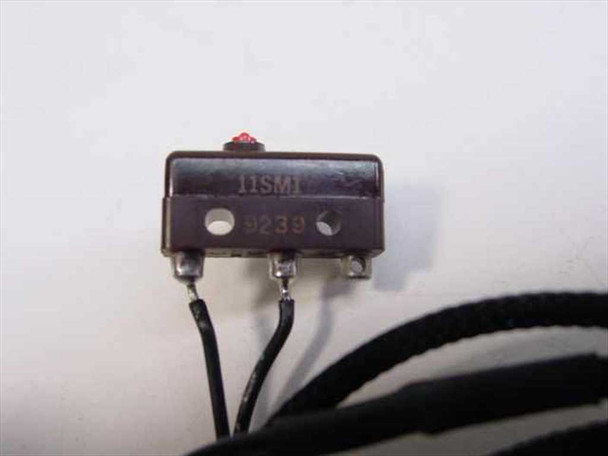

- Sensor: Microswitch / limit switch with LED indicator
- Manufactured: United States
Applications
This sensor assembly is used in Ultratech Stepper photolithography systems to establish and verify the home reference position of reticle slider mechanisms. The home sensor is a critical feedback component in semiconductor wafer stepper tools, enabling repeatable wafer positioning and alignment during photolithography processes. Compatible with Ultratech Stepper systems that use this connector and cable configuration.
Condition: Open Box
This Ultratech Stepper 01-08-00081 Reticle Slider Home Sensor Cable Assembly is new and unused. It may be out of its original packaging, but the sensor and cable assembly show no signs of use or wear. The connector and cable sleeve are intact and undamaged. Please view our photo set and contact us if you have any questions.
This Ultratech Stepper 01-08-00081 Reticle Slider Home Sensor Cable Assembly is new and unused. It may be out of its original packaging, but the sensor and cable assembly show no signs of use or wear. The connector and cable sleeve are intact and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Ultratech Stepper |
Model: |
01-08-00081 |
MPN: |
01-08-00081 |
Type: |
Reticle Slider Home Sensor Cable Assembly |
SKU: |
30148 |
Condition: |
New – Open Box |
Seller Notes: |
New open-box OEM sensor cable assembly; may be out of original packaging. |
Compatible With: |
Ultratech Stepper photolithography systems |
Application: |
Reticle stage home position sensing, semiconductor wafer steppers |
Connector Type: |
Red multi-pin friction-lock connector (4-position) |
Cable Type: |
Braided sleeved multi-conductor cable |
Sensor Type: |
Microswitch / limit switch with LED indicator |
Country/Region of Manufacture: |
United States |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
Ultratech Stepper 01-08-00081 Reticle Slider Home Sensor — new, unused, open-box. May be out of original packaging. Sensor and cable show no signs of use. Connector and sleeve intact. |
