Ultra Tek UTS 130-01 130W AT Power Supply AC115/230V w/ Cable Power Switch
The Ultra Tek UTS 130-01 is a 130-watt AT-form-factor computer power supply manufactured by Ultra Tek Devices of Bombay, India. It accepts universal AC input (115V or 230V, 50-60 Hz) and is designed for AT-standard desktop computers. A notable feature of this unit is the external cable-mounted rocker power switch, which connects via a separate harness and bracket assembly — typical of the AT power supply standard, where the power switch was wired inline rather than mounted directly on the chassis.
Specifications & What's Included
- Manufacturer: Ultra Tek Devices, Bombay, India
- Model: UTS 130-01
- Maximum Output Power: 130 Watts
- Form Factor: AT
- AC Input Voltage: 115V / 230V (switchable)
- AC Input Current: 3.2A (115V) / 1.7A (230V)
- Input Frequency: 50–60 Hz

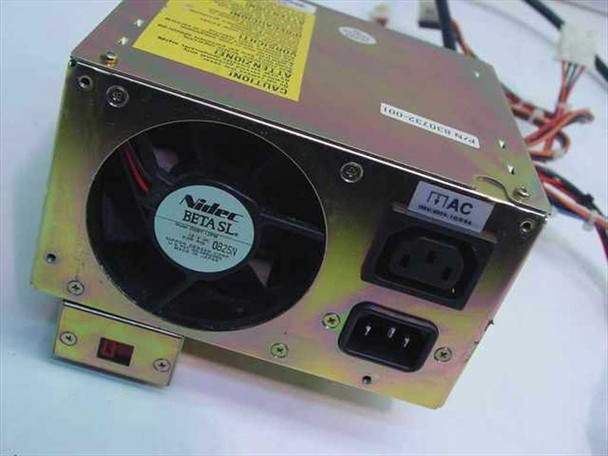

- AC Inlet: IEC C14 (3-pin) on rear panel
- Cooling: Internal Nidec Beta SL fan
- Power Switch: External cable-mounted rocker switch with bracket assembly (included)
- Output connectors: Multiple Molex power connectors on wiring harness
- Includes: Attached multi-connector wiring harness and external cable power switch assembly
Applications
The AT power supply form factor was the standard for IBM PC/XT and IBM PC/AT compatible desktop computers from the early 1980s through the mid-1990s, before ATX superseded it around 1995–1996. AT supplies like this one are used in vintage PC restoration and repair, legacy industrial computer systems, and specialty embedded AT-form-factor equipment still in service. The defining characteristic of the AT standard is the external inline power switch — the supply itself carries no integrated on/off switch; instead, the rocker switch mounted on the computer chassis interrupts the AC line via a wired harness, exactly as this unit is configured. The UTS 130-01 is a compact AT unit well suited to smaller AT-era chassis or industrial AT-compatible systems. Dual-voltage input (115V/230V) makes it usable in both North American and international configurations.
This Ultra Tek UTS 130-01 130W AT Power Supply has been tested at our facility and is in good working order. The unit comes with the attached wiring harness and external cable-mounted power switch assembly intact. The metal case shows some typical surface discoloration and light scuffing consistent with previous use, but the unit is structurally sound with no damage to the connectors or wiring. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Ultra Tek Devices |
Model: |
UTS 130-01 |
MPN: |
UTS 130-01 |
Type: |
AT Computer Power Supply |
SKU: |
22431 |
Maximum Output Power: |
130 Watts |
Form Factor: |
AT |
Input Voltage: |
AC 115V / 230V |
Input Current: |
3.2A / 1.7A |
Input Frequency: |
50-60 Hz |
Cooling: |
Internal fan (Nidec Beta SL) |
Power Switch: |
External cable-mounted rocker switch |
AC Inlet: |
IEC C14 (3-pin) |
Condition: |
Used – Inspected and Tested |
Country/Region of Manufacture: |
India |
Seller Notes: |
Includes attached wiring harness and external cable power switch assembly. |
Modular: |
No |
Compatible With: |
AT-form-factor desktop computers |
Condition Notes: |
Ultra Tek UTS 130-01 130W AT Power Supply. Tested and in working order. Includes wiring harness and external cable power switch. Case shows light surface wear typical of use. Please contact us with any questions. |
