TRW

TRW Interface Drawer F767150-1 Rack Mount 37-Pin MUX TIU Word Gen CLK

(No reviews yet) Write a Review
SKU:
15958
MPN:
F767150-1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout

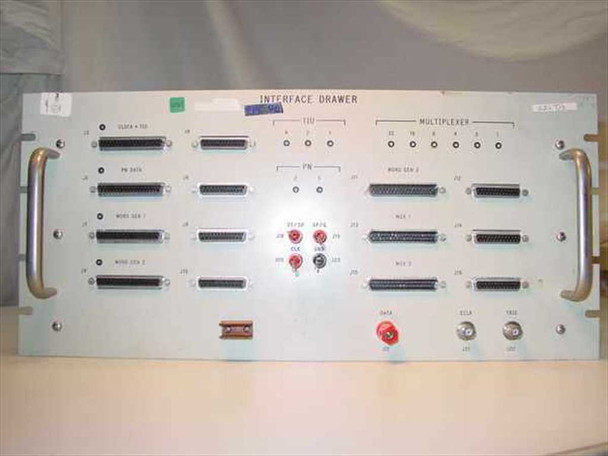

  • TRW Interface Drawer F767150-1 front panel showing INTERFACE DRAWER label, TIU and MULTIPLEXER indicator lights, multiple 37-pin D-sub connectors, and banana jack inputs
  • TRW Interface Drawer F767150-1 left side of front panel showing PN DATA (J5/J6), WORD GEN 1 (J7/J8), WORD GEN 2 (J9/J10) D-sub connectors and ST/SP SP/Q banana jacks
  • TRW Interface Drawer F767150-1 right side of front panel showing MULTIPLEXER section with WORD GEN 2 (J11/J12), MUX 1 (J13/J14), MUX 2 (J15/J16) connectors and DATA, ECLK, TRIG BNC outputs
  • TRW Interface Drawer F767150-1 rear panel showing amber indicator lamp, PROGRAM SYNC, SYNTH NO.2, SYNTH NO.1 BNC connectors, large circular SCANNER connector (J100), and AC IN IEC inlet
  • TRW Interface Drawer F767150-1 rear panel left section showing PROGRAM SYNC (J107), SYNTH NO.2 (J112), SYNTH NO.1 (J111) BNC connectors and large multi-pin SCANNER connector (J100)
  • TRW Interface Drawer F767150-1 rear panel right section showing DC/CMD/TLM DB-9 connector (J114), SYNTH NO.3 BNC (J113), part number label F767150-1 SN 002, CBI connector, and IEC AC IN (J120)
  • TRW Interface Drawer F767150-1 interior view showing populated circuit board assemblies, internal wiring harnesses, relay blocks, and two internal sub-chassis modules
  • TRW Interface Drawer F767150-1 identification label showing Code Ident 11982, TRW Electronics and Defense Sector, part number F767150-1, SN 002
$275.00
Was: $550.00
Current Stock: 1

Sold Out

Description

TRW Interface Drawer F767150-1 Rack Mount 37-Pin MUX TIU Word Gen CLK

Rack-mount interface drawer designed for signal routing and multiplexing in aerospace and defense applications. Provides clock distribution, TIU (Time Interface Unit) channels, word generation, and multiplexer signal management with front-panel indicator lights.

Specifications & What's Included

  • Model: F767150-1 | Serial: 002 | Code Ident: 11982
  • Connectors: 37-pin D-Sub, 25-pin D-Sub, BNC, multi-pin circular
  • Signal Sections: Clock+TIU, PN Data, Word Gen 1, Word Gen 2, Multiplexer
  • MUX Channels: 2 multiplexers with 32, 16, 8, 4, 2, 1 indicator lights
  • TIU Channels: 4, 2, 1 with front-panel indicators
  • Input/Output: J5–J23 signal connectors, J100–J120 rear connectors
  • Power: AC inlet (IEC, 120V)
  • Unit only; no cables or accessories included

Applications

This interface drawer type was used in aerospace test and telemetry systems for signal conditioning and routing. Typical applications include ground support equipment (GSE), flight test instrumentation, and spacecraft command/telemetry interfaces. Compatible with TRW and industry-standard avionics test platforms from the 1980s–2000s era.

Condition: Used
This TRW Interface Drawer F767150-1 has been inspected and is in good condition. The front panel is clean with no significant damage, and all D-sub connector housings appear intact. Some light surface wear consistent with prior use is visible on the front panel face and rack handles. The internal circuit boards and wiring harnesses visible from the rear appear complete and undisturbed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
TRW
Model:
F767150-1
MPN:
F767150-1
Type:
Interface Drawer
SKU:
15958
Condition:
Used – Inspected
Form Factor:
Rack Mount
Manufacturer Division:
TRW Electronics & Defense Sector
Code Ident:
11982
Serial Number (SN):
002
Connector Type:
37-Pin D-Sub, 25-Pin D-Sub, BNC, Multi-pin Circular
Signal Sections:
Clock+TIU, PN Data, Word Gen 1, Word Gen 2, Multiplexer
Multiplexer Channels:
MUX 1, MUX 2 (32, 16, 8, 4, 2, 1 indicator lights)
TIU Channels:
4, 2, 1 (indicator lights visible on front panel)
Input Connectors:
J5 PN Data, J7 Word Gen 1, J9 Word Gen 2, J13 MUX 1, J15 MUX 2
Output Connectors:
ECLK (J21), TRIG (J22), DATA (J17)
Signal Inputs:
ST/SP (J18/J19), SP/Q (J19/J23), CLK, GND (banana jacks)
Rear Connectors:
DC/CMD/TLM (DB-9, J114), SYNTH No.1 (J111), SYNTH No.2 (J112), SYNTH No.3 (J113), PROGRAM SYNC (J107), SCANNER (J100), CBI, AC IN (J120)
Power Input:
AC IN (IEC inlet, J120)
Application:
Aerospace / Defense signal interface and routing
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no cables or accessories included.
Condition Notes:
TRW Interface Drawer F767150-1 has been inspected and is in good used condition. Front panel and connectors appear intact with light surface wear. Internal boards and wiring appear complete. Please contact us with any questions.
