The Triplett 630-NA is a portable analog volt-ohm-milliammeter (VOM) built around a Type 3 suspension movement — a taut-band or suspension-type mechanism designed to reduce friction and improve low-end sensitivity compared to a conventional pivot-and-jewel movement. Made by Triplett Corporation of Bluffton, Ohio, the 630-NA is a multi-range instrument covering DC and AC voltage, DC current, and resistance across a wide span of ranges up to 6000V. Our staff has tested this specific unit and documented the results; see the handwritten test notes in the photo set.

Specifications & What's Included

• Manufacturer: Triplett Corporation, Bluffton, Ohio, USA
• Model: 630-NA, Type 3 Suspension
• Movement sensitivity (DC): 10,000–20,000 Ohms per Volt
• Movement sensitivity (AC): 5,000–10,000 Ohms per Volt
• DC Voltage ranges: 3V, 6V, 12V, 30V, 60V, 300V, 600V, 1200V, 6000V
• AC Voltage ranges: 3V, 6V, 12V, 300V, 600V, 1200V, 6000V
• DC Current ranges: 1.2 mA, 12 mA, 120 mA, 1200 mA, 12A
• Resistance ranges: ×1, ×10, ×100, ×1K, ×10K, ×100K Ohms
• Selector dial positions: DCV, ACV, Ohms, DC mA, OFF

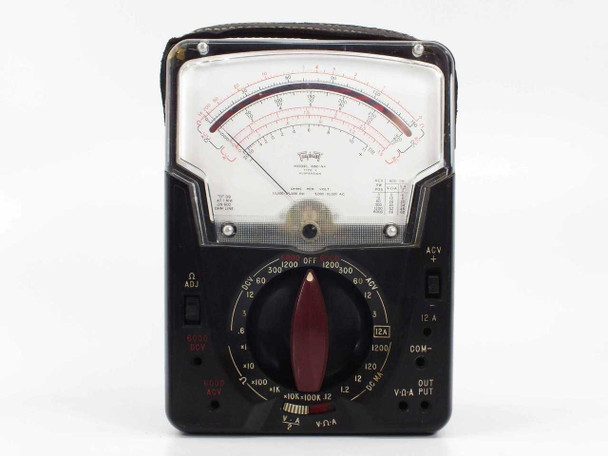

• Input terminals: 6000 DCV, 6000 ACV, 12A, COM−, OUT/PUT, V-Ω-A

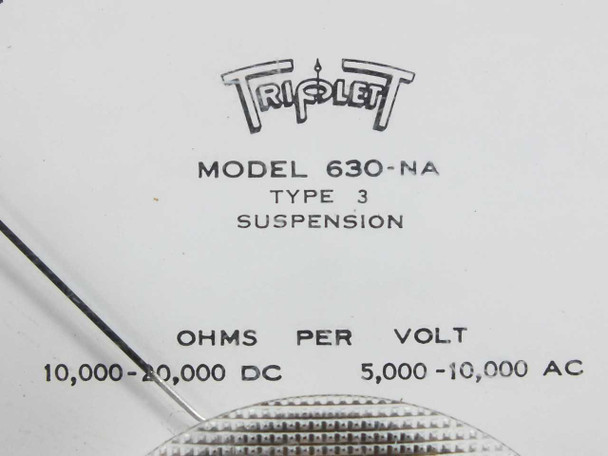

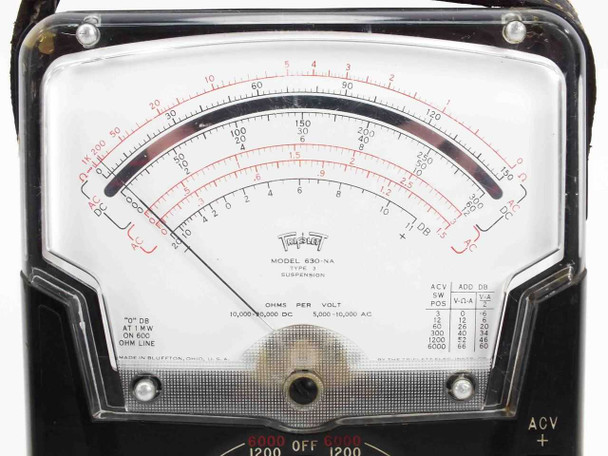

• Date code visible on meter face: 65 49-617 (indicates mid-1960s manufacture)
• Includes leatherette carry case with top handle
• 1.5V battery (for low Ohms scales): present and confirmed good by staff
• 30V battery (required for ×10K and ×100K Ohms ranges): missing — not included

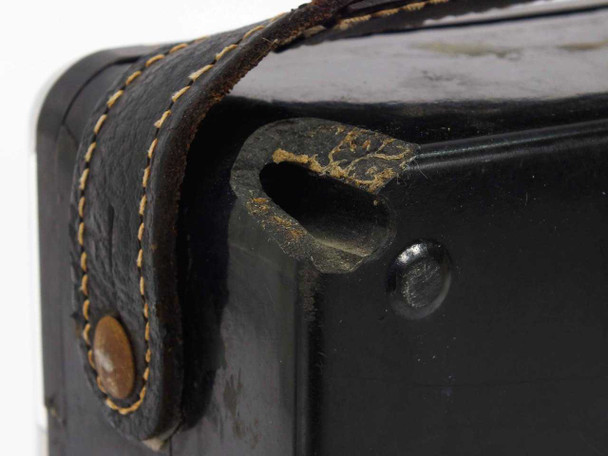

• Case condition: cracked/broken

Staff Test Results (documented — see photo set)

• Ohms ×1, ×100, ×1K: tested — Good
• Ohms ×10K, ×100K: not tested (30V battery missing)
• DC voltage scales: tested across multiple ranges — reference vs. actual readings recorded and consistent
• AC voltage scales: tested — readings documented
• DC mA ranges: tested — readings documented

Applications

The Triplett 630-NA dates from the mid-1960s, a period when Triplett was one of the leading American makers of analog test instruments for electronics service, electrical work, and laboratory use. Analog VOMs of this type were standard bench and field instruments for technicians servicing radio, television, and electronic equipment, as well as for industrial electrical troubleshooting. The Type 3 suspension movement gives this meter better sensitivity and needle stability than many contemporary pivot-and-jewel instruments, making it suitable for low-level DC measurements. Today these meters are used by vintage electronics restorers and collectors, technicians who prefer analog readouts for their intuitive needle-deflection response, and anyone working on tube-era or early solid-state equipment. The wide voltage range — up to 6000V DC — also makes it useful for high-voltage work such as tube amplifier servicing. A 30V battery (typically a Eveready No. 412 or equivalent) would be needed to restore the ×10K and ×100K resistance ranges.
