Description

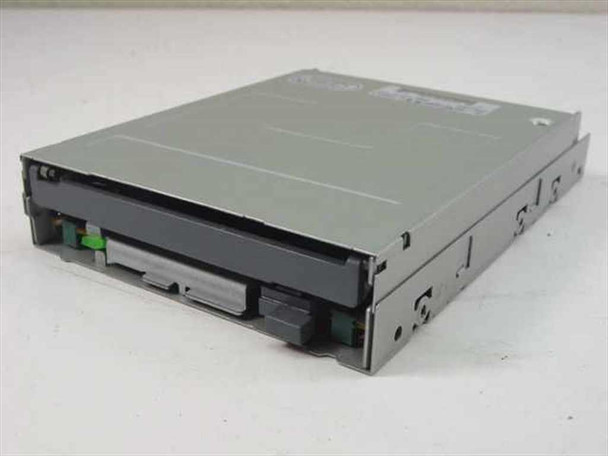

TriGem SFD-321B/LTGND 3.5 Internal Floppy Drive 1.44MB DC 5V FDD Desktop
The TriGem SFD-321B/LTGND is a 3.5-inch internal floppy disk drive (FDD) designed for standard desktop PC installations. It connects via a 34-pin ribbon data cable and a 4-pin Berg (mini) power connector, drawing DC 5V at 0.7A. The drive reads and writes 1.44MB HD 3.5-inch floppy diskettes using the standard double-sided, high-density format common to IBM-compatible PCs.
Specifications & What's Included
- Manufacturer: TriGem
- Model: SFD-321B/LTGND

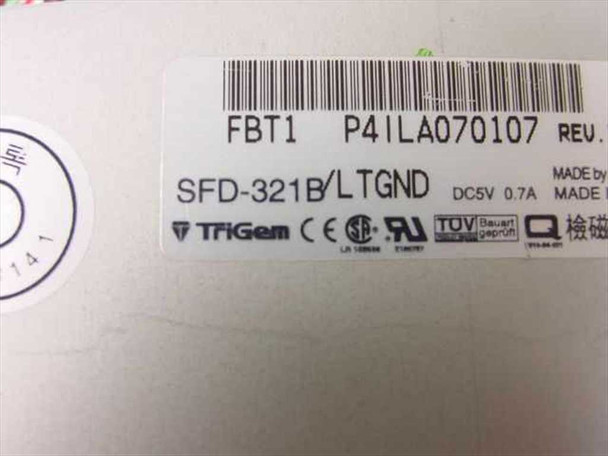

- Part Number: P4ILA070107 (FBT1)
- Drive Type: 3.5-inch Internal Floppy Disk Drive (FDD)
- Capacity: 1.44 MB (HD, Double-Sided)

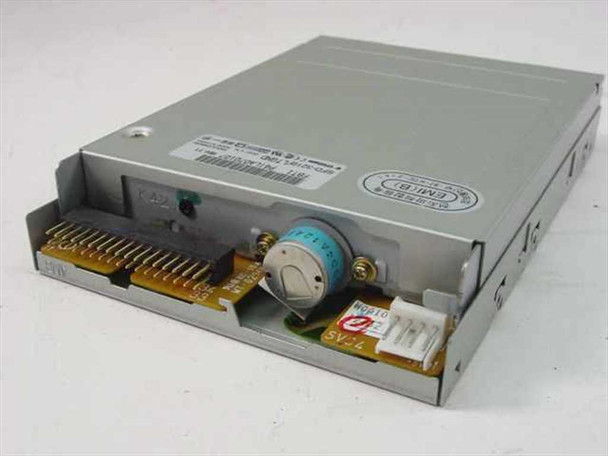

- Data Interface: 34-pin ribbon FDD connector

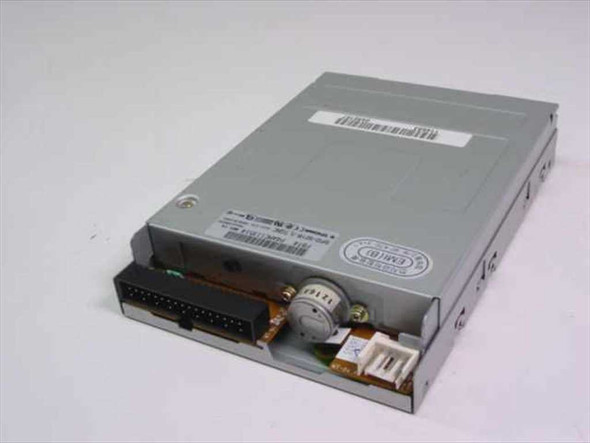

- Power Connector: 4-pin Berg (mini) connector
- Power Requirements: DC 5V, 0.7A
- Certifications: CE, UL, TUV (visible on label)
- Drive only — no ribbon cable or mounting screws included
Applications
The 3.5-inch 1.44MB internal floppy drive was the standard removable-storage medium in IBM-compatible desktop PCs from the late 1980s through the early 2000s. At their peak, these drives were fitted in virtually every consumer and business desktop, used for software distribution, OS installation, data transfer between machines, and system boot media. By the mid-2000s, floppy drives were dropped from most new PC designs as USB flash drives took over the role. Today, 3.5-inch FDDs remain in active use in legacy industrial, medical, and CNC equipment — many older machines use floppy-based firmware update or parameter-storage routines and cannot easily be retrofitted with USB alternatives. Replacement internal FDDs are consistently sought after for maintaining these systems. The SFD-321B/LTGND fits standard 3.5-inch drive bays and is compatible with any desktop motherboard that provides a 34-pin FDD header.
This TriGem SFD-321B/LTGND 3.5" internal floppy drive is in good physical condition. It was pulled from a working system and shows typical age-related wear consistent with normal use. The drive has not been bench-tested at our facility; we are selling it as-is due to its age. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
TriGem |
Model: |
SFD-321B/LTGND |
MPN: |
SFD-321B/LTGND |
Secondary Model: |
P4ILA070107 |
Type: |
Internal Floppy Disk Drive |
SKU: |
28634 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Drive only; no cables or mounting hardware included. |
Form Factor: |
3.5 Inch Internal |
Storage Capacity: |
1.44 MB |
Interface: |
34-Pin Floppy (FDD Ribbon Connector) |
Power Connector: |
4-Pin Berg (mini) Power Connector |
Power Requirements: |
DC 5V, 0.7A |
Compatible With: |
Desktop PCs with standard 34-pin FDD interface |
Certifications: |
CE, UL, TUV |
Country/Region of Manufacture: |
Korea (TriGem) |
Condition Notes: |
TriGem SFD-321B/LTGND 3.5" internal floppy drive in good physical condition. Pulled from a working system. Not bench-tested; sold as-is due to age. Please contact us with any questions. |
