Description
Triangle Biomedical TBS SHUR/MARK E22-01MWSDE Microscope Slide Labeler Extractor

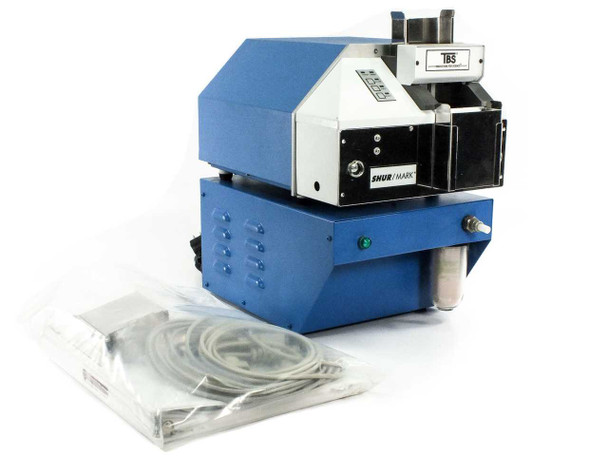

The Triangle Biomedical Sciences (TBS) SHUR/MARK E22-01MWSDE is a benchtop two-unit system combining a microscope slide labeler and a slide extractor/dust extraction unit. It automatically applies printed identification labels to glass microscope slides, then extracts the labeled slides — streamlining slide identification workflows in histology and pathology laboratories. The system is manufactured by RA LAMB of London under the TBS SHUR/MARK brand.
Specifications & What's Included
- Brand: Triangle Biomedical Sciences (TBS) / SHUR/MARK

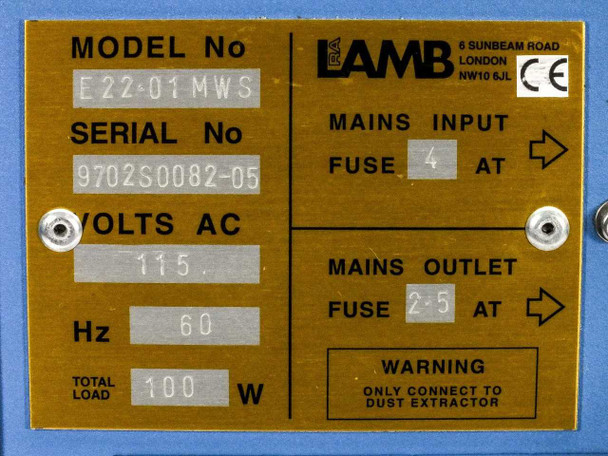

- OEM Manufacturer: RA LAMB, 6 Sunbeam Road, London NW10 6JL

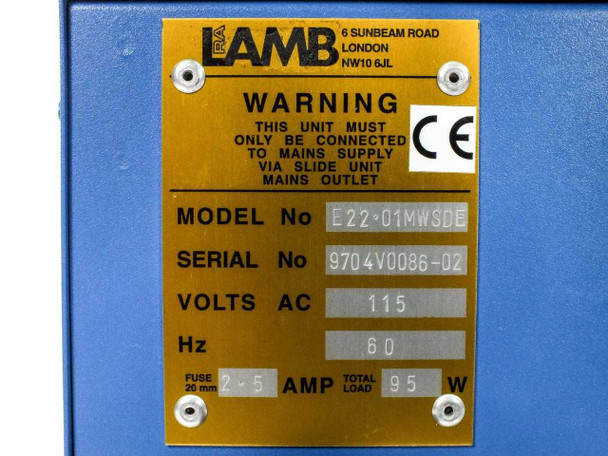

- Labeler Model: E22-01MWSDE
- Extractor Model: E22-01MWS
- Input Voltage: 115V AC, 60Hz
- Total Load – Labeler: 95W
- Total Load – Extractor: 100W
- Fuse – Labeler: 2–5A (20mm)
- Fuse – Extractor Mains Input: 4A
- Fuse – Extractor Mains Outlet: 2–5A

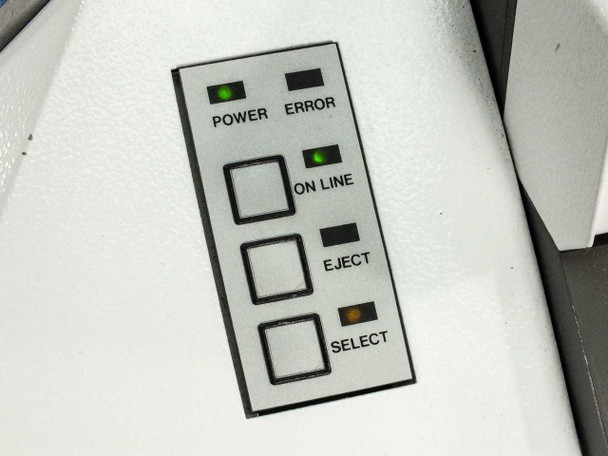

- Front-panel controls: POWER indicator, ERROR indicator, ON LINE indicator, EJECT button, SELECT button

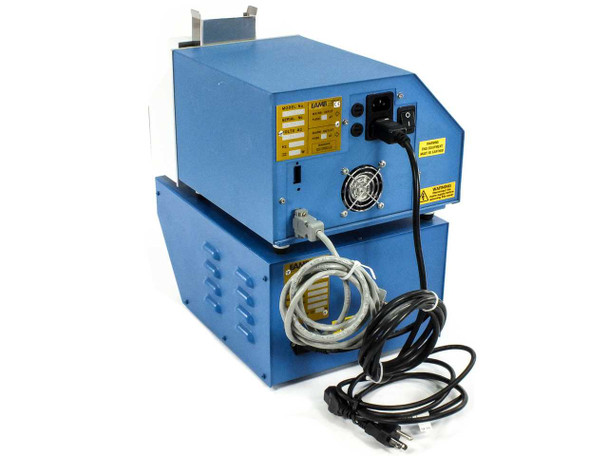

- Rear: cooling fan, IEC power inlet, mains outlet to extractor
- CE marked
- Form factor: benchtop, two-unit stacked system
- Includes: power cord, accessory cables (as shown in photos)
Applications
The SHUR/MARK slide labeling system is used in histology, pathology, and cytology laboratories to automate the identification of glass microscope slides. Accurate slide labeling is a critical step in specimen tracking — ensuring that patient tissue samples, biopsies, and diagnostic specimens are correctly identified throughout the staining, processing, and archiving workflow. Systems like the SHUR/MARK E22-01 series print and apply durable identification labels directly to the frosted or coated end of the glass slide, replacing error-prone manual hand-labeling. The integrated extractor unit manages dust and debris generated during the labeling process, keeping the work area clean and protecting the labeling mechanism. These systems are found in hospital pathology departments, reference labs, veterinary diagnostic labs, and university research settings that process high slide volumes.

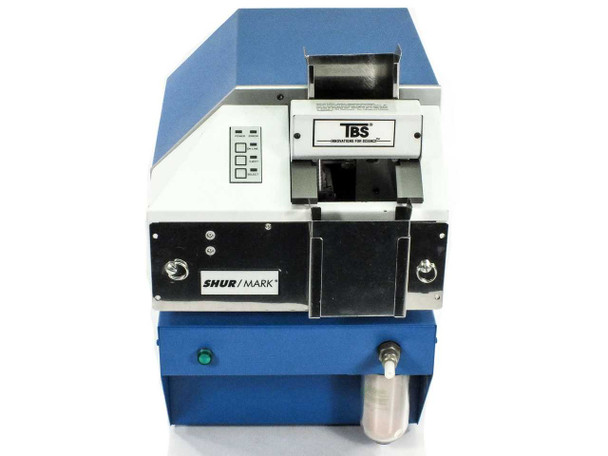

This Triangle Biomedical Sciences SHUR/MARK E22-01MWSDE Microscope Slide Labeler and Extractor has been inspected and appears to be in good used condition. The two-unit system — labeler and extractor — shows normal cosmetic wear consistent with lab use; the blue metal housing is intact with no notable damage. The unit was photographed with the ON LINE indicator illuminated. It comes with the power cord and accessory cables as pictured. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Triangle Biomedical Sciences (TBS) |
Model: |
E22-01MWSDE |
MPN: |
E22-01MWSDE |
Secondary Model: |
E22-01MWS |
Type: |
Microscope Slide Labeler and Extractor |
Product Line: |
SHUR/MARK |
OEM Manufacturer: |
RA LAMB, London |
SKU: |
51618 |
Power Requirements: |
115V AC, 60Hz |
Total Load (Labeler): |
95W |
Total Load (Extractor): |
100W |
Fuse – Labeler: |
2–5 A (20mm) |
Fuse – Extractor Mains Input: |
4 A |
Fuse – Extractor Mains Outlet: |
2–5 A |
Number of Units: |
2 (labeler + extractor) |
Application: |
Histology, Pathology, Slide Identification |
Standards: |
CE Marked |
Form Factor: |
Benchtop |
Country/Region of Manufacture: |
United Kingdom |
Seller Notes: |
Includes power cord and accessory cables as shown. |
Compatible With: |
Standard microscope glass slides (histology/pathology) |
Condition Notes: |
This TBS SHUR/MARK E22-01MWSDE Microscope Slide Labeler & Extractor has been inspected and is in good used condition. Includes power cord and accessory cables. Normal cosmetic wear. Please view photos and contact us with any questions. |
