Transformer Engineering Corp

Transformer Engineering TEC-180A TR-17573 3-Phase 250uH 20A Inductor 60Hz

(No reviews yet) Write a Review
SKU:
43918
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
16.00 LBS
Shipping:
Calculated at Checkout
  • Transformer Engineering TEC-180A three-phase 250uH inductor front view showing three wound cores with A1 A2 B1 B2 C1 C2 ring-lug terminals and label
  • Transformer Engineering TEC-180A three-phase inductor rear three-quarter view showing three wound coil sections on steel mounting base
  • Close-up of Transformer Engineering Corporation label reading 250uH 3Ph Inductor 20 Amps 60Hz + Harmonics TR-17573 TEC-180A Cleveland Ohio
  • Top-down close-up of Transformer Engineering TEC-180A inductor showing six ring-lug terminal connections labeled A1 A2 B1 B2 C1 C2

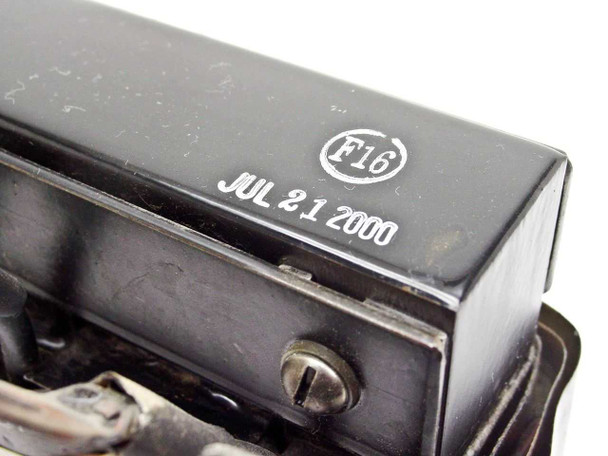

  • Bottom corner of Transformer Engineering TEC-180A inductor showing manufacture date stamp JUL 21 2000 and F16 inspection mark
$120.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Transformer Engineering TEC-180A TR-17573 3-Phase 250uH 20A Inductor 60Hz

Three-phase line inductor (AC line reactor) designed for 60 Hz power systems. Provides 250 microhenries inductance per phase at 20 amps per phase to reduce harmonic distortion and limit inrush current in industrial applications.

Specifications & What's Included

  • Model: TEC-180A (MPN: TR-17573)
  • Type: Three-phase line inductor / AC line reactor
  • Inductance: 250 uH per phase
  • Current rating: 20 amps per phase
  • Frequency: 60 Hz + harmonics
  • Configuration: 3 independent wound sections
  • Terminals: Ring lug / eyelet (phases A1, A2, B1, B2, C1, C2)
  • Form factor: Open frame / chassis mount
  • Manufactured: July 2000, Cleveland, Ohio
  • Unit only; no accessories included

Applications

Line reactors are used in three-phase power systems to suppress harmonic currents, reduce voltage distortion, and control inrush current during motor starting or equipment energization. Common in industrial VFD installations, power distribution panels, and machinery control systems where transient protection is required. This unit was historically used in industrial or telecom facilities requiring harmonic mitigation on 60 Hz three-phase power.

Condition: Used
This Transformer Engineering TEC-180A three-phase 250uH inductor has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The three wound cores show typical age-related darkening and slight surface wear to the tape wrapping consistent with industrial service, and the ring-lug terminals show oxidation typical of older copper hardware. The steel mounting base is intact with no visible cracks or damage. The label is still present and fully legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Transformer Engineering Corporation
Model:
TEC-180A
MPN:
TR-17573
Secondary Model:
TR-17573
Type:
Three-Phase Line Inductor / AC Line Reactor
SKU:
43918
Inductance per Phase:
250 uH
Current Rating:
20 Amps per phase
Number of Phases:
Three Phase
Frequency:
60 Hz + Harmonics
Number of Sections:
3 independent wound sections
Terminal Type:
Ring lug / eyelet terminals
Phase Terminals:
A1, A2, B1, B2, C1, C2
Manufacture Date:
July 21, 2000
Country/Region of Manufacture:
United States
Manufacturer Location:
Cleveland, Ohio
Form Factor:
Open frame / chassis mount
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories. Inspected, pulled from working environment.
Condition Notes:
Transformer Engineering TEC-180A 3-phase 250uH 20A inductor. Inspected, in good used condition. Pulled from a working environment. Cores show age wear; ring-lug terminals intact. Label legible.
View AllClose
