Traid Corp.

Traid Corp 1000-B 16mm Pulse Cine Data Recording Camera 1/32 Shutter Speed

(No reviews yet) Write a Review
SKU:
41986
MPN:
1000-B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

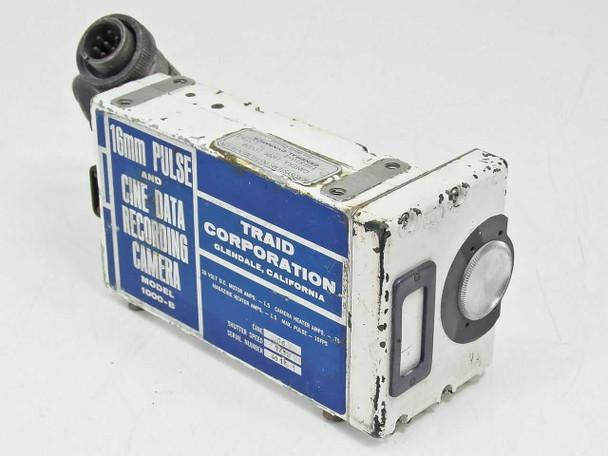

  • Traid Corp 1000-B 16mm Pulse and Cine Data Recording Camera – front/side panel view showing blue label and MIL-spec connector cable

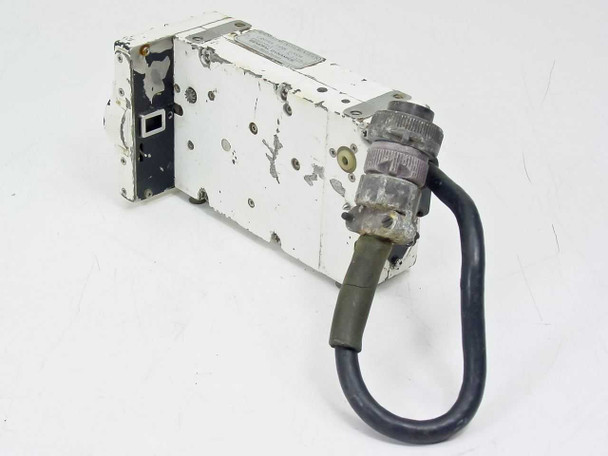

  • Traid Corp 1000-B 16mm Camera – rear/side view showing heavily worn white painted housing and MIL-spec circular connector with cable

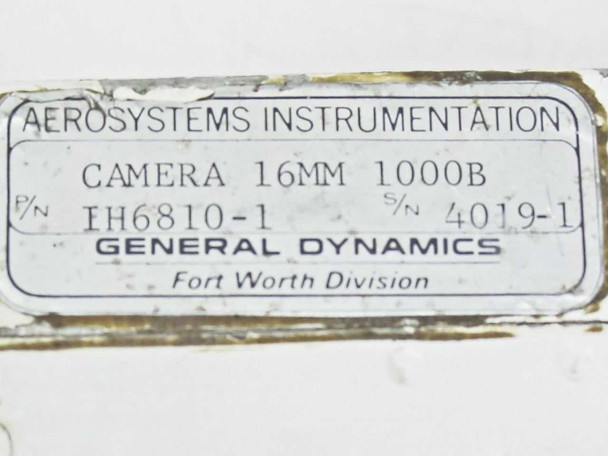

  • General Dynamics Aerosystems Instrumentation label on Traid 1000-B Camera – P/N IH6810-1, S/N 4019-1, Fort Worth Division
  • Traid Corp 1000-B close-up of blue data plate showing Cine 16, Shutter Speed 1/32, Serial Number 4019-1, magazine heater amps 1.5 max
  • Traid Corp 1000-B 16mm Camera – side view showing film gate aperture opening and drive gear mechanism with heavy paint loss
  • Traid Corp 1000-B – end panel view showing rectangular film port opening and large knurled adjustment/lens knob with attached cable
  • Traid Corp 1000-B – top/end view showing film transport mechanism, film guide shoe, and large circular film magazine port opening
  • Traid Corp 1000-B – close-up of MIL-spec circular multi-pin connector showing 6-pin male insert, cracked collar, and attached cable
$300.00
Was: $600.00
Current Stock: 1

Sold Out

Description

Traid Corp 1000-B 16mm Pulse Cine Data Recording Camera 1/32 Shutter Speed

16mm pulse and cine data recording camera designed for aerosystems instrumentation and telemetry applications. Captures high-speed motion data on 16mm film for aerospace and defense testing environments.

Specifications & What's Included

  • Model: 1000-B (P/N IH6810-1)
  • Film Format: 16mm
  • Cine Speed: 16 fps
  • Shutter Speed: 1/32
  • Magazine Heater: 1.5 A max
  • Connector: MIL-spec circular multi-pin
  • Includes attached MIL-spec cable and connector
  • No film magazine included

Applications

16mm pulse cameras were standard equipment in aerospace data acquisition systems for recording flight test data, structural response, and instrumentation readouts. Used by defense contractors including General Dynamics Fort Worth Division for high-speed documentation during weapons system and aircraft testing. Integrated with telemetry and on-board instrumentation packages to provide synchronized visual records of test parameters.

Condition: Used
This Traid Corp 1000-B 16mm Pulse and Cine Data Recording Camera was pulled from a working environment where it was in active use. The housing shows significant wear consistent with its age and service history — paint is chipped and worn across most surfaces, with areas of bare metal visible on multiple faces. The film gate aperture and drive gear are present and visible. The attached MIL-spec circular multi-pin connector shows wear and has a cracked outer collar. No film magazine is present. The General Dynamics Aerosystems Instrumentation label is intact and legible (P/N IH6810-1, S/N 4019-1). Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Traid Corporation
Model:
1000-B
MPN:
IH6810-1
Secondary Model:
IH6810-1
SKU:
41986
Type:
16mm Pulse and Cine Data Recording Camera
Film Format:
16mm
Shutter Speed:
1/32
Cine Speed:
16 fps
Magazine Heater Amps:
1.5 A max
Connector Type:
MIL-spec circular multi-pin connector
Application:
Aerosystems Instrumentation, Data Recording
Compatible With / Used By:
General Dynamics Fort Worth Division
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes attached MIL-spec cable and connector. No film magazine present.
Form Factor:
Handheld / Portable
Condition Notes:
Traid Corp 1000-B 16mm Pulse Cine Data Recording Camera pulled from a working environment. Housing shows heavy paint wear and chipping. MIL-spec connector has cracked collar. No film magazine. P/N IH6810-1. Please see photos.
