Description
TPI MSQK-2574RO Oscilloscope Passive Probe X10 M12X10B M20X10B M30X10B
Passive oscilloscope probe with 10x attenuation for general-purpose signal measurement and circuit probing. Uses a spring-loaded pin tip and BNC connector for connection to oscilloscope input channels.
Specifications & What's Included
- Brand: TPI
- Model: MSQK-2574RO
- Type: Oscilloscope Passive Probe
- Attenuation: 10x (X10)
- Connector: BNC

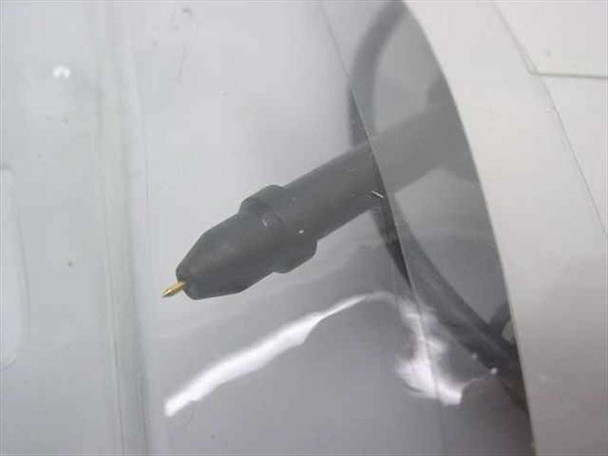

- Tip Style: Spring-loaded pin
- Compatible with M12X10B, M20X10B, M30X10B and APB variants

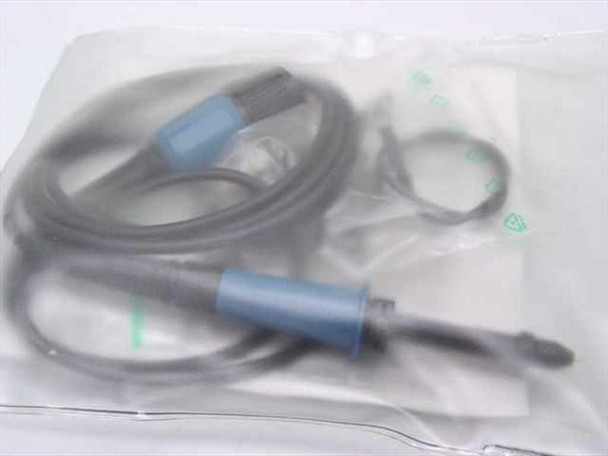

- Includes ground lead and accessory ring
Applications
Passive probes are used for routine oscilloscope measurements in electronics servicing, troubleshooting, and circuit testing. The 10x attenuation ratio reduces loading on the circuit under test and extends the usable frequency range. These probes were common in industrial test labs, telecom installations, and field service work. Suitable for general-purpose analog signal observation and waveform capture across a range of test instruments.
This TPI MSQK-2574RO Oscilloscope Passive Probe X10 has been inspected and is in good condition. The probe appears to be in clean shape with no notable damage to the cable, probe body, or tip. It comes with the ground lead and accessory ring as visible in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
TPI |
Model: |
MSQK-2574RO |
MPN: |
MSQK-2574RO |
Type: |
Oscilloscope Passive Probe |
Attenuation: |
10x (X10) |
Compatible Type Nos.: |
M12X10B, M20X10B, M30X10B |
Compatible Type Nos. 2: |
M12X10APB, M20X10APB, M30X10APB |
Probe Style: |
Passive |
Connector Type: |
BNC |
Tip Type: |
Spring-loaded pin tip |
Form Factor: |
Handheld |
SKU: |
31642 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Probe with ground lead and accessory ring included in original bag |
Application: |
Oscilloscope signal measurement and probing |
Condition Notes: |
TPI MSQK-2574RO X10 Oscilloscope Passive Probe. Inspected and in good used condition. Cable, probe body, and tip are clean with no notable damage. Ground lead and accessory ring included. |
