Description
Toshiba PA3315U-2PRP Tablet Multi Dock II Satellite R10 Tecra M4 Portege M200

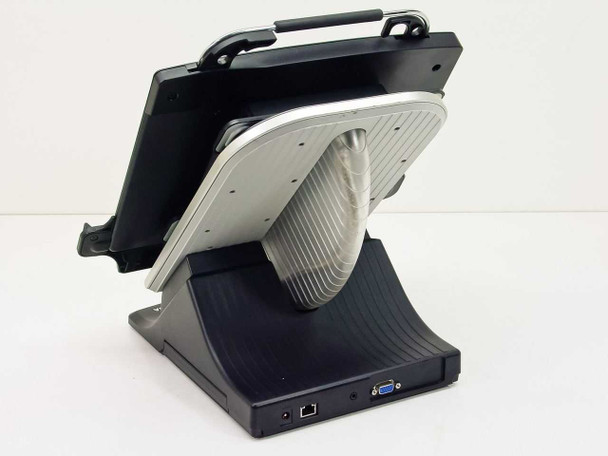

The Toshiba PA3315U-2PRP is the Tablet Multi Dock II designed for Toshiba's early-2000s convertible tablet PCs. It provides a stable desktop stand with a full complement of expansion ports, allowing a docked tablet to function like a conventional laptop or desktop workstation — adding VGA, wired LAN, USB, and audio connectivity through a single proprietary docking connector. The cradle includes a carry handle and a two-position latch system to accommodate multiple compatible models.
Specifications & What's Included
- Model: PA3315U-2PRP
- Product Name: Tablet Multi Dock II

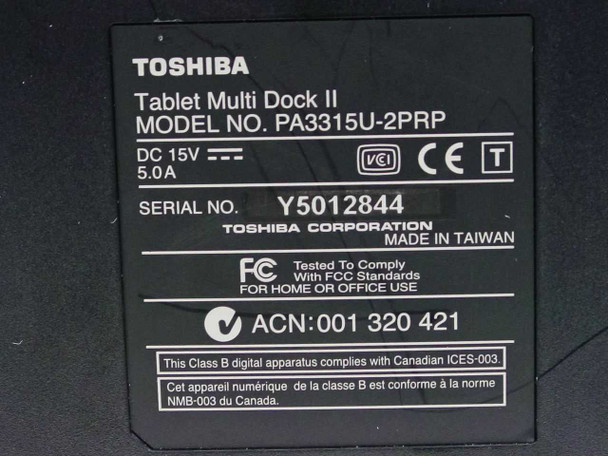

- Power Input: DC 15V, 5.0A (AC adapter not included)

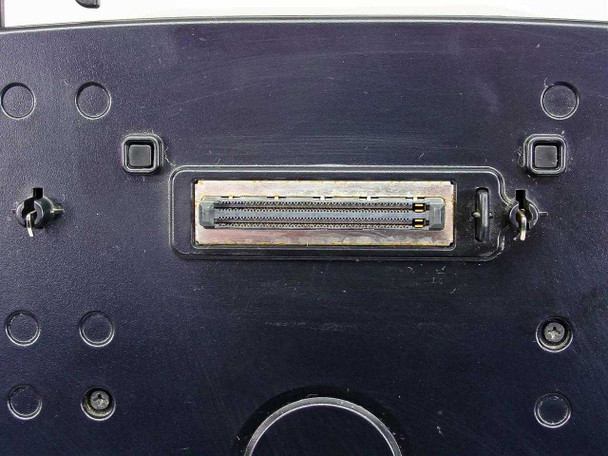

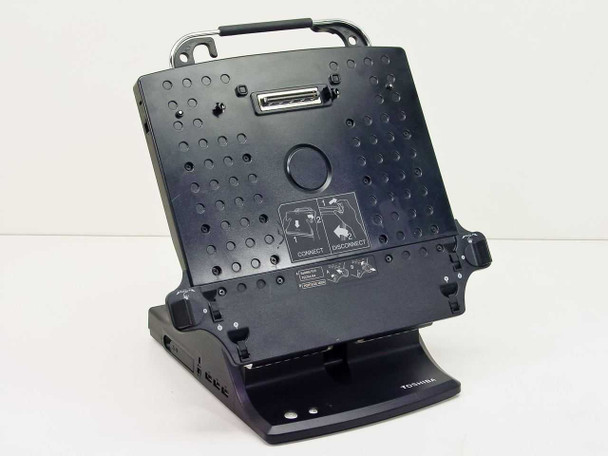

- Docking Connector: Proprietary Toshiba tablet connector (top of cradle platform)
- VGA port (DB-15, for external monitor)
- RJ-45 LAN port (10/100 Ethernet)

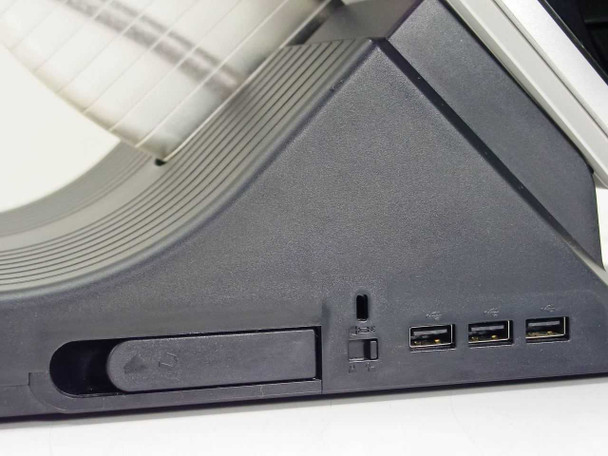

- 3x USB ports
- 3.5mm audio jack
- DC power jack

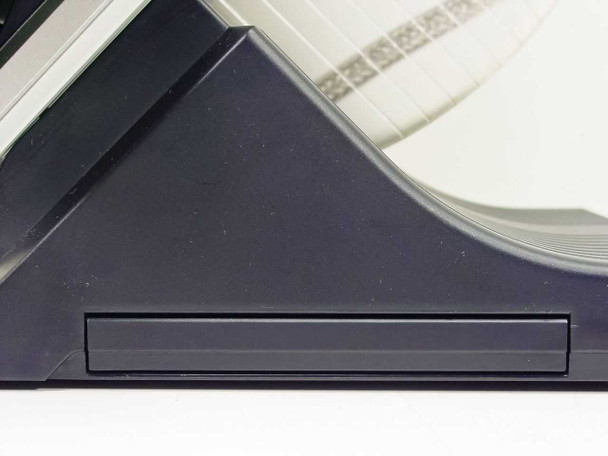

- SmartCard or PC Card slot (visible on side panel)

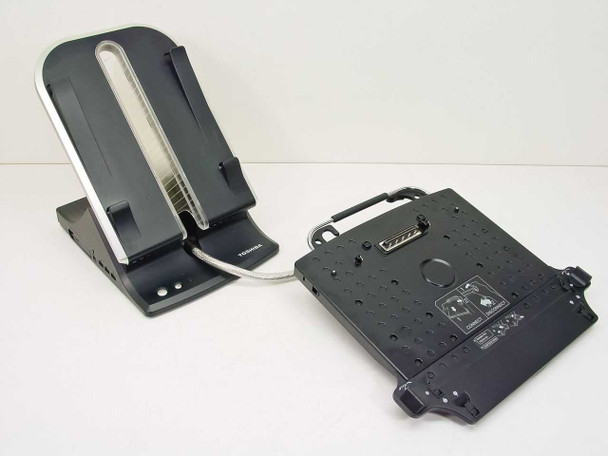

- Adjustable-angle stand with integrated carry handle

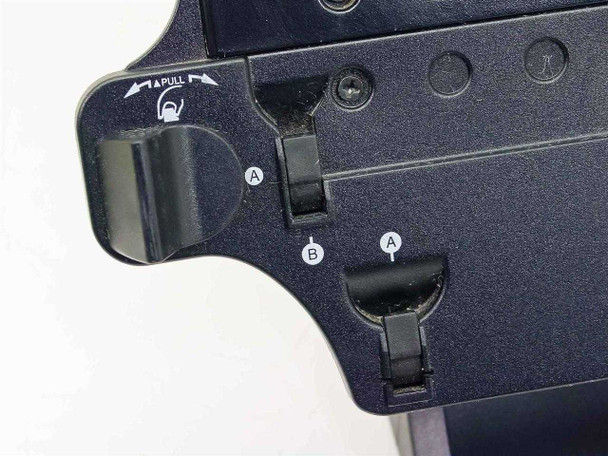

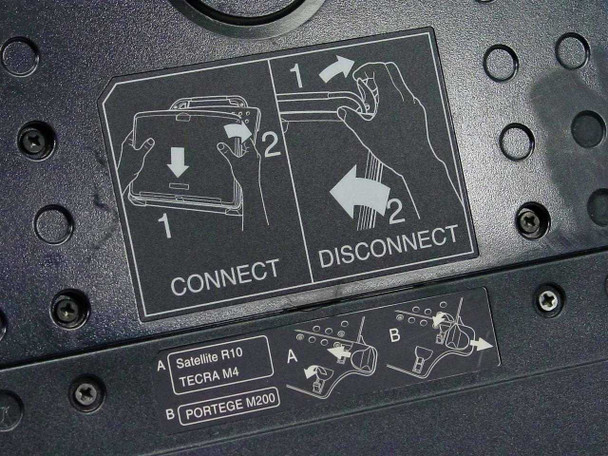

- Two-position latch (Position A: Satellite R10 / Tecra M4; Position B: Portege M200)

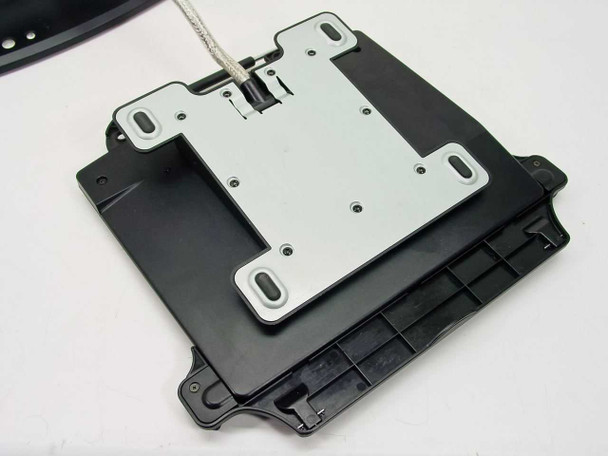

- VESA-compatible mounting plate on cradle underside
- Made in Taiwan
- Dock unit only — no AC adapter included
Applications
The Tablet Multi Dock II was designed for Toshiba convertible tablet PCs from the mid-2000s, specifically the Satellite R10, Tecra M4, and Portege M200. These docking stations let users drop a tablet into a fixed desk setup and instantly gain wired network access, an external monitor output, additional USB ports, and audio — without connecting individual cables each time. They were commonly used in corporate and field-service environments where a tablet needed to function as a full workstation at a desk between mobile deployments. The stand holds the tablet at a fixed angle suited for touch or stylus input, and the carry handle allows the entire cradle assembly to be moved easily. The VESA-pattern mounting plate on the back of the cradle can also be used to attach the dock to an arm or wall mount.
This Toshiba PA3315U-2PRP Tablet Multi Dock II has not been powered or tested at our facility, as no AC adapter was available. It has been visually inspected and appears to be in good physical condition with no obvious damage. All visible ports and connectors look intact. No AC adapter is included with this dock. Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Toshiba |
Model: |
PA3315U-2PRP |
MPN: |
PA3315U-2PRP |
Type: |
Tablet Docking Station |
SKU: |
39031 |
Compatible With 1: |
Toshiba Satellite R10 |
Compatible With 2: |
Toshiba Tecra M4 |
Compatible With 3: |
Toshiba Portege M200 |
Power Requirements: |
DC 15V, 5.0A (AC adapter not included) |
Ports: |
VGA, RJ-45 LAN, 3x USB, 3.5mm audio, DC power jack |
Interface/Connector: |
Proprietary tablet docking connector |
Form Factor: |
Desktop Stand / Docking Station |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Dock only — no AC adapter included. |
Condition Notes: |
This Toshiba PA3315U-2PRP Tablet Multi Dock II has not been tested — no AC adapter was available. Visually inspected; appears in good physical condition with intact ports. No AC adapter included. Please view photos and contact us with questions. |
