Description
Toshiba PA3201U-1ACA AC Adapter 15V 5A 75W Laptop Power Supply Barrel Plug
The Toshiba PA3201U-1ACA is a 75-watt external AC adapter for a wide range of Toshiba Satellite, Satellite Pro, Portege, and Tecra portable computers. It accepts universal input voltage (100–240V AC) so it works on both domestic and international power, and delivers a regulated 15V DC / 5A output via a barrel-tip DC connector. This unit is a direct replacement for PA3083U-1ACA and PA3283U-1ACA.
Specifications & What's Included

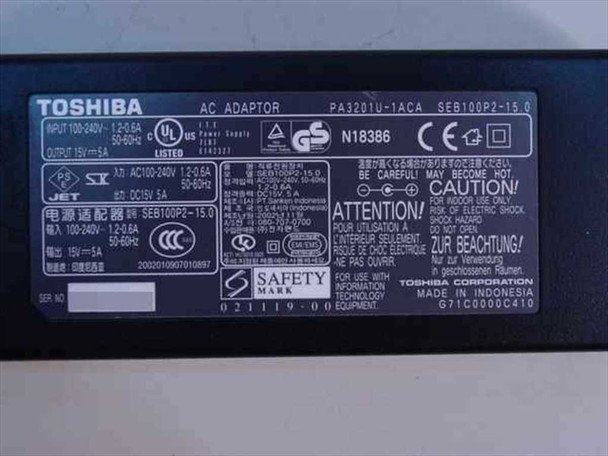

- Model: PA3201U-1ACA (also marked SEB100P2-15.0)
- Replaces: PA3083U-1ACA, PA3283U-1ACA
- Input: 100–240V AC, 1.2–0.6A, 50–60Hz (universal)
- Output: 15V DC, 5A
- Power rating: 75W

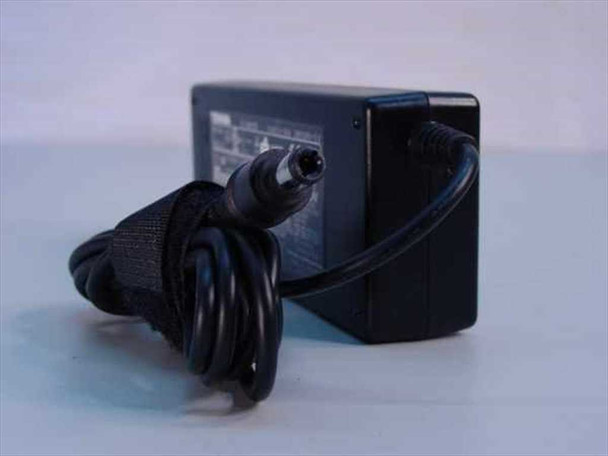

- DC connector: barrel plug
- AC inlet: IEC C8 figure-8 connector
- Manufactured in Indonesia by Toshiba Corporation
- Certifications: UL Listed, GS, CE, CCC, Safety Mark (N18386)
- Includes: AC power cord
- No manual or peripherals included
Compatible Toshiba Models
- Satellite: 1400/1405, 1410/1415, 1800/1805, 2400/2405, 2410/2415, 5005, 5105, A10/A15, M20, M30/M35
- Satellite Pro: 6000, 6100, M10, M15
- Portege: 3500/3505, 4000/4005, 4010, M100, M200/M205
- Tecra: 9000, 9100, A1, M1, S1, TE2000, TE2100, TE2300
Applications
The PA3201U-1ACA is a standard OEM-style power brick for mid-2000s Toshiba laptop lines. Universal AC input makes it suitable for use anywhere in the world with the appropriate plug adapter, which was a selling point for business travelers using Portege and Tecra models. It serves as a spare adapter for home or office, or as a direct drop-in replacement when an original adapter has failed. The PA3201U-1ACA designation covers several Toshiba part numbers across the same 15V/5A platform, and it remains a common replacement part for anyone still running these Toshiba laptop models.
This Toshiba PA3201U-1ACA 75W laptop AC adapter was pulled from a working environment and appears to be in good used condition. The unit and included power cord show normal wear consistent with prior use. No manual or peripherals are included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Toshiba |
Model: |
PA3201U-1ACA |
MPN: |
PA3201U-1ACA |
Secondary Model: |
SEB100P2-15.0 |
Type: |
Laptop AC Adapter / Power Supply |
SKU: |
15149 |
Input Voltage: |
100-240V AC, 50-60Hz (Universal) |
Output Voltage: |
15V DC |
Output Current: |
5A |
Power Rating: |
75W |
Connector Type: |
Barrel Plug (DC tip) |
Input Connector: |
IEC C8 (figure-8) AC inlet |
Replaces / Alternate MPN: |
PA3083U-1ACA, PA3283U-1ACA |
Compatible With 1: |
Toshiba Satellite 1400/1405, 1410/1415, 1800/1805 |
Compatible With 2: |
Toshiba Satellite 2400/2405, 2410/2415, 5005, 5105 |
Compatible With 3: |
Toshiba Satellite A10/A15, M20, M30/M35 |
Compatible With 4: |
Toshiba Satellite Pro 6000, 6100, M10, M15 |
Compatible With 5: |
Toshiba Portege 3500/3505, 4000/4005, 4010, M100 |
Compatible With 6: |
Toshiba Portege M200/M205 |
Compatible With 7: |
Toshiba Tecra 9000, 9100, A1, M1, S1 |
Compatible With 8: |
Toshiba Tecra TE2000, TE2100, TE2300 |
Power Cord Included: |
Yes |
Country/Region of Manufacture: |
Indonesia |
Form Factor: |
External / Desktop Brick |
Seller Notes: |
Includes power cord. No manual or peripherals included. |
Condition Notes: |
This Toshiba PA3201U-1ACA 75W AC adapter was pulled from a working environment and is in good used condition. Power cord included; no manual or peripherals. Please contact us with any questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
