Description
Toshiba PA3156U Slim Port Replicator Portege 2000 RJ-45 USB VGA w/ AC Adapter
The Toshiba PA3156U is a slim port replicator designed specifically for the Portege 2000 series of ultralight laptops. It connects to the laptop's proprietary docking connector and instantly adds a full complement of desktop ports — wired LAN, monitor output, and four USB connections — without the need to plug in multiple cables individually. Its slim, travel-friendly profile means it can go with the laptop as easily as it stays on a desk.
Specifications & What's Included
- Model: Toshiba PA3156U
- Compatible with: Toshiba Portege 2000 series
- RJ-45 Ethernet port (LAN)
- VGA (RGB) monitor output port
- 4x USB ports
- RJ-11 modem port accessible when docked
- DC power input
- Cable lock slot
- Integrated battery charger — charges the laptop's primary battery first, then a secondary high-capacity battery
- LED dock status indicator
- Easy-release docking mechanism
- Dimensions: 11 x 3 x 1 in

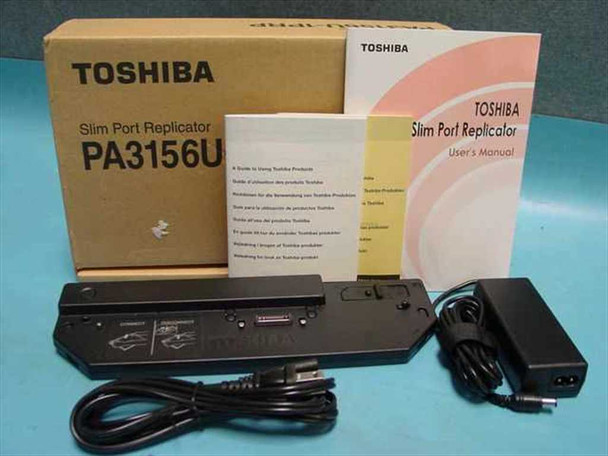

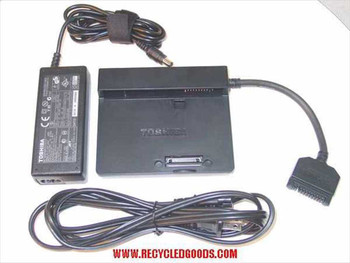

- Includes: PA3156U port replicator, Toshiba AC adapter, power cable, and user manual (all shown in photos)
Applications
Slim port replicators like the PA3156U were developed alongside ultraportable laptops of the late 1990s and early 2000s — machines so thin that full-size ports were omitted to save weight. The Toshiba Portege 2000, released around 2001, was one of the thinnest laptops of its era and relied on an external replicator like this one for LAN connectivity, an external monitor, and USB peripherals. Users who moved between a travel setup and a fixed desk could drop the laptop onto the replicator and regain desktop functionality instantly. The integrated secondary battery charging circuit was a distinguishing feature: with the replicator, a spare high-capacity battery could be charged through the dock while the laptop ran on its internal battery — a practical advantage for road warriors. These units remain useful today for anyone maintaining a Portege 2000 system or looking to restore a complete original setup.
This Toshiba PA3156U Slim Port Replicator for the Portege 2000 series is in like-new condition and comes in its original OEM box. The unit shows no meaningful wear and presents exceptionally well. As visible in the photos, the box, port replicator, AC adapter, power cable, and user manual are all present — contrary to the original listing note, the manual is visible and included. Please review our photos carefully and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Toshiba |
Model: |
PA3156U |
MPN: |
PA3156U |
Type: |
Slim Port Replicator / Docking Station |
SKU: |
12959 |
Compatible With: |
Toshiba Portege 2000 Series |
Form Factor: |
Slim / Portable |
Ports Included: |
RJ-45 (LAN), VGA (RGB), 4x USB, DC In, RJ-11, Cable Lock Slot |
Number of USB Ports: |
4 |
LAN Port: |
RJ-45 Ethernet |
Video Output: |
VGA (RGB Monitor) |
Modem Port: |
RJ-11 |
Battery Charger: |
Yes – Integrated; charges primary then secondary battery |
LED Indicator: |
Yes – Dock status LED |
Release Mechanism: |
Easy-release lever |
Dimensions: |
11 x 3 x 1 in |
Includes: |
Port replicator, AC adapter, power cable, user manual |
Country/Region of Manufacture: |
Japan |
Condition Notes: |
Toshiba PA3156U Slim Port Replicator for Portege 2000 — like-new condition in original OEM box. Includes AC adapter, power cable, and user manual. No significant wear. Please contact us with any questions. |
