Toshiba PA2718U Enhanced Port Replicator Libretto 50CT 70CT Docking

Toshiba PA2718U Enhanced Port Replicator Libretto 50CT 70CT Docking

The Toshiba PA2718U is an Enhanced Port Replicator designed specifically for the Toshiba Libretto 50CT and 70CT mini-notebook computers. It connects to the Libretto via a proprietary docking interface, instantly expanding the laptop's extremely limited I/O capabilities with a full complement of legacy ports for use at a desk.

Specifications & What's Included

• Manufacturer: Toshiba Corporation
• Model: PA2718U (Enhanced Port Replicator)
• Compatible with: Toshiba Libretto 50CT, Libretto 70CT

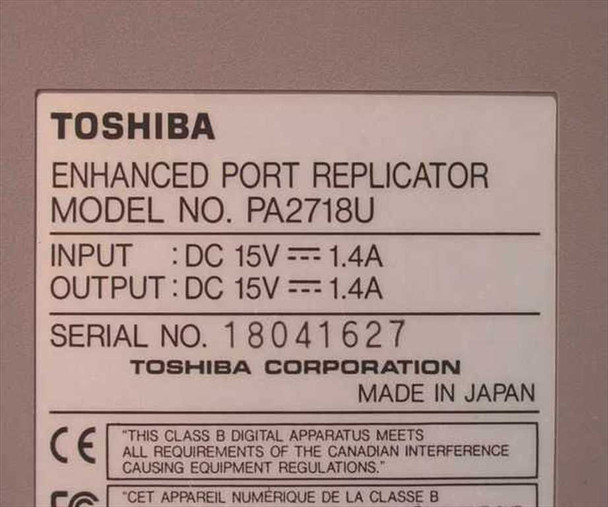

• Input: DC 15V, 1.4A
• Output: DC 15V, 1.4A

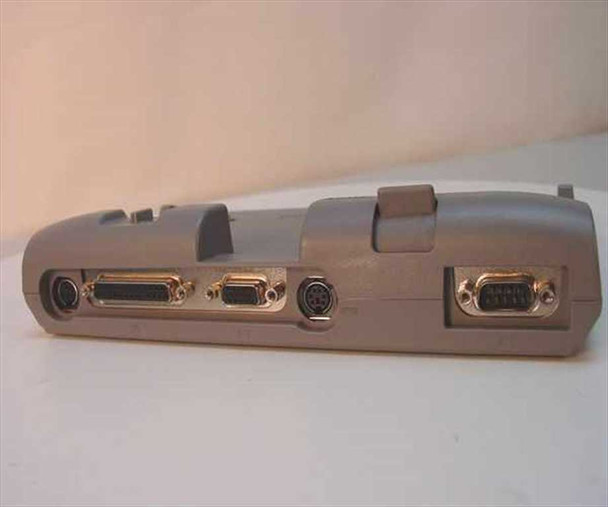

• Rear ports: 2x PS/2 mini-DIN (keyboard and mouse), 1x parallel (DB-25), 1x serial (DB-9)

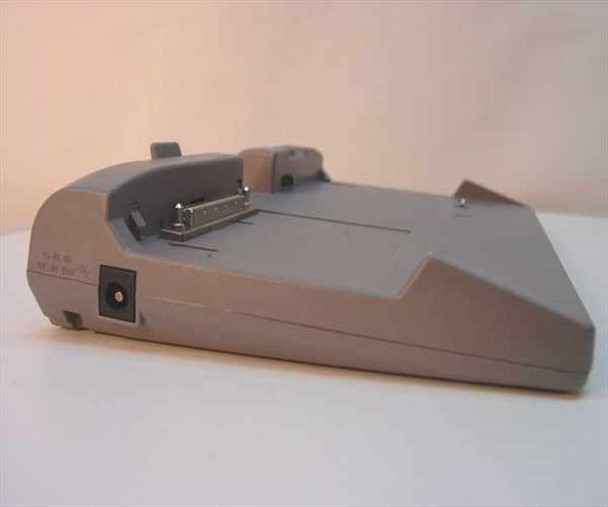

• DC power jack on side panel
• Proprietary Libretto docking connector
• Country of manufacture: Japan
• Port replicator unit only — no AC adapter or cables included

Applications

The Toshiba Libretto was a remarkably compact Windows 95/98-era sub-notebook — roughly the size of a VHS cassette — that Toshiba introduced in the mid-1990s. Because the Libretto 50CT and 70CT had virtually no built-in ports of their own (a consequence of their tiny form factor), a port replicator like the PA2718U was essentially required for any desk-based use. It allowed users to connect a full-size PS/2 keyboard and mouse, a parallel printer, and a serial device, effectively turning the pocket-sized Libretto into a functional desktop workstation when docked. These units are now sought after by Libretto collectors and enthusiasts who maintain working examples of these historically notable ultra-compact machines.
