Description
Toshiba PA2711U Enhanced Port Replicator Satellite 400 420 430 440 Series
The Toshiba PA2711U is an Enhanced Port Replicator designed for the Toshiba Satellite 400, 420, 430, and 440 series notebooks. It connects via a proprietary docking connector on the underside of the laptop and instantly extends the notebook's connectivity with a full complement of desktop-style ports — eliminating the need to plug in multiple cables each time the laptop returns to the desk. Made in Japan.
Specifications & What's Included
- Model: PA2711U (Enhanced Port Replicator)
- Compatible with: Toshiba Satellite 400, 420, 430, and 440 series notebooks
- Notebook interface: Proprietary wide ribbon-style docking connector

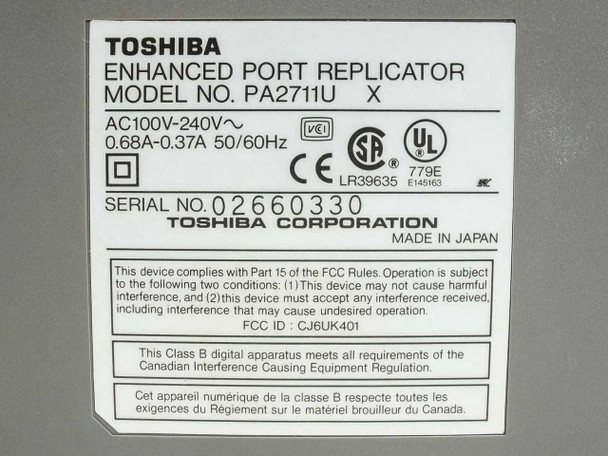

- Power input: AC 100–240V, 0.68A–0.37A, 50/60Hz (universal voltage)
- AC inlet: IEC C8 figure-8 connector (power cord not included)

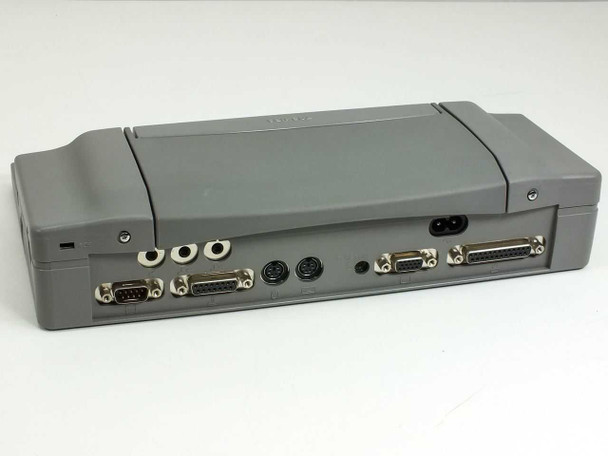

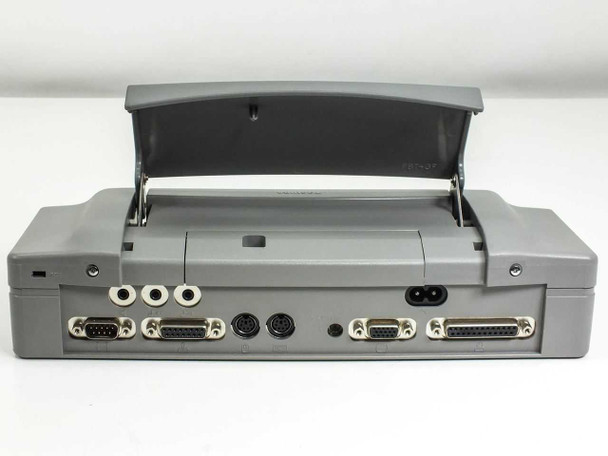

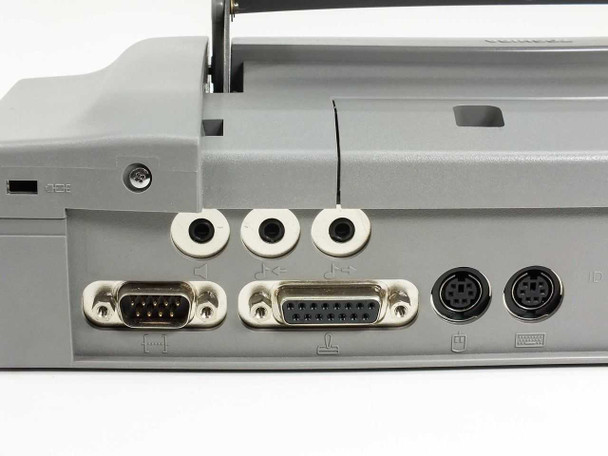

- Serial port: DB-9 (RS-232)
- Parallel ports: 2× DB-25
- Video output: DB-15 VGA
- PS/2 ports: 2× mini-DIN (keyboard and mouse)
- Audio jacks: 3× 3.5mm (line-in, microphone, headphone)
- Country of manufacture: Japan
- Certifications: CE, CSA, UL (LR39635, E145163)
- FCC ID: CJ6UK401
- Included: Port replicator only — no power cord, cables, or manual
Applications
Port replicators like the PA2711U were a standard accessory for mid-1990s business notebooks, letting users keep a full set of peripherals — monitor, printer, keyboard, mouse, and serial devices — permanently connected at a desk. Dropping the laptop onto the replicator instantly restored all those connections without plugging in individual cables. The Toshiba Satellite 400 series was a popular mid-1990s business laptop line, and accessories like this replicator remain useful for anyone maintaining one of these systems or running legacy serial and parallel peripherals that require the port types no longer found on modern laptops. The universal AC input (100–240V) makes this unit suitable for use in both North American and international settings.
This Toshiba PA2711U Enhanced Port Replicator is in good used condition. It was pulled from a working environment and shows only light surface wear consistent with normal use — the housing is clean and intact with no cracks or broken tabs. The docking connector and rear ports all appear undamaged. No power cord is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Toshiba |
Model: |
PA2711U |
MPN: |
PA2711U |
Type: |
Enhanced Port Replicator / Docking Station |
SKU: |
8543 |
Compatible With: |
Toshiba Satellite 400, 420, 430, 440 Series |
Power Requirements: |
AC 100-240V, 0.68A-0.37A, 50/60Hz |
Connector - Notebook Interface: |
Proprietary docking connector (wide ribbon-style) |
Ports - Serial: |
DB-9 serial port |
Ports - Parallel: |
DB-25 parallel port (x2 visible) |
Ports - PS/2: |
2x PS/2 mini-DIN (keyboard and mouse) |
Ports - Video: |
DB-15 VGA output |
Ports - Audio: |
3x 3.5mm audio jacks (line-in, mic, headphone) |
AC Power Inlet: |
IEC C8 / figure-8 AC inlet |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Desktop / Deskside |
Seller Notes: |
Port replicator only — no power cord, cables, or manual included. |
Condition Notes: |
This Toshiba PA2711U Enhanced Port Replicator is in good used condition, pulled from a working environment. Housing is clean with light surface wear; docking connector and rear ports appear undamaged. No power cord included. |
