Description
Toshiba Laptop Keyboard UE0296P02 P000230810 Satellite Satellite Pro Tecra
This is an OEM Toshiba laptop replacement keyboard, part number UE0296P02 (FRU P000230810), in a light gray finish. It features a flat flexible ribbon (FPC) cable connector and includes a center pointing stick nub. The keyboard was assembled in Mexico and is a direct fit for a wide range of Toshiba Satellite, Satellite Pro, and Tecra laptop models from the mid-to-late 1990s.
Specifications & What's Included
- Brand: Toshiba
- Part Number: UE0296P02
- FRU / Catalog Part Number: P000230810

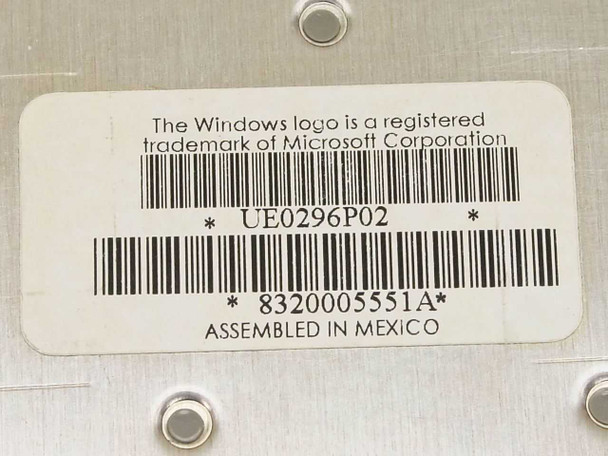

- Secondary Part Number (label): 8320005551A
- Color: Light gray
- Connector: Flat flexible ribbon cable (FPC), dual-layer green/gold traces
- Pointing device: Center pointing stick nub (TrackPoint-style)
- Country of Assembly: Mexico
- Includes: Keyboard unit with attached FPC ribbon cable only
Compatible Models
- Toshiba Satellite: 220CDS, 225CDS, 2505CDS, 300CDS, 305CDS, 310CDS, 310CDT, 315CDT, 320CDS, 320CDT, 330CDS, 330CDT, 335CDS, 335CDT
- Toshiba Satellite: 4000CDS, 4000CDT, 4005CDS, 4005CDT, 4010CDS, 4010CDT, 4015CDS, 4015CDT, 4020CDT, 4025CDT
- Toshiba Satellite Pro: 440CDT, 440CDX, 445CDT, 445CDX, 460CDT, 460CDX, 465CDX, 470CDT, 480CDT, 490CD, 490XCDT
- Toshiba Tecra: 780CDM
Applications
This keyboard is a direct OEM replacement for Toshiba Satellite and Satellite Pro laptops produced in the mid-to-late 1990s — a generation of Toshiba portable computers that used the CDS/CDT naming convention to denote color display and docking configurations. The Satellite 300/400 series and Satellite Pro 440–490 series were popular business and consumer notebooks of that era, and replacement keyboards for them are increasingly scarce as new-old-stock supplies dry up. The pointing stick nub was a standard feature on these models, allowing cursor control without an external mouse. This keyboard is suited for repair shops, hobbyists, and owners maintaining legacy Toshiba hardware.
This Toshiba UE0296P02 laptop keyboard (P000230810) is in good used condition. The keys show no obvious damage, broken caps, or heavy wear, and the flat flexible ribbon cable appears intact and undamaged. The metal backing plate is in solid shape. This keyboard was not tested electrically at our facility, but it shows no physical signs of damage or heavy use. Please review all photos before purchasing, and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Toshiba |
Model: |
UE0296P02 |
MPN: |
P000230810 |
Secondary Model: |
8320005551A |
SKU: |
17288 |
Type: |
Laptop Replacement Keyboard |
Compatible With 1: |
Toshiba Satellite 220CDS, 225CDS, 2505CDS |
Compatible With 2: |
Toshiba Satellite 300CDS, 305CDS, 310CDS, 310CDT |
Compatible With 3: |
Toshiba Satellite 315CDT, 320CDS, 320CDT |
Compatible With 4: |
Toshiba Satellite 330CDS, 330CDT, 335CDS, 335CDT |
Compatible With 5: |
Toshiba Satellite 4000CDS, 4000CDT, 4005CDS, 4005CDT |
Compatible With 6: |
Toshiba Satellite 4010CDS, 4010CDT, 4015CDS, 4015CDT |
Compatible With 7: |
Toshiba Satellite 4020CDT, 4025CDT |
Compatible With 8: |
Toshiba Satellite Pro 440CDT, 440CDX, 445CDT, 445CDX |
Compatible With 9: |
Toshiba Satellite Pro 460CDT, 460CDX, 465CDX |
Compatible With 10: |
Toshiba Satellite Pro 470CDT, 480CDT, 490CD, 490XCDT |
Compatible With 11: |
Toshiba Tecra 780CDM |
Color: |
Light Gray |
Connector Type: |
Flat Flexible Ribbon Cable (FPC) |
Country/Region of Manufacture: |
Mexico |
Keyboard Layout: |
US English |
Form Factor: |
Laptop / Notebook Internal |
Pointer Device: |
Pointing stick (TrackPoint-style nub) |
Condition Notes: |
This Toshiba UE0296P02 laptop keyboard is in good used condition. Keys appear undamaged, ribbon cable is intact, and the metal backing plate is in good shape. Not electrically tested. Please review photos and contact us with any questions. |
