TMC NAF2000 NAR2000 Micro-g Air Filter Regulator Vibration Isolation Pod w/ SMC

(No reviews yet) Write a Review
SKU:
40553
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • TMC Micro-g NAF2000 NAR2000 vibration isolation pod full assembly — SMC air filter, TMC pressure gauge, mounting bracket, and sealed hardware bag with leveling rods in foreground
  • TMC Micro-g NAF2000 NAR2000 assembly rear/side view — SMC NAR2000 air regulator with black adjustment knob and mounting bracket left, SMC air filter with transparent bowl and red button right, both labeled Made in Japan
  • TMC NAF2000 NAR2000 pneumatic pod front view — SMC air filter with directional arrow label left, TMC Micro-g Gimbal Piston Isolator pressure gauge (0–100 PSI / 0–700 kPa) right, black filter bowl below

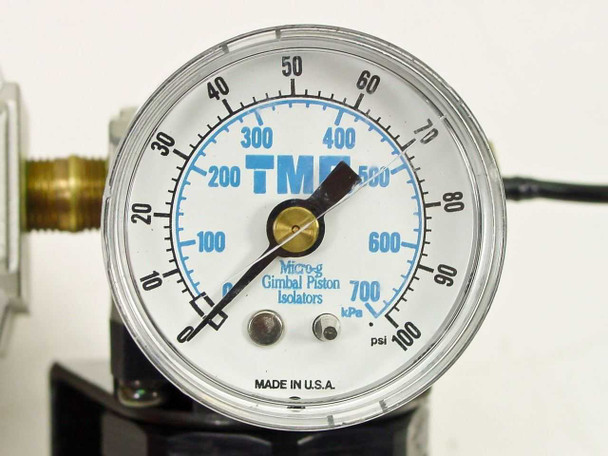

  • Close-up of TMC Micro-g Gimbal Piston Isolator pressure gauge face — dual scale 0–100 PSI outer and 0–700 kPa inner, Made in U.S.A.
  • SMC Air Regulator label close-up — Model NAR2000, Set Press. 7–120 PSI
  • SMC Air Filter label close-up — Model NAF2000, Max. Press. 150 PSI

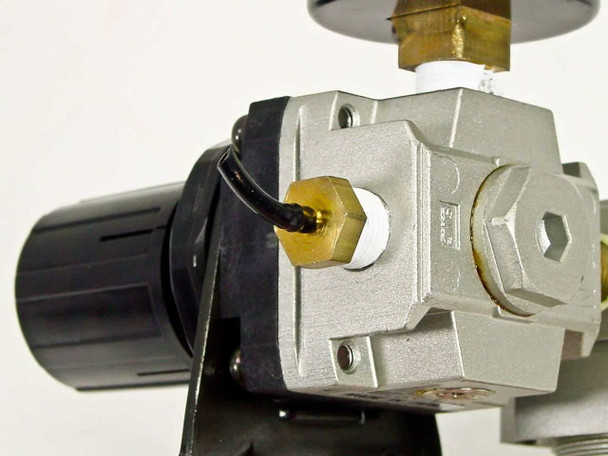

  • Close-up of SMC NAR2000 regulator body — brass pressure port with wire lead, black adjustment knob, and top brass fitting visible

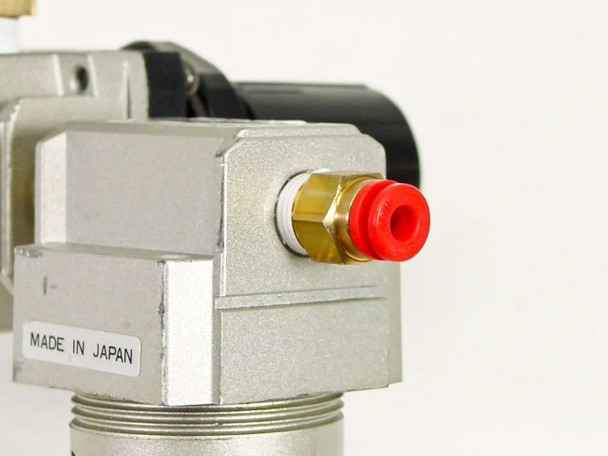

  • SMC NAF2000 air filter side close-up — Made in Japan label, red push-in port fitting visible on side outlet
  • Sealed plastic bag containing TMC vibration isolation table mounting hardware — two leveling rods with red adjustment knobs, brass fitting, and screws with blue heads
$70.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

TMC NAF2000 NAR2000 Micro-g Air Filter Regulator Vibration Isolation Pod w/ SMC

This is the pneumatic air supply and regulation assembly for a TMC Micro-g vibration isolation table system. The unit combines an SMC NAF2000 air filter (150 PSI max), an SMC NAR2000 air regulator (set pressure range 7–120 PSI), and a TMC-branded Micro-g Gimbal Piston Isolator pressure gauge (0–100 PSI / 0–700 kPa), all mounted on a black bracket. A sealed hardware bag with leveling adjustment rods, a brass fitting, and fasteners is also included.

Specifications & What's Included

  • Air Filter: SMC NAF2000 — Max. Press. 150 PSI
  • Air Regulator: SMC NAR2000 — Set Press. 7–120 PSI
  • Pressure Gauge: TMC Micro-g Gimbal Piston Isolator, 0–100 PSI / 0–700 kPa, Made in U.S.A.
  • Filter bowl: transparent polycarbonate with manual drain, red button top release
  • Regulator adjustment: black knob, lockable
  • SMC components: Made in Japan
  • Mounting: black steel bracket for table/frame attachment
  • Outlet port: red push-in pneumatic fitting on filter body
  • Included: SMC NAF2000 filter body, SMC NAR2000 regulator body, TMC pressure gauge, mounting bracket, sealed hardware bag (two leveling adjustment rods with red knobs, brass fitting, screws)

Applications

TMC (Technical Manufacturing Corporation) Micro-g vibration isolation tables are pneumatic active and passive isolation systems widely used in precision laboratory, optical, semiconductor, and metrology environments — anywhere mechanical vibration from floors, HVAC, or nearby equipment must be decoupled from sensitive instruments such as interferometers, scanning electron microscopes, atomic force microscopes, and laser systems. This pneumatic pod assembly supplies and regulates the compressed air that pressurizes the Micro-g Gimbal Piston air isolator mounts beneath the table surface, allowing the table to float on an air cushion that absorbs incoming vibration. The SMC NAF2000 filters particulates and moisture from the shop-air supply, protecting the isolator pistons, while the NAR2000 regulator sets and holds the correct operating pressure. The included leveling hardware is used to make fine height and tilt adjustments to the table surface. These assemblies are standard accessories on TMC Micro-g benchtop and floor-standing isolation tables and are also sold as replacement or spare units for existing installations.

Condition: Used
This TMC Micro-g NAF2000 NAR2000 vibration isolation pod assembly has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The SMC NAF2000 air filter and NAR2000 regulator bodies show normal handling wear; the TMC pressure gauge face and both SMC labels are clean and fully legible. The sealed hardware bag with leveling rods and fittings appears undisturbed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
TMC
Model:
NAF2000
Secondary Model:
NAR2000
MPN:
NAF2000
SKU:
40553
Type:
Pneumatic Vibration Isolation Pod / Air Filter-Regulator Assembly
Sub-Brand / Regulator Manufacturer:
SMC Corporation
Air Filter Model:
SMC NAF2000
Air Regulator Model:
SMC NAR2000
Filter Max Pressure:
150 PSI
Regulator Set Pressure Range:
7–120 PSI
Gauge Range:
0–100 PSI / 0–700 kPa
Gauge Type:
TMC Micro-g Gimbal Piston Isolator Pressure Gauge
Country/Region of Manufacture:
Japan (SMC components); USA (TMC gauge)
Compatible With:
TMC Micro-g Vibration Isolation Tables
Application:
Pneumatic vibration isolation table air supply and regulation
Includes:
NAF2000 filter, NAR2000 regulator, TMC gauge, mounting bracket, hardware kit
Seller Notes:
Includes SMC NAF2000 air filter, NAR2000 regulator, TMC pressure gauge, mounting bracket, and sealed hardware bag with leveling rods and fittings.
Condition Notes:
This TMC Micro-g NAF2000 NAR2000 vibration isolation pod has been inspected and is in good used condition, pulled from a working environment. Labels are clean and legible; hardware bag appears undisturbed. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
