Titertek Zoom 62075 Microplate Washer Digiflex 62187 Dispenser Cole Parmer 52130

Titertek Zoom 62075 Microplate Washer Digiflex 62187 Dispenser Cole Parmer 52130

This listing is for a complete Titertek Zoom 62075 automated microplate washing and dispensing system, comprising three integrated instruments: the Titertek Zoom 62075 microplate washer, the Titertek Digiflex 62187 liquid dispenser, and the Cole Parmer 52130 peristaltic pump module. The Zoom is a programmable benchtop microplate washer designed for 96-well plate formats, with motorized X/Y/Z axis positioning, an integrated vacuum pump, and a front-panel LCD interface for storing and running wash programs. The Digiflex adds a dual-syringe precision liquid dispensing capability using independently controlled left and right valves.

Specifications & What's Included

• Titertek Zoom Microplate Washer — Model 62075, made in USA by Titertek Instruments, Inc., Huntsville, AL

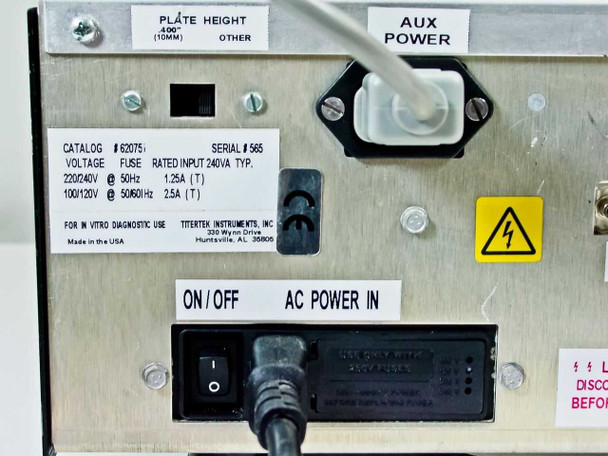

• Washer power: 100/120V 50/60Hz 2.5A (T) or 220/240V 50Hz 1.25A (T), rated input 240VA
• Plate height setting: 4.00" (10mm) / OTHER selectable via rear panel
• Front panel: backlit LCD display (shows ZOOM MAIN MENU: PROG, HOME, UTILS, STACK), 8 program buttons, STOP, ENTER, EXIT keys
• Side axis control keypad: X±1 step, Y±1 step, Z±5/±1 step buttons for manual positioning

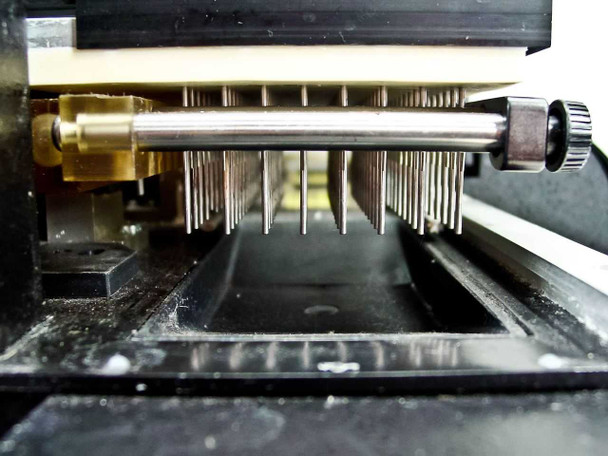

• 96-pin stainless steel aspirate/dispense wash head manifold with dispense head label
• Integrated vacuum pump module (white enclosure, labeled VACUUM PUMP, with clear pump head and tubing connections)
• Rear connectors: RS-232 DB9 serial, Z Module DB15, AUX 1, Valve Inlet, Pump 5V, AUX POWER (IEC), ON/OFF toggle switch, drain port

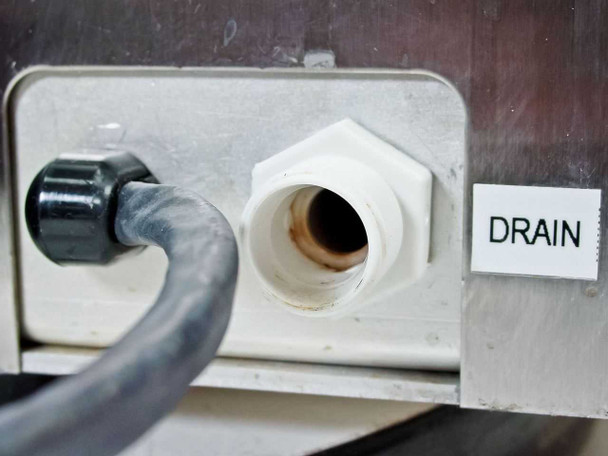

• Drain fitting: large-bore white PVC bulkhead fitting with drain hose (fitting shows internal rust staining)

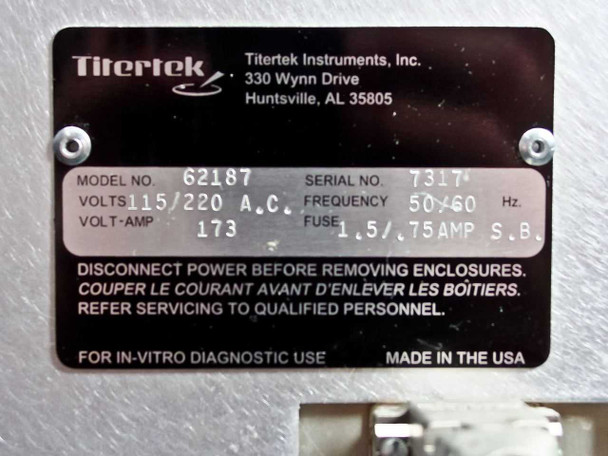

• Titertek Digiflex Liquid Dispenser — Model 62187, Volts 115/220V AC, Frequency 50/60Hz, VA 173, Fuse 1.5A/0.75A S.B., made in USA

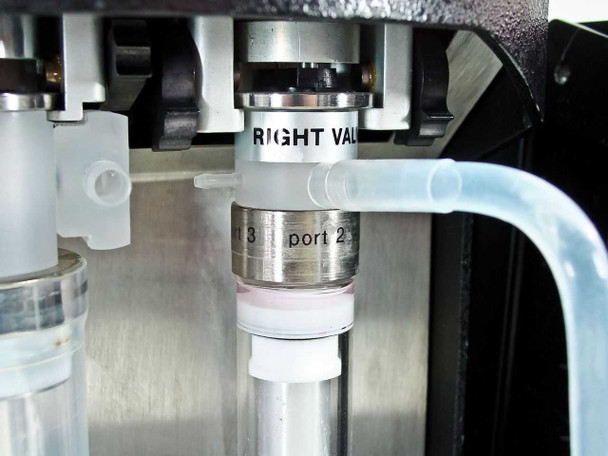

• Digiflex: dual-syringe valve assembly (Left Valve + Right Valve), 2-position/3-port valve configuration, tubing connections

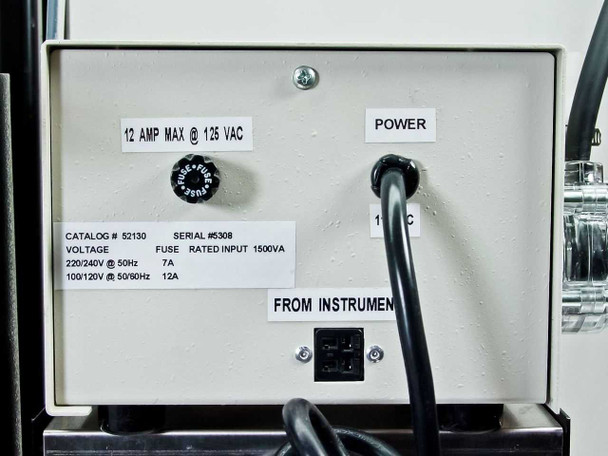

• Cole Parmer 52130 Peristaltic Pump Module: 100/120V 50/60Hz 12A or 220/240V 50Hz 7A, rated input 1500VA; 12 AMP MAX @ 125VAC

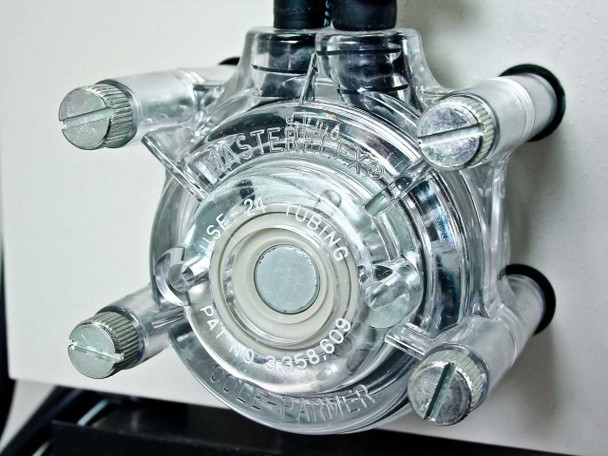

• Cole Parmer Masterflex pump head (clear acrylic, USE-24 tubing, Pat. No. 3,358,609)
• Power cord (standard NEMA 5-15P 3-prong, black) included
• All three instrument units present as a complete system

Applications

Automated microplate washers like the Titertek Zoom are standard equipment in ELISA and immunoassay workflows, where they rapidly and reproducibly dispense wash buffer into and aspirate it from each well of a 96-well plate. This combination of washer plus precision liquid dispenser makes the system suitable for multi-step assay protocols — including cell-based assays, receptor-binding assays, and enzyme immunoassays — where controlled dispensing volumes and consistent wash cycles are critical to assay sensitivity and reproducibility. Titertek Instruments was a well-regarded manufacturer of microplate handling equipment; the Zoom series was designed for in-vitro diagnostic and research laboratory use and was commonly found in clinical research, pharmaceutical, and biotech laboratory settings from the 1990s onward. The integrated RS-232 interface allows the washer to be controlled or logged from a connected PC or instrument controller.
