Description
Titan Industrial Heating Systems GN-3F22-HE Heating Element 3000W 277V H07

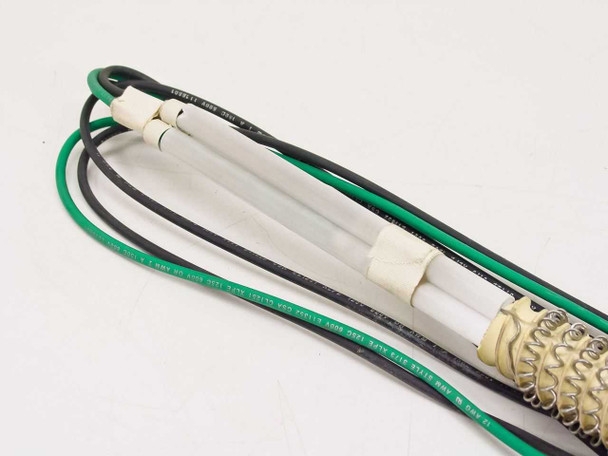

The GN-3F22-HE is a resistive coil-spring heating element from Titan Industrial Heating Systems, rated at 3000 watts and 277 volts with an H07 heater class designation. It features a coiled resistance wire wound over a ceramic/porcelain insulating core, terminated at both ends with ceramic connector blocks and fitted with 12 AWG XLPE-insulated lead wires in black, white, and green (ground).
Specifications & What's Included
- Manufacturer: Titan Industrial Heating Systems
- Part Number: GN-3F22-HE
- Power Rating: 3000 Watts (3 kW)
- Voltage Rating: 277V
- Heater Class: H07

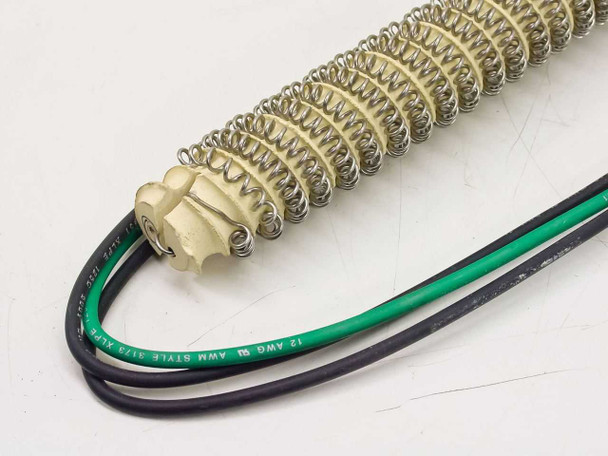

- Element Construction: Coil-spring resistive wire over ceramic/porcelain insulating core
- Lead Wire Gauge: 12 AWG
- Lead Wire Insulation: XLPE (Style AWM)
- Lead Wire Voltage Rating: 600V
- Lead Wire Temperature Rating: 125°C

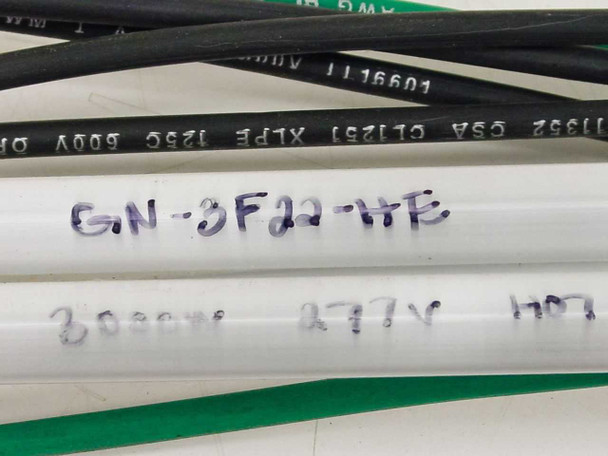

- Lead Wire Standard: CSA CL1251 XLPE 600V 125C (as printed on jacket)
- Lead Wire Colors: Black, White, Green (ground)
- Ceramic end connectors at both lead terminations
Applications
Resistive coil-spring heating elements like the GN-3F22-HE are used in industrial forced-air duct heaters, cabinet heaters, process air heaters, and custom industrial heating assemblies. The 277V rating is common in North American commercial and industrial electrical systems, where 277V single-phase power is derived from 480V three-phase distribution — making these elements a standard fit for industrial HVAC, process heating, and temperature-controlled enclosures. The H07 class designation indicates a heater specification or wiring configuration code used by Titan Industrial for their modular heating system product line. These elements serve as replacement or spare components in industrial heating systems wherever a 3 kW, 277V resistive element is required.
This Titan Industrial Heating Systems GN-3F22-HE Heating Element is new and unused. It is open-box, meaning it may no longer be in its original packaging, but the element itself has never been installed or used. The coil-spring resistive body and lead wires are in clean, undamaged condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Titan Industrial Heating Systems |
Model: |
GN-3F22-HE |
MPN: |
GN-3F22-HE |
Type: |
Resistive Coil Heating Element |
SKU: |
39752 |
Power Rating: |
3000 Watts (3 kW) |
Voltage Rating: |
277V |
Heater Code / Class: |
H07 |
Lead Wire Gauge: |
12 AWG |
Lead Wire Type: |
XLPE insulated, Style AWM |
Lead Wire Colors: |
Black, White, Green (ground) |
Lead Wire Voltage Rating: |
600V |
Lead Wire Temp Rating: |
125°C |
Lead Wire Standard: |
CSA CL1251 XLPE 600V 125C |
Element Construction: |
Coil-spring resistive wire over ceramic/porcelain core |
Condition: |
New – Open Box |
Seller Notes: |
New open-box heating element; may be out of original packaging. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Titan Industrial GN-3F22-HE Heating Element is new and unused — open-box, may be out of original packaging. Never installed. Element and leads are clean and undamaged. Contact us with any questions. |
