Description
TIE Communications DTS Systems ONYX IV PBX 88100 88120 Station Card System
The TIE Communications DTS Systems is a modular PBX (Private Branch Exchange) telephone system built on the ONYX IV platform. This unit carries software version V.3.71 (part number 88484) and is configured as a 72/180 CTG PBX — capable of supporting up to 60 stations across the five installed 12-port station cards, with 16 trunk circuits protected by the T-RPT-A module. The system uses a card-cage architecture with a centralized H-CPU-A processor and a modular card set for lines, stations, and interoperability.
Specifications & What's Included
- Manufacturer: TIE/communications, Inc.

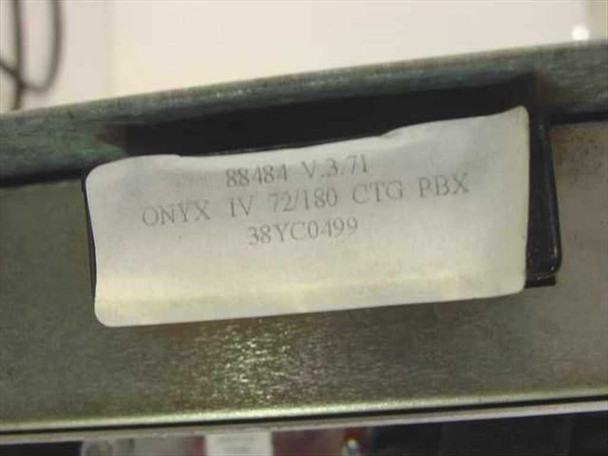

- Platform: ONYX IV, Software Version V.3.71 (P/N 88484)
- System Configuration: 72/180 CTG PBX
- 1× 88100 DTS-3260 Common Equipment Unit
- 5× 88110B 4-LNU-B 4-Circuit Line Card

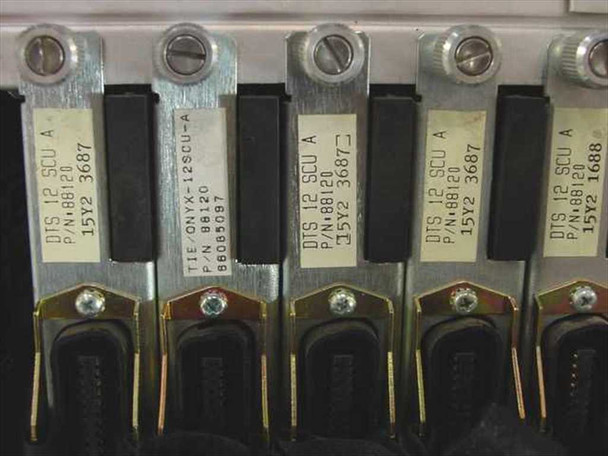

- 5× 88120 12-SCU-A Station Card (60 station ports total)
- 1× 88135 T-RPT-A Trunk Protector (16 circuits)
- 1× 88275 SIM-A System Interlink Module
- 1× 88340 H-CPU-A Central Processor
- CPU serial ports: COM1 (DCE), COM2 (DTE), COM3 (DCE), COM4 (DTE)
- DC fault monitoring indicators: 28VDC, 16.5VDC, 5.1VDC, 5VDC, COMMON
- Trunk port capacity: 32 ports (01–04 through 29–32 labeled in chassis)

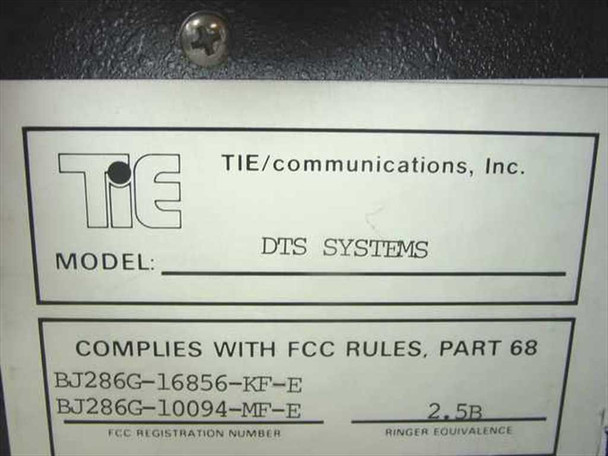

- FCC Registration Numbers: BJ286G-16856-KF-E / BJ286G-10094-MF-E
- Ringer Equivalence: 2.5B
- Form factor: floor/wall-mount black steel cabinet with power cord
Applications
The TIE Communications DTS Systems/ONYX IV is a business PBX platform from the late 1980s to early 1990s, designed for small-to-medium enterprises needing multi-line telephony with centralized call control. The ONYX IV line supported analog station sets and provided features typical of that era — including trunk line management, station-to-station dialing, call transfer, and system interlink for networked PBX configurations via the SIM-A module. The 12-SCU-A station cards each support 12 analog station ports, making this configuration suitable for an office of up to 60 extensions. These systems are still sought by facilities running legacy TIE/ONYX telephone infrastructure, hobbyists, or technicians needing spares and working modules for existing installations.

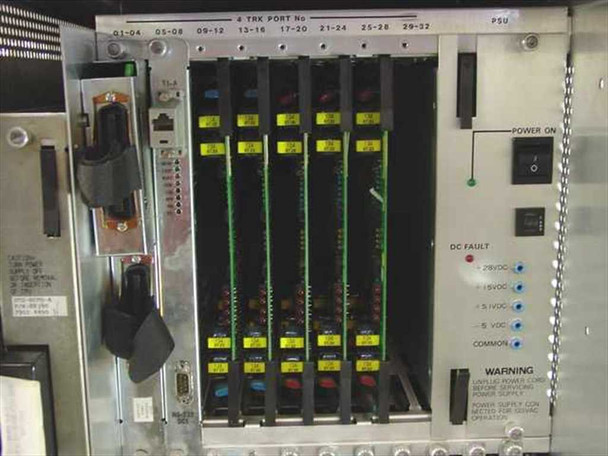

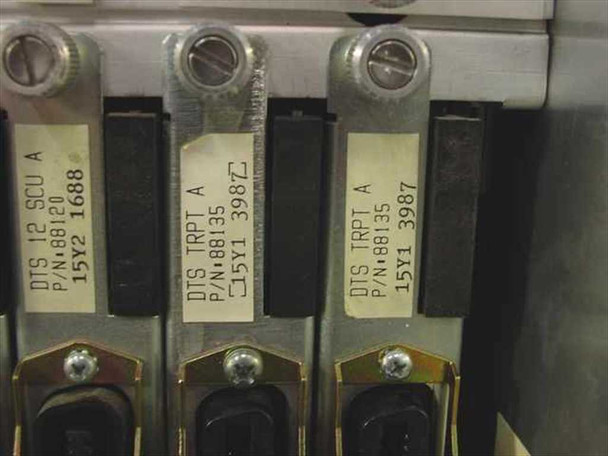

This TIE Communications DTS Systems ONYX IV PBX has been inspected and is in good condition. The cabinet is structurally sound with normal cosmetic wear consistent with used telecom equipment. All cards listed in the specifications — including the 88340 H-CPU-A central processor, five 88110B line cards, five 88120 station cards, 88135 trunk protector, and 88275 SIM module — are installed and present. Please review our full photo set, which shows the cabinet exterior, interior card cage, and individual card labels, and contact us with any questions.
Warranty Information
Additional Information
Brand: |
TIE Communications |
Model: |
DTS Systems |
MPN: |
88100 |
Secondary Model: |
ONYX IV 72/180 CTG PBX |
SKU: |
26458 |
Type: |
PBX Phone System |
Platform / Version: |
ONYX IV V.3.71 (88484) |
FCC Registration Number: |
BJ286G-16856-KF-E / BJ286G-10094-MF-E |
Ringer Equivalence: |
2.5B |
Common Equipment Unit: |
1x 88100 DTS-3260 Common Equipment Unit |
Line Cards: |
5x 88110B 4-LNU-B 4-Circuit Line Card |
Station Cards: |
5x 88120 12-SCU-A Station Card |
Trunk Protector: |
1x 88135 T-RPT-A Trunk Protector (16 Circuits) |
System Interlink Module: |
1x 88275 SIM-A System Interlink Module |
Central Processor: |
1x 88340 H-CPU-A Central Processor |
CPU Serial Ports: |
COM1 (DCE), COM2 (DTE), COM3 (DCE), COM4 (DTE) |
Station Capacity: |
Up to 60 stations (5x 12-port SCU cards) |
Trunk Circuits: |
16 (via T-RPT-A trunk protector) |
Form Factor: |
Floor/Wall-Mount Cabinet |
Seller Notes: |
Includes all installed cards as listed. Cabinet with power cord. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This TIE Communications DTS Systems ONYX IV PBX has been inspected and is in good condition. All listed cards are installed and present. Normal cosmetic wear. Please contact us with any questions. |
