Tie Communications 2260A Telephone PBX Power Supply 120V AC 9A Multi-Output

Tie Communications 2260A Telephone PBX Power Supply 120V AC 9A Multi-Output

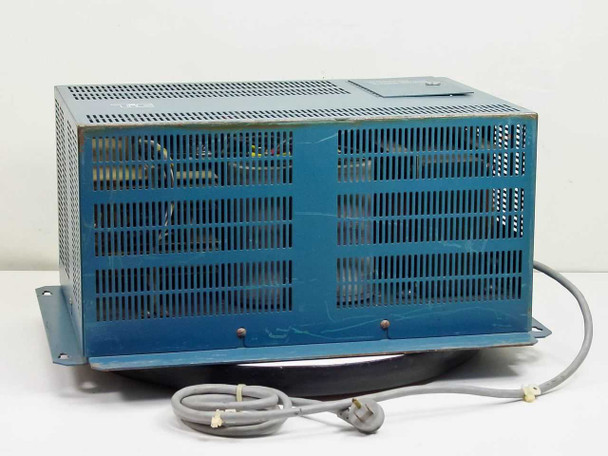

The Tie Communications 2260A is a multi-output DC power supply designed for large telephone PBX (Private Branch Exchange) systems. This desktop unit converts 120V AC input into multiple regulated DC rails, providing the precise voltages required by PBX telephone switching equipment and associated line cards. The 2260A features front-panel accessibility for testing, monitoring, and maintenance, making it suitable for both active installations and legacy system support.

Specifications & What's Included

• Model: Tie Communications 2260A
• Manufacturer: TUC Industries, Inc., Wallingford, Connecticut, USA
• Input: 120V AC, 60Hz, 9A
• Output DC Voltages: 18V, 24V, 15V (three separate rails), 5V, 7.5V (two separate rails) — 8 distinct DC outputs

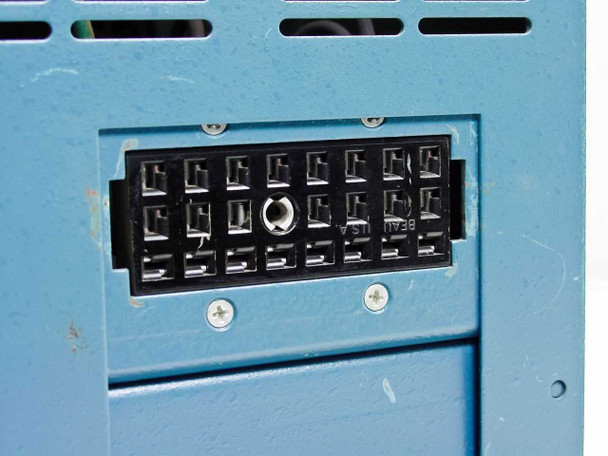

• Output Configuration: T18V, R24V, L5V, S15V, A15V, T15V, AB7.5V, SB7.5V
• DC Output Indicators: LED status lights per output rail
• DC Output Test Jacks: Front panel accessible for voltage monitoring

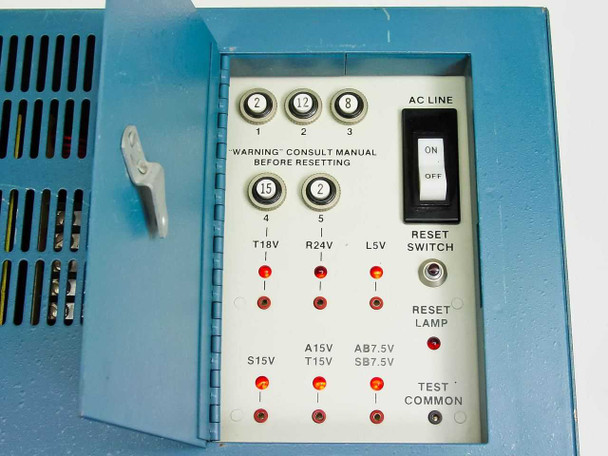

• DC Circuit Protection: 5 circuit breakers on front panel

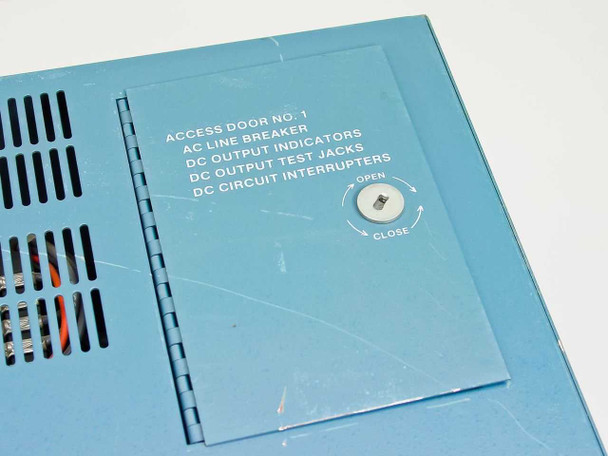

• AC Line Breaker: Accessible via front access door
• AC Line Control: On/off and reset switch on front panel

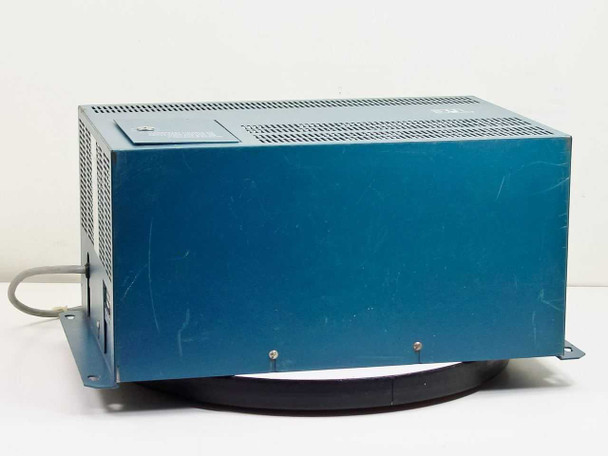

• Form Factor: Desktop/tabletop unit
• UL Listing: Yes — UL File #E56621, 408E Listed
• Included: AC power cord (3-prong)

Applications
