Description

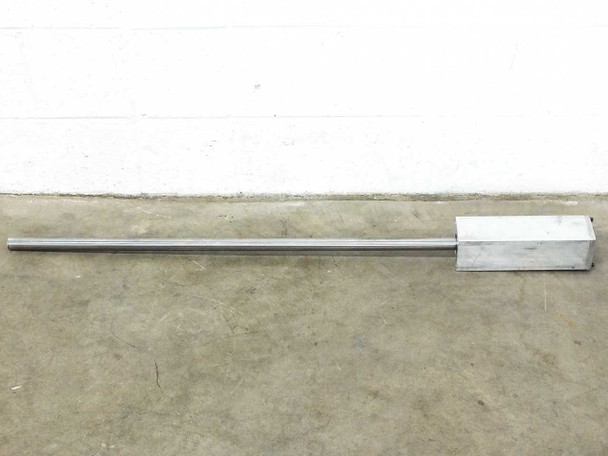

Thomson RoundRail 1" Dia x 45" Linear Guide Rod Stainless Steel w/ Aluminum Bearing Block
This is a Thomson-RL RoundRail stainless steel linear guide rod measuring 1 inch in diameter and 45 inches (3 ft 9 in) long, paired with an aluminum mounting block housing a Diamond Case SU16 linear bearing. Thomson's RoundRail system is a classic and widely used approach to linear motion guidance, where a precision-ground round shaft serves as both the guide rail and the load-bearing surface, with the carriage or bearing block riding directly along the rod.
Specifications & What's Included
- Brand: Thomson Industries (Thomson-RL)
- Series: RoundRail
- Rod length: 45 inches (3 ft 9 in)
- Rod diameter: 1 inch
- Rod material: Stainless steel

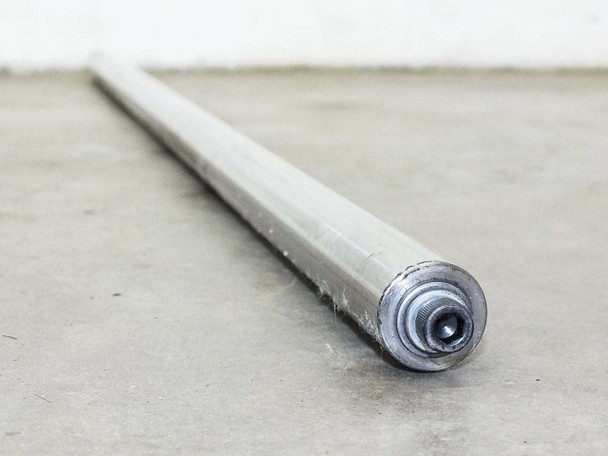

- Rod end: Threaded tip with end fitting
- Mounting block dimensions: 10.375" L x 3" W x 3" H
- Mounting block housing material: Aluminum
- Linear bearing: Diamond Case SU16 (housed inside aluminum block)

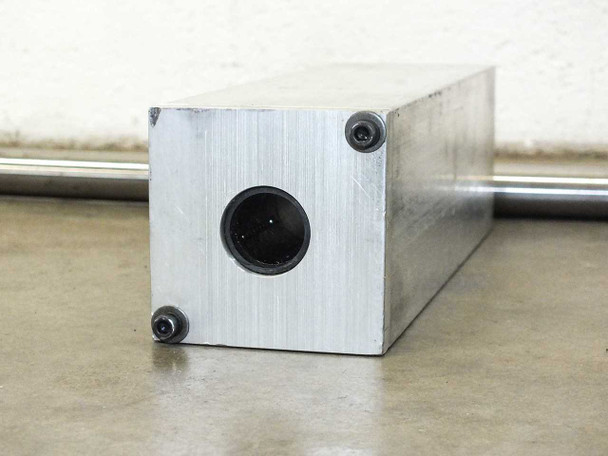

- Bearing block mounting: Four corner bolt holes on each end face
- Included: 1 stainless steel guide rod + 1 aluminum bearing block assembly
Applications
Thomson RoundRail linear guide rods are a standard component in linear motion systems used across industrial automation, CNC machinery, robotics, packaging equipment, semiconductor handling, and laboratory automation. The round-rail format has been a Thomson staple for decades — it pairs with pillow blocks, open bearing blocks, or end-support brackets to form complete linear slide assemblies. The 1-inch diameter shaft is a common size suited to moderate load and span applications. The Diamond Case SU16 bearing inside the aluminum block is a Thomson-proprietary bearing design featuring a hardened case for extended wear life on ground steel or stainless shafting. These assemblies are commonly found in existing linear slide tables, gantry stages, and actuator systems and can serve as replacement or spare components in those setups.
This Thomson RoundRail stainless steel linear guide rod and aluminum bearing block assembly has been inspected and appears to be in good used condition. The rod surface shows light surface marks consistent with prior use but is straight and intact with no visible bends or damage. The aluminum bearing block shows some grease/lubricant residue around the SU16 bearing bore, which is normal for a used linear motion component. The threaded end of the rod is present and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Thomson |
Model: |
Thomson-RL RoundRail |
MPN: |
Thomson-RL |
Type: |
Linear Guide Rod with Bearing Block |
SKU: |
49324 |
Condition: |
Used – Inspected |
Rod Length: |
45 inches (3 ft 9 in) |
Rod Diameter: |
1 inch |
Rod Material: |
Stainless Steel |
Bearing Block Material: |
Aluminum |
Bearing Block Dimensions: |
10.375" L x 3" W x 3" H |
Linear Bearing Model: |
Diamond Case SU16 |
Compatible With: |
Thomson RoundRail linear motion systems |
Form Factor: |
Inline / Slide Rail |
Application: |
Linear motion, automation, CNC, robotics |
Seller Notes: |
Includes 1" x 45" stainless steel rod and aluminum bearing block with SU16 bearings |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Thomson RoundRail 1" x 45" linear guide rod and aluminum bearing block inspected and in good used condition. Rod is straight with light surface marks. Bearing block shows normal grease residue. No visible damage. |
