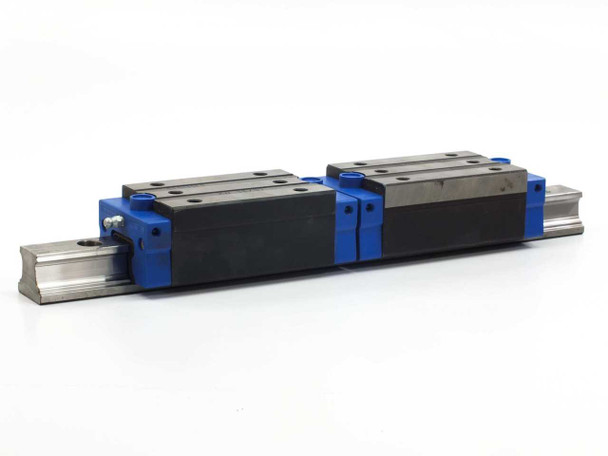

Thomson 511H35F0 Size 35 Ball Linear Guide Rail 16" w/ 2 Carriages Type F

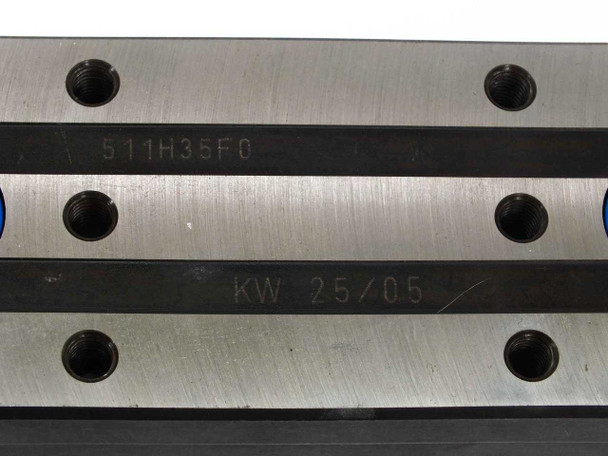

This listing is for a Thomson 511H35F0 Size 35 profiled ball linear guide rail, approximately 16 inches long, with two Type F (narrow high long) carriages installed. The model number and date code (KW 25/05) are stamped directly on the carriage top surface. Thomson's Size 35 profiled rail guides use recirculating ball technology to deliver smooth, low-friction linear motion capable of supporting loads in multiple directions, making them a workhorse component in precision machine building and automation.
Specifications & What's Included
- Model: Thomson 511H35F0
- Size / Series: Size 35 profiled ball linear guide
- Carriage style: Type F — Narrow High Long cartridge
- Guide plate dimensions: 2.75 x 4.375 in
- Rail length: approximately 16 in
- Quantity of carriages: 2 (both mounted on rail)
- Lubrication: grease zerk fitting on each carriage end cap
- Rail profile: crowned/profiled steel, standard Thomson Size 35 cross-section
- Date code: KW 25/05
- Includes: two carriages on one rail — no additional mounting hardware or accessories
Applications
Thomson profiled ball linear guides are standard components in CNC machine tools, semiconductor handling equipment, industrial automation, pick-and-place systems, and precision gantry stages. The Size 35 series is suited to medium-duty applications where moderate load capacity and high rigidity are needed — commonly found in milling machines, laser cutters, plasma tables, and custom motion stages. The Type F (narrow high long) carriage format provides an extended contact length for improved moment load resistance compared to standard-length carriages, making it a preferred choice when the load is offset from the rail centerline. Two carriages on a single rail is a typical configuration for supporting a moving platform or cross-slide. Thomson guides of this era and size remain widely used in both new builds and maintenance/repair of existing machinery.
This Thomson 511H35F0 Size 35 ball linear guide rail has been inspected and appears to be in good used condition. Both Type F carriages move smoothly along the rail. The rail ends show light nicks consistent with removal and handling, visible in the close-up photo, and the carriage bodies and blue end caps show normal surface wear from prior use. The grease zerk fittings are present and accessible. Overall, this is a solid used set with no signs of significant damage or deformation. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Thomson |
Model: |
511H35F0 |
MPN: |
511H35F0 |
Type: |
Ball Linear Guide Rail with Carriages |
SKU: |
48019 |
Series / Size: |
Size 35 |
Carriage Style: |
Type F — Narrow High Long Cartridge |
Guide Plate Dimensions: |
2.75 x 4.375 in |
Rail Length: |
Approx. 16 in |
Quantity of Carriages: |
2 |
Date Code: |
KW 25/05 |
Seller Notes: |
Includes two Type F carriages mounted on one 16" rail. Rail only — no mounting hardware or additional accessories. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Rail-Mounted Linear Guide |
Compatible With: |
Thomson Size 35 linear guide systems |
Lubrication Fitting: |
Grease zerk fitting (visible on carriage end cap) |
Rail Profile: |
Profiled / crowned steel rail |
Condition Notes: |
This Thomson 511H35F0 Size 35 ball linear guide with 2 Type F carriages has been inspected and is in good used condition. Rail ends show light handling nicks; carriages and end caps show normal wear. Grease fittings present. |
