Description
Thompson SNAB2-3710X Anti-Backlash Nut w/ SRA2-3710 3/8" Lead Screw 16" Acetal

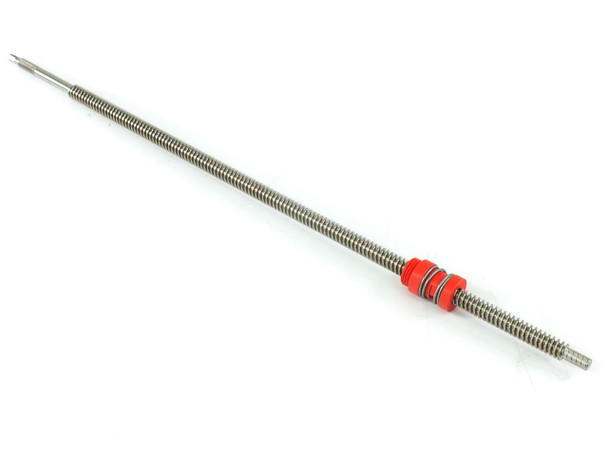

Pre-assembled anti-backlash lead screw nut on a 16-inch Thomson lead screw. The acetal nut features zero-backlash preload design for linear motion applications requiring tight tolerances.
Specifications & What's Included
- Model: SNAB2-3710X / SRA2-3710
- Lead screw length: 16 inches overall (16-1/4 in)
- Thread diameter: 3/8 inch
- Thread size: 5/8-18
- Design load: 70 lbs; max static load: 350 lbs
- Spring preload: Up to 20 lbs
- Nut material: Internally lubricated acetal
- Backlash: Zero (anti-backlash preloaded)
- Made in USA
Applications
Thomson lead screw assemblies are used in CNC machinery, automation equipment, and custom linear actuators. Anti-backlash nuts reduce play in positioning systems and are common in precision motion control where repeatability matters. This assembly fits standard Thomson actuator platforms and motion systems requiring controlled axial movement.
Condition: New
This Thompson SNAB2-3710X anti-backlash Supernut and SRA2-3710 lead screw assembly is new and unused. These parts were made for a custom application and were never installed or put into service. The assembly is in original new condition and arrives in its original packaging as seen in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Thompson SNAB2-3710X anti-backlash Supernut and SRA2-3710 lead screw assembly is new and unused. These parts were made for a custom application and were never installed or put into service. The assembly is in original new condition and arrives in its original packaging as seen in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Thomson |
Model: |
SNAB2-3710X |
Secondary Model: |
SRA2-3710 |
MPN: |
SNAB2-3710X |
SKU: |
52492 |
Type: |
Anti-Backlash Lead Screw Nut Assembly |
Lead Screw Length: |
16 in (16-1/4 in overall) |
Thread Diameter: |
3/8 in |
Nut Diameter: |
5/8 in |
Thread Size: |
5/8-18 |
Design Load: |
70 lbs |
Max Static Load: |
350 lbs |
Spring Preload: |
Up to 20 lbs |
Nut Material: |
Internally lubricated Acetal |
Backlash: |
Zero backlash (anti-backlash preloaded) |
Application: |
Linear motion, CNC, automation, custom actuator |
Seller Notes: |
Includes SNAB2-3710X anti-backlash nut assembled on matching 16" SRA2-3710 lead screw |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Thompson SNAB2-3710X lead screw and anti-backlash nut assembly is new and unused. Made for a custom application, never installed. Original new condition in original packaging. |
