Thermotron

Thermotron SM-16-SL Environmental Test Chamber 460V 20-95% Humidity 30x30x30

(No reviews yet) Write a Review
SKU:
50313
MPN:
SM-16-SL
Condition:
Used
Availability:
This item is available and located at our facility. Please contact us for freight shipping arrangements prior to purchase.
Weight:
1,701.00 LBS
Shipping:
Calculated at Checkout

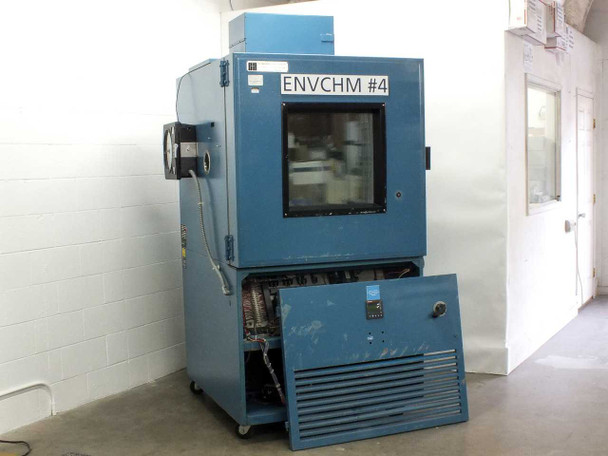

  • Thermotron SM-16-SL environmental test chamber front view with lower access panel open showing internal wiring and control components, unit labeled ENVCHM #4

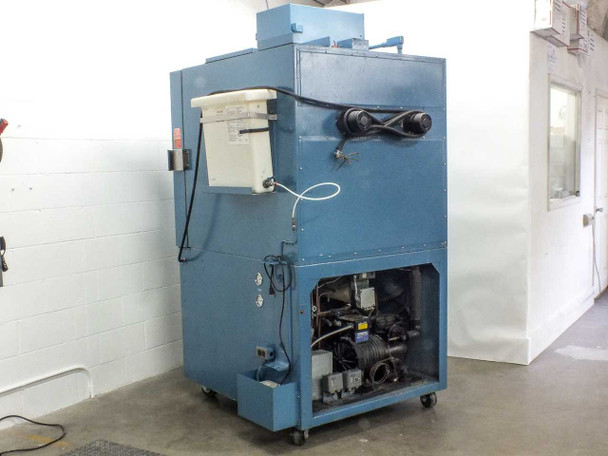

  • Thermotron SM-16-SL environmental test chamber rear view showing refrigeration compressor section and top-mounted ductwork connections
  • Thermotron SM-16-SL rating plate showing model SM-16-SL, serial 20849, 460-1-60 electrical, 25A max load, R13 refrigerant, humidity 20% to 95%, date shipped 10-21-91
  • Thermotron SM-16-SL environmental test chamber front view with lower panel open exposing control wiring harness and relay bank, door closed

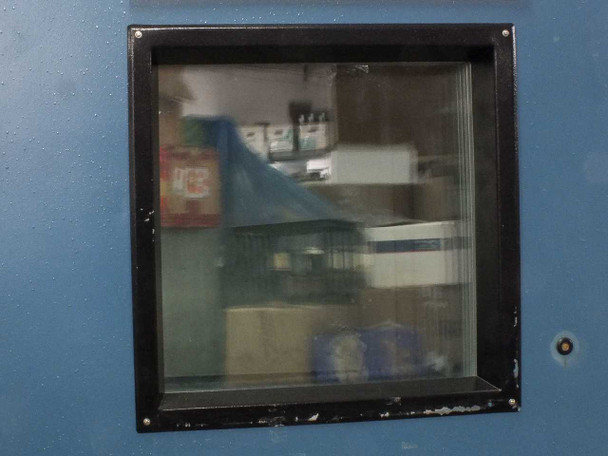

  • Close-up of Thermotron SM-16-SL chamber door viewport window with reinforced glass panel
  • Thermotron SM-16-SL chamber interior view with door open showing stainless steel interior walls and open bottom access panel with wiring exposed

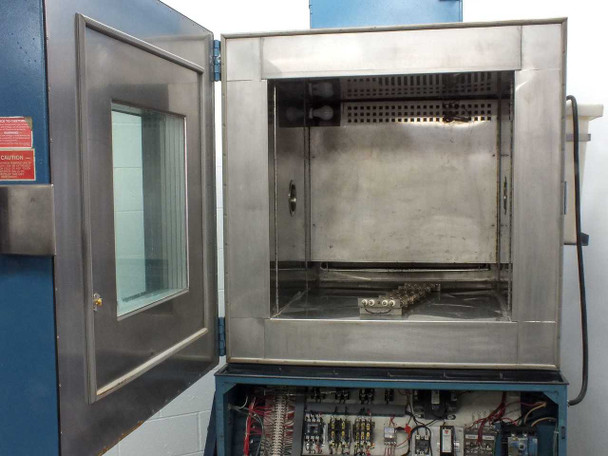

  • Thermotron SM-16-SL chamber interior close-up with door open, stainless steel inner chamber walls and perforated ceiling diffuser plate visible

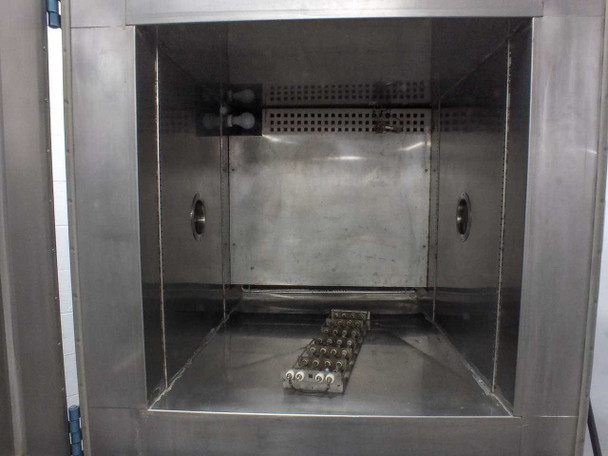

  • Thermotron SM-16-SL stainless steel inner chamber interior showing side ports, perforated diffuser panels, and test fixture rack on chamber floor

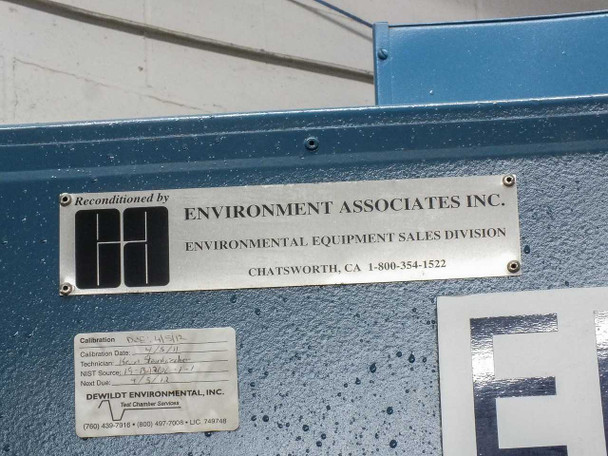

  • Thermotron SM-16-SL exterior panel showing Environment Associates Inc. reconditioner plate and Dewildt Environmental Inc. calibration sticker
  • Close-up of Thermotron SM-16-SL door latch and handle assembly with safety warning decal visible

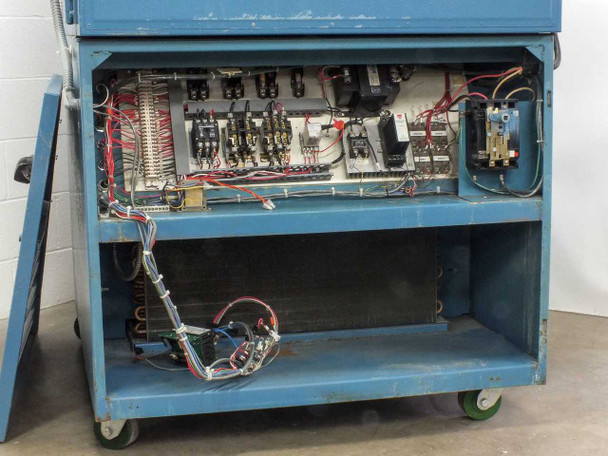

  • Thermotron SM-16-SL lower control compartment with access panel removed, showing relay contactors, terminal strips, and wiring harness

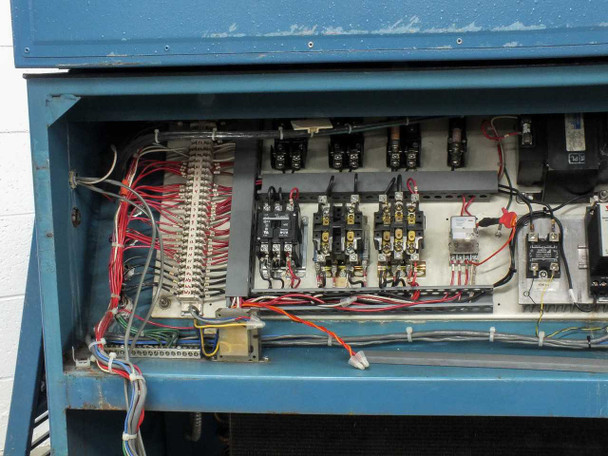

  • Close-up of Thermotron SM-16-SL control panel interior showing contactor bank, terminal blocks, and relay array

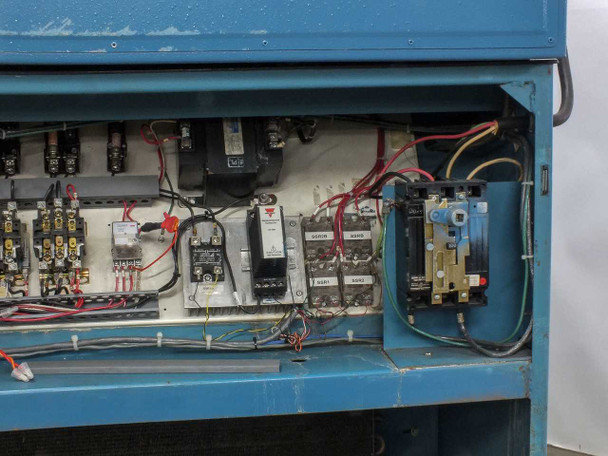

  • Thermotron SM-16-SL control section close-up showing solid-state relays, power contactors, and wiring connections

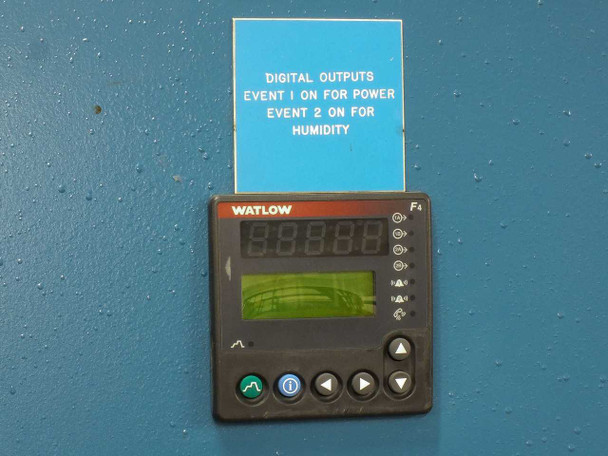

  • Thermotron SM-16-SL Watlow F4 digital controller mounted on chamber exterior with digital output label for Event 1 (power) and Event 2 (humidity)
  • Close-up of Thermotron SM-16-SL broken door key switch labeled RESET / OFF showing damaged switch body

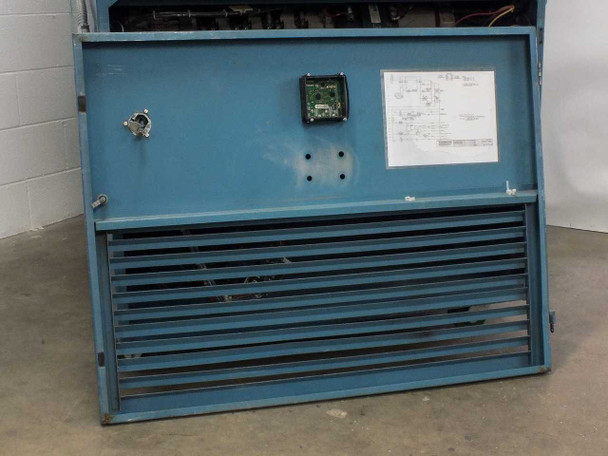

  • Thermotron SM-16-SL side panel removed showing louvered ventilation grille, wiring schematic mounted inside panel door, and small control module

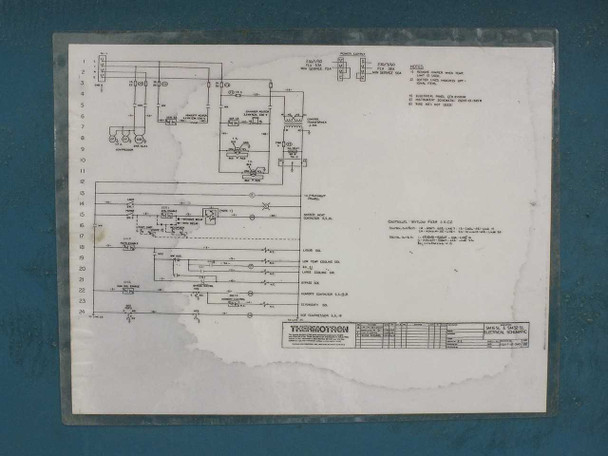

  • Thermotron SM-16-SL wiring schematic diagram mounted inside access panel, Thermotron Industries title block visible
  • Thermotron SM-16-SL rear view showing refrigeration compressor section exposed at lower rear and top cable routing

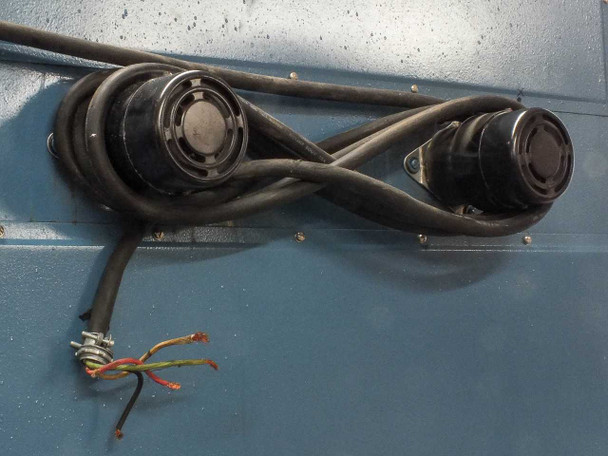

  • Thermotron SM-16-SL power cable connections showing two large twist-lock connectors and pigtail wiring leads

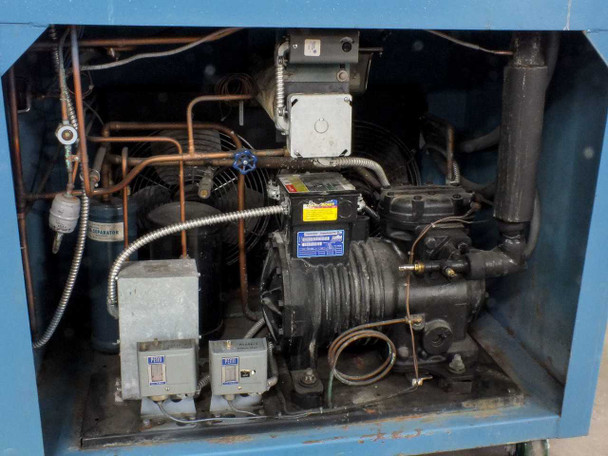

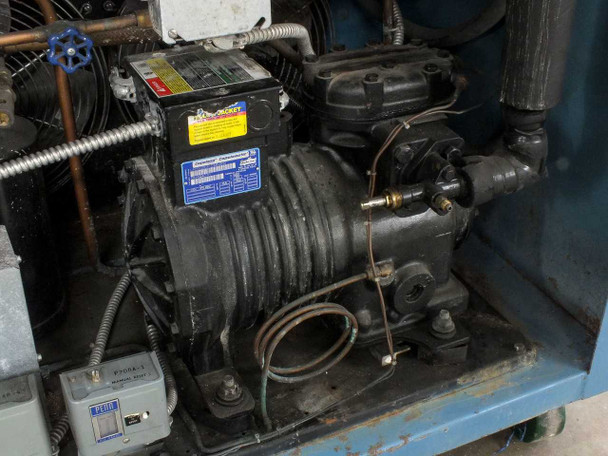

  • Thermotron SM-16-SL refrigeration compressor compartment showing compressor, copper refrigerant lines, and two Friga-Bohn or similar compressor start capacitor/relay boxes
  • Thermotron SM-16-SL Environmental Test Chamber with 20-95 Percent Humidity Opt.
  • Thermotron SM-16-SL Environmental Test Chamber with 20-95 Percent Humidity Opt.
  • Thermotron SM-16-SL Environmental Test Chamber with 20-95 Percent Humidity Opt.
  • Thermotron SM-16-SL Environmental Test Chamber with 20-95 Percent Humidity Opt.
  • Thermotron SM-16-SL Environmental Test Chamber with 20-95 Percent Humidity Opt.
  • Thermotron SM-16-SL Environmental Test Chamber with 20-95 Percent Humidity Opt.
  • Thermotron SM-16-SL Environmental Test Chamber with 20-95 Percent Humidity Opt.
  • Thermotron SM-16-SL Environmental Test Chamber with 20-95 Percent Humidity Opt.
$2,000.00
Was: $4,000.00
Current Stock: 1

Sold Out

Description

Thermotron SM-16-SL Environmental Test Chamber 460V 20-95% Humidity 30x30x30

Floor-standing environmental chamber designed for temperature and humidity stress testing. Features a 30" x 30" x 30" inner chamber with a Watlow Series F4 temperature controller and R13 refrigerant system.

Specifications & What's Included

  • Power: 460V, Single Phase, 60Hz, 25A Max Load (30A recommended service)
  • Temperature & Humidity Range: 20% to 95% RH, 5°C DP to 85°C DB
  • Inner Chamber: 30" W x 30" D x 30" H (approximately 16 cubic feet)
  • Overall Dimensions: 59" W x 59" D x 92" H
  • Largest Motor: 2 HP / 14.5A
  • Refrigerant: R13 (8 lbs)
  • Controller: Watlow Series F4

Applications

Environmental chambers like the SM-16 series are used for accelerated stress testing of electronic components, telecom equipment, and industrial products. Testing simulates temperature and humidity conditions to evaluate performance and durability across extreme operating environments. This chamber type is compatible with Thermotron SM-16 series components and spare parts.

Condition: For Parts or Not Working
This Thermotron SM-16-SL Environmental Test Chamber is being offered as-is for parts or refurbishment. We are unable to power or test this unit at our facility, and it is therefore sold without any guarantee of functionality. Per the original labeling, the chamber was previously reconditioned by Environment Associates Inc. (Chatsworth, CA) and carries a Dewildt Environmental Inc. calibration sticker, suggesting it was actively maintained during its service life. Visible during inspection: the door key/reset switch is broken and missing its handle (see photo), the lower control access panel is removed and electrical wiring is exposed, and the interior stainless steel chamber walls appear intact with no visible deformation. The refrigeration compressor is present in the lower compartment. The Watlow F4 digital controller is mounted on the exterior panel. The exterior blue painted cabinet shows typical wear consistent with industrial service use. This unit is best suited for buyers seeking a source of parts, or for those with the technical capability to assess and refurbish it. Please review our full photo set carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Thermotron
Model:
SM-16-SL
MPN:
SM-16-SL
Type:
Environmental Test Chamber (Temperature & Humidity)
SKU:
50313
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or refurbishment; unable to test
Country/Region of Manufacture:
United States
Form Factor:
Floor-Standing / Freestanding
Power Requirements:
460V, Single Phase, 60Hz, 25A Max Load
Voltage Rating:
460V
Current Rating:
25A Max Load; Recommended Service: 30A
Phase:
Single Phase
Frequency:
60 Hz
Largest Motor:
2 HP / 14.5A
Refrigerant:
R13 (8 lbs)
Humidity Range:
20% to 95% RH
Humidity Limits:
5°C DP to 85°C DB
Inner Chamber Dimensions:
30" W x 30" D x 30" H
Overall Dimensions:
59" W x 59" D x 92" H
Chamber Volume:
Approx. 16 cubic feet (SM-16 series)
Temperature Controller:
Watlow Series F4
Date Shipped (Original):
October 21, 1991
Application / Use Case:
Temperature/humidity environmental stress testing
Compatible With:
Thermotron SM-16 series components and spares
Condition Notes:
Thermotron SM-16-SL Environmental Test Chamber sold as-is for parts or refurbishment. We are unable to test this unit. Broken door switch noted. Wiring and compressor present. No functionality guaranteed. Please contact us with questions.
