Thermotron Console Productsaver Environmental Chamber Controller 115V 1Ph

Thermotron Console Productsaver Environmental Chamber Controller 115V 1Ph

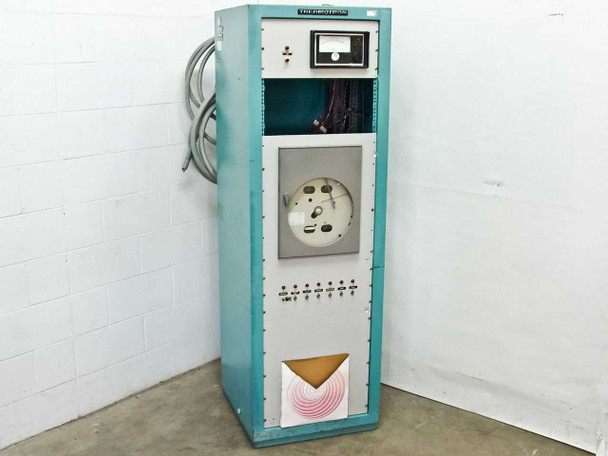

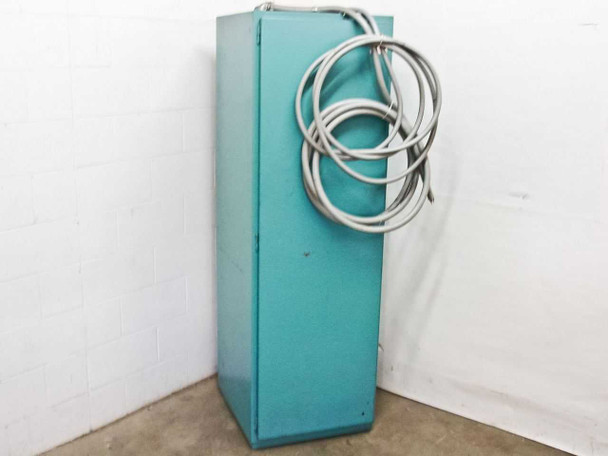

This is a Thermotron Console-model environmental chamber controller featuring the Productsaver temperature limit safety system. The unit is a floor-standing teal cabinet housing all control electronics for an environmental test chamber, including an analog temperature meter with both Fahrenheit and Centigrade scales, high and low limit switch assemblies, thermocouple input circuitry, and a full set of function toggle switches. A Honeywell chart recorder is mounted in its own door-access compartment in the lower cabinet section. The Productsaver section provides failsafe limit protection — limit switches are de-energized during limit conditions and when power is removed, per the panel label.

Specifications & What's Included

• Manufacturer: Thermotron Corp., Holland, MI 49423
• Model: Console (Productsaver Temperature Control)
• Input Voltage: 115V AC
• Phase: Single Phase (1 Ph)
• Frequency: 60 Hz
• Max Load Amps: 5A
• Wiring Schematic: WOE5418-1, 2W
• Thermocouple Input: Cu vs. C (Type T only)
• Limit Switches: High Limit Switch and Low Limit Switch (failsafe, de-energized on limit or power loss)
• Front-panel analog temperature meter: Fahrenheit (−125 to 375°F) and Centigrade (−50 to 150°C) dual scales
• Function toggle switches: Vibration, Auxiliary Cool, Cooling, Heating, Circulator, Light, Pilot
• Indicator lights: individual pilot lamps for each function
• Refrigeration Trip indicator on front panel
• Limit / Mute control and set point knob on front panel
• Honeywell chart recorder mounted in lower cabinet compartment

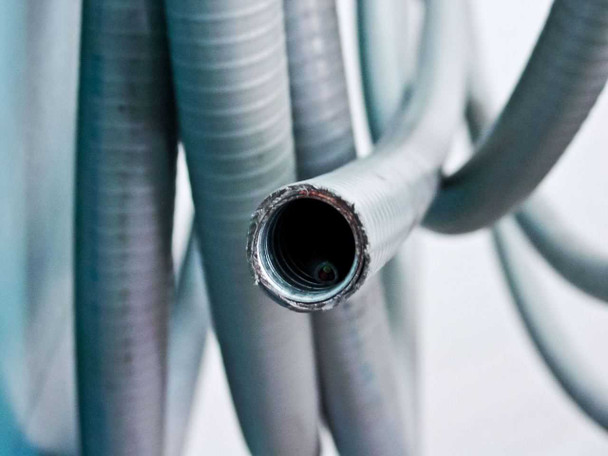

• Armored flexible conduit cable harness attached
• UL Listed: Enclosed Industrial Control Panel No. A 115324
• Country of Manufacture: USA
• Form Factor: Floor-standing console cabinet

Applications

Thermotron environmental test chambers and their associated console controllers are used in product reliability and environmental stress testing — subjecting electronic assemblies, components, and mechanical parts to controlled temperature and humidity cycles to screen for failures. The Productsaver system is a safety feature found on Thermotron chambers from the 1970s through the 1990s that protects the product under test by cutting chamber functions when temperatures exceed set limits. Console controllers of this type serve as the central control and safety hub for a separate environmental chamber enclosure, connecting via the armored wiring harness to the chamber's heating, cooling, refrigeration, vibration, and circulator systems. They were commonly used in aerospace, defense, electronics manufacturing, and industrial quality assurance facilities. Thermotron, headquartered in Holland, Michigan, has been a major manufacturer of environmental test chambers since the 1960s, and replacement or spare console controllers are sought by facilities maintaining legacy Thermotron chamber systems.
