Description
ThermoTek T255P Solid State Recirculating Chiller 625W 100-240VAC RS-232 -5°C
The ThermoTek T255P is a compact, solid-state recirculating chiller that uses thermoelectric (Peltier) technology to provide precise, programmable liquid temperature control for heating and cooling applications. It features a digital LCD display, front-panel controls, a brushless DC centrifugal pump, and an RS-232 serial interface for computer-controlled operation. The unit accepts universal AC input voltage, making it compatible with both North American and international power systems without a transformer.
Specifications & What's Included
- Model: ThermoTek T255P (variant 1R) — Part No. 0P9T255P10
- Cooling technology: Solid-state thermoelectric (Peltier) — no compressor
- Temperature range: -5°C to 45°C (with glycol/water mixture coolant)
- Cooling capacity: 210W at ambient setpoint
- Temperature stability: ±0.1°C at 0.6 gpm constant load
- Pump type: Brushless DC centrifugal
- Flow rate: 1.0 gpm (3.86 L/min) open flow
- Reservoir capacity: 444 mL (15 oz) with leak-free quick-disconnect fittings
- Input voltage: 100–240 VAC, 50/60 Hz, single phase
- Max current: 7.5A
- Power consumption: 625W
- Communication interface: RS-232 serial with software control support

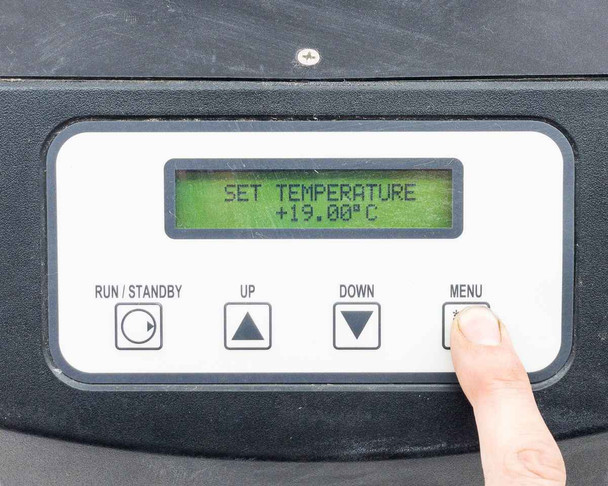

- Display: LCD with RUN/STANDBY, UP, DOWN, and MENU front-panel controls
- Fan motor: Brushless DC

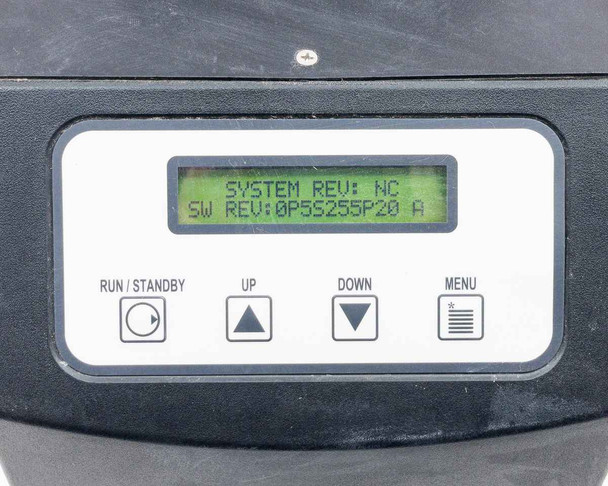

- Software revision: 0P5S255P20 A (visible on display)
- Certifications: ETL Listed, CE
- Manufactured: June 2015
- Carry handle integrated into top of chassis
- Chiller unit only — no coolant included
Applications
Solid-state recirculating chillers like the T255P are used wherever stable, programmable liquid temperature control is needed in a compact, portable package. Common applications include cooling laser diodes, CCD/CMOS imaging sensors, RF power amplifiers, and other heat-generating electronic components; temperature-controlled sample stages in optical and electron microscopy; reaction temperature control in chemistry and pharmaceutical lab work; and burn-in or thermal cycling of electronic assemblies during testing. Because the T255P uses Peltier thermoelectric modules rather than a compressor, it produces no vibration and very little acoustic noise — an important advantage in vibration-sensitive optical, metrology, and semiconductor lab environments. The RS-232 interface allows integration with automated test equipment (ATE) setups and data acquisition systems for fully computer-controlled thermal management. The universal voltage input makes it straightforward to use internationally or to move between facilities without voltage adapters.

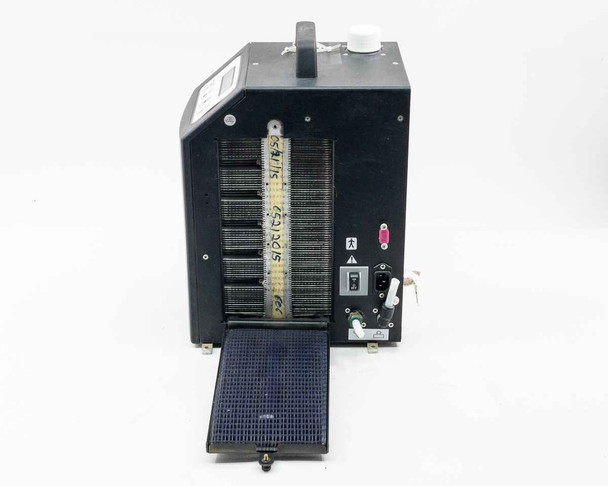

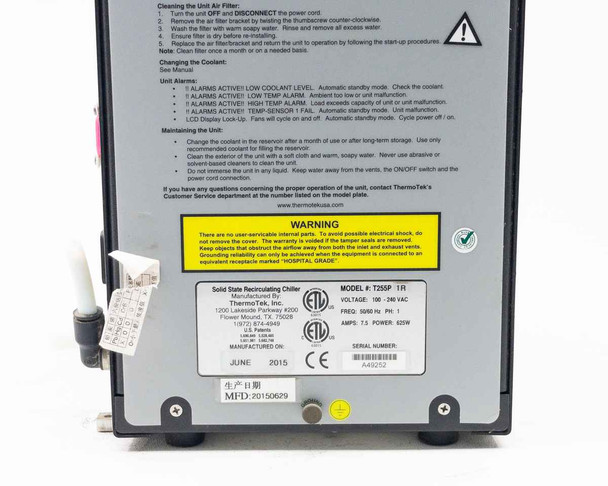

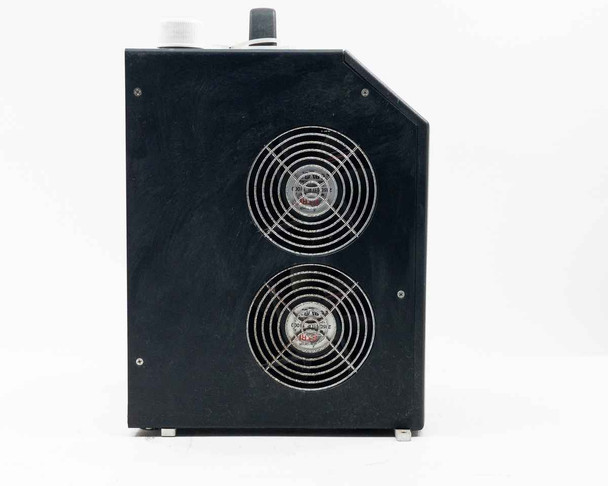

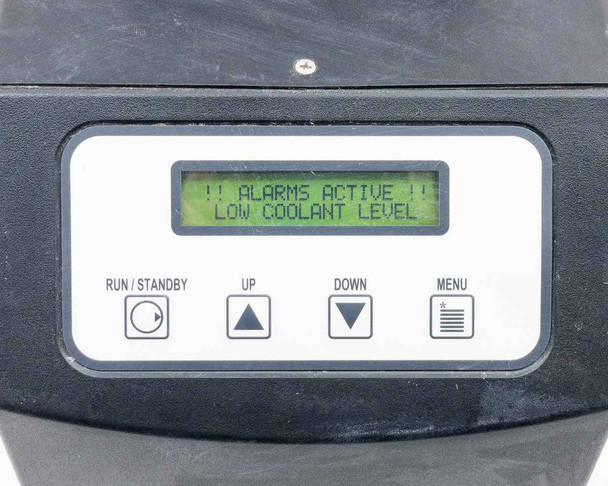

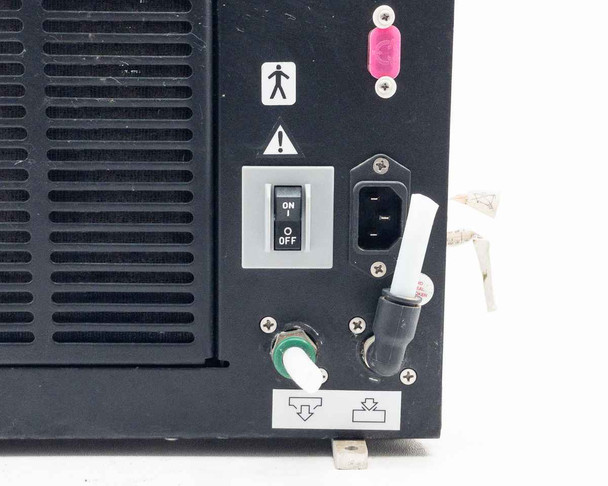

This ThermoTek T255P Solid State Recirculating Chiller has been tested at our facility and is fully functional — it cooled from 27.0°C down to 3.0°C in under 10 minutes during testing. The unit powers on normally and the LCD display and controls respond correctly. You may notice a 'Low Coolant Level' alarm in our photos; the reservoir was empty during photography, which is expected and not a defect. Cosmetically the unit is in good used condition with normal surface wear typical of lab equipment. The photos show the front panel, rear rating plate, side panel, and fluid connections — please review them for full cosmetic detail. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ThermoTek |
Model: |
T255P |
MPN: |
0P9T255P10 |
Secondary Model: |
T255P 1R |
SKU: |
53285 |
Type: |
Solid State Recirculating Chiller |
Seller Notes: |
Chiller unit only — no coolant included. Check photos for all visible accessories. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Portable |
Power Requirements: |
100-240 VAC, 50/60 Hz, 1 Phase, 7.5A max |
Power Consumption: |
625W |
Temperature Range: |
-5°C to 45°C (with glycol coolant) |
Temperature Stability: |
±0.1°C at 0.6 gpm constant load |
Cooling Capacity: |
210W at ambient setpoint |
Cooling Technology: |
Thermoelectric (Peltier / Solid State) |
Pump Type: |
Centrifugal, brushless DC |
Flow Rate: |
1.0 gpm (3.86 L/min) open flow |
Reservoir Capacity: |
444 mL (15 oz) |
Interface: |
RS-232 serial |
Connector Type: |
Leak-free quick disconnects |
Certifications: |
ETL Listed, CE |
Software Revision: |
0P5S255P20 A |
Manufacture Date: |
June 2015 |
Condition Notes: |
This ThermoTek T255P Solid State Recirculating Chiller has been tested at our facility and is fully functional — cooled from 27°C to 3°C in under 10 minutes. Good used condition with normal wear. Please contact us with any questions. |
