Description
Thermolyne AY106X1A Hot Plate Oven Double-Walled Benchtop Lab Stainless 0.125FT

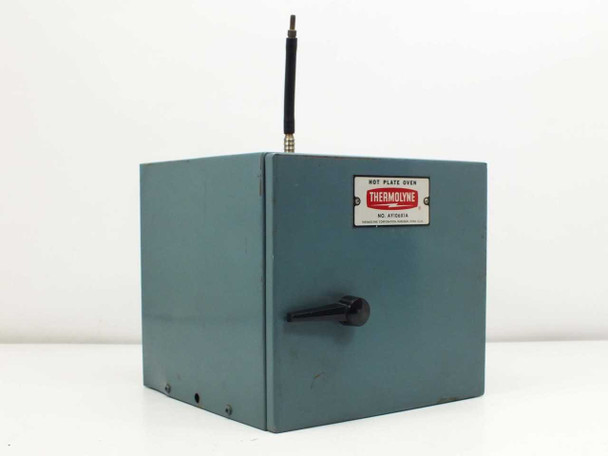

The Thermolyne AY106X1A is a compact, double-walled benchtop hot plate oven designed for laboratory use. It combines a heated chamber with a door-mounted hot plate surface in a single self-contained unit, making it well suited for applications requiring both dry heat and direct surface heating in a small footprint. Manufactured by Thermolyne Corporation of Dubuque, Iowa, this is a sturdy, all-steel construction unit with a stainless steel interior chamber.
Specifications & What's Included
- Model: Thermolyne AY106X1A
- Type: Double-Walled Hot Plate Oven
- Exterior Dimensions: 8.5" Wide × 7.5" Tall × 9" Deep
- Chamber Dimensions: 6.5" Wide × 6" Tall × 6" Deep
- Chamber Volume: 0.125 FT³
- Interior Material: Stainless steel
- Shelf Mounts: 2 levels (side-wall rail system)
- Shelf: One wire mesh/perforated shelf included
- Hot Plate Surface (door-mounted): 6.25" × 6.25", 0.5" recess depth
- Door Seal: Yellow foam/rubber insulating gasket around door perimeter
- Exterior: Painted steel, teal/blue-green finish
- Door Latch: Rotary cam-style handle
- Thermocouple Probe: Present, extending from top of unit
- Form Factor: Benchtop
- Manufacturer: Thermolyne Corporation, Dubuque, Iowa, USA
Applications
Thermolyne hot plate ovens are used in research, chemistry, biology, and industrial laboratories for low-temperature drying, sample warming, evaporation, and general bench heating tasks. The double-walled construction helps maintain stable internal temperatures and reduces exterior surface heat. The door-mounted hot plate section provides a separate direct-contact heating surface — useful for warming beakers, flasks, or other vessels while the main chamber heats samples simultaneously. Units of this size and type are commonly found in university labs, industrial QC labs, and research facilities where a compact, self-contained heating unit is needed. Thermolyne (later acquired by Barnstead International and subsequently part of Thermo Fisher Scientific) produced this style of combination oven through the mid-to-late twentieth century; this model is typical of their durable benchtop line from that era.

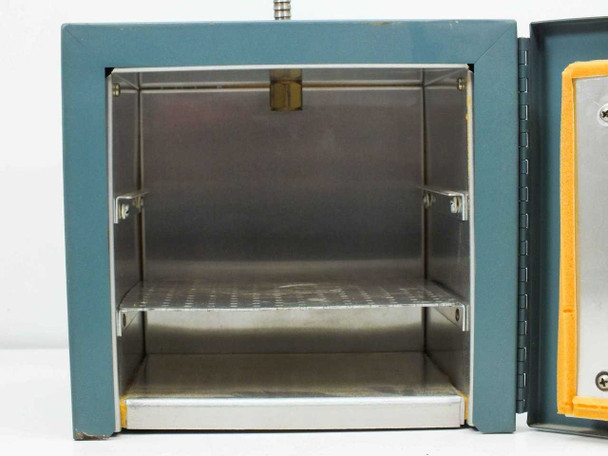

This Thermolyne AY106X1A Hot Plate Oven has been inspected and is in good used condition overall. The stainless steel interior chamber, shelf support rails, and door-mounted hot plate surface all appear clean and intact. The exterior teal painted steel shows surface oxidation and rust spotting, primarily on the rear panel, which is normal for equipment of this age — the housing is otherwise solid and complete. The yellow door gasket is present and intact. The unit has not been powered up or tested at our facility, but it came out of a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Thermolyne |
Model: |
AY106X1A |
MPN: |
AY106X1A |
Type: |
Hot Plate Oven |
SKU: |
47411 |
Construction: |
Double-Walled |
Interior Material: |
Stainless Steel |
Exterior Dimensions: |
8.5" W x 7.5" T x 9" D |
Chamber Dimensions: |
6.5" W x 6" T x 6" D |
Chamber Volume: |
0.125 FT³ |
Number of Shelf Levels: |
2 |
Hot Plate Surface Dimensions: |
6.25" x 6.25" x 0.5" deep |
Form Factor: |
Benchtop |
Door Seal: |
Foam/Rubber Gasket |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Oven unit only — no additional accessories included. |
Condition Notes: |
Thermolyne AY106X1A Hot Plate Oven in good used condition. Stainless interior, shelf rails, and door hot plate surface intact. Exterior shows surface rust/oxidation on rear panel. Not powered at our facility; pulled from a working environment. |
