Thermo Scientific CN509X17 Locator 4 Cryogenic Rack Box System LN2 Monitor

(No reviews yet) Write a Review
SKU:
53012
MPN:
CN509X17
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
95.00 LBS
Shipping:
Calculated at Checkout
  • Thermo Scientific Locator 4 CN509X17 cryogenic storage vessel – front view on wheeled platform dolly
  • Thermo Scientific Locator 4 CN509X17 cryogenic vessel – second front view showing Locator 4 label and orange lid
  • Thermo Scientific CN509X17 Locator 4 lid top label – showing Model 316374, 15VDC 20A rating, CAT# CN509X17, serial number, and CE/CSA markings
  • Thermo Scientific CN509X17 lid underside label showing CAT# CY509107 and Made in USA manufacture date 8/20/10
  • Thermo Scientific Locator 4 CN509X17 orange lid top-down view with ultrasonic liquid nitrogen monitor mounted on lid showing RESET button and indicator panel
  • CN509X17 Locator 4 lid assembly removed showing foam inner plug and interior narrow-mouth opening with hanging rack mechanism visible
  • Thermo Scientific Locator 4 CN509X17 interior vessel view looking down showing stainless steel hanging rack frame seated inside
  • Thermo Scientific Locator 4 hanging stainless steel rack assembly suspended above vessel opening, showing multi-tier gridded box rack design
  • Thermo Scientific Locator 4 CN509X17 interior view looking down into empty vessel showing bottom fitting and green fiberglass inner wall
  • CN509X17 Locator 4 vessel side label – Airgas Healthcare GMP Medical Nitrogen UN1977 refrigerated liquid nitrogen hazmat label
  • Thermo Scientific Locator 4 CN509X17 base and wheeled platform dolly closeup showing caster wheels and scuffing on lower vessel exterior
  • Thermo Scientific Locator 4 CN509X17 cryogenic vessel – three-quarter front view on wheeled dolly
  • Thermo Scientific Locator 4 CN509X17 – side view showing vessel exterior and orange lid with level monitor
  • Thermo Scientific Locator 4 CN509X17 – rear three-quarter view showing vessel exterior wear and wheeled dolly platform
$2,500.00
Was: $7,000.00
Current Stock: 1

Sold Out

Description

Thermo Scientific CN509X17 Locator 4 Cryogenic Rack Box System LN2 Monitor

Cryogenic storage system for biological samples requiring long-term preservation below -180°C using liquid nitrogen. Designed for high-capacity sample organization and monitoring in biotech and research environments.

Specifications & What's Included

  • Model: CN509X17 (MPN: CN509X17, Secondary: 316374)
  • Capacity: 3,600 samples (100 per box)
  • Storage Temperature: Below -180°C
  • Static Holding Time: 112 days
  • Evaporation Rate: 0.99 L/day
  • Advanced vacuum insulation with narrow-mouth design
  • Ultrasonic liquid nitrogen level monitor with AC adapter
  • Includes hanging rack, wheeled platform dolly, secure locking hasp
  • Power Requirements: 15VDC, 20A

Applications

This Locator 4 system is used for cryogenic storage of biological samples including cell lines, tissues, and genetic material. Compatible with Thermo Scientific Locator cryogenic box systems. The ultrasonic LN2 monitor provides continuous level tracking without sample disruption. Commonly deployed in biotech labs, research institutions, and clinical facilities requiring extended sample viability with minimal evaporation loss.

Condition: Used
This Thermo Scientific CN509X17 Locator 4 Cryogenic Rack and Box System was sourced from a local biotech research company that closed. The vessel exterior shows scuffing and surface marks consistent with lab use, most visible on the lower body and base area. The orange lid assembly, hanging stainless steel rack, wheeled platform dolly, and ultrasonic liquid nitrogen level monitor with AC adapter are all included. Please review our photos carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Thermo Scientific
Model:
CN509X17
MPN:
CN509X17
Secondary Model:
316374
SKU:
53012
Type:
Cryogenic Rack and Box Storage System
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes hanging rack, ultrasonic LN2 level monitor, AC adapter, and wheeled platform
Country/Region of Manufacture:
United States
Power Requirements:
15VDC, 20A
Application / Use Case:
Biological sample cryogenic storage below -180°C
Storage Temperature:
Below -180°C
Evaporation Rate:
0.99 L/day
Static Holding Time:
112 days
Capacity:
3600 samples (100 per box)
Cryogen Type:
Liquid Nitrogen (LN2)
Level Monitor Type:
Ultrasonic Liquid Nitrogen Monitor
Form Factor:
Freestanding with wheeled platform dolly
Compatible With:
Thermo Scientific Locator cryogenic box systems
Locking:
Secure locking hasp
Insulation Type:
Advanced vacuum insulation, narrow-mouth design
Condition Notes:
Thermo Scientific CN509X17 Locator 4 Cryogenic System sourced from a closed biotech lab. Shows typical lab wear on exterior. Includes hanging rack, LN2 level monitor, AC adapter, and wheeled dolly. Please contact us with questions.
View AllClose

Related Products

Related Products

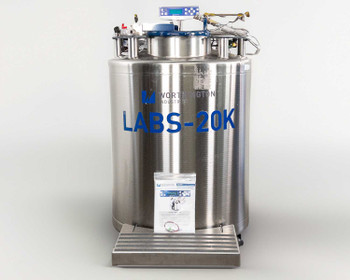

Worthington Industries LABS20K-CS LN2 cryogenic freezer — front view showing stainless steel tank body and CS200 controller on top, with locking step at base Worthington LABS20K-CS cryogenic freezer — three-quarter front view showing CS200 controller display, plumbing connections on top, and fill hose fittings
