Description

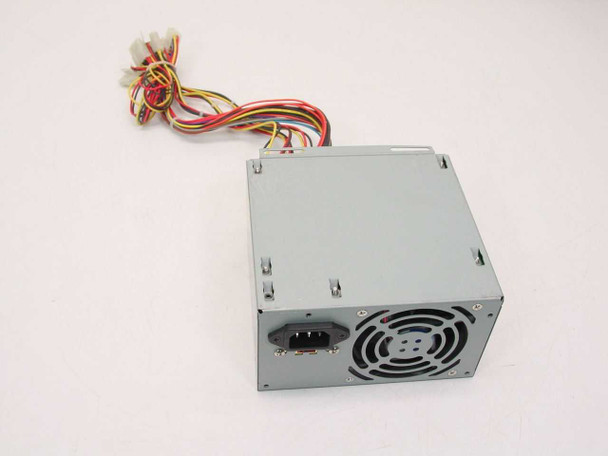

TGR FA-250NI6 250W ATX Desktop Switching Power Supply 115V 230V Rev 1.03
The TGR FA-250NI6 is a 250W ATX-form-factor switching power supply designed for desktop computer systems. It accepts dual AC input voltages — approximately 115V at 6.4A or 230V at 3.5A — selectable via a rear-panel slide switch, and delivers regulated DC outputs across the standard ATX voltage rails. The unit includes a single 80mm cooling fan for internal thermal management.
Specifications & What's Included
- Model: TGR FA-250NI6 | Revision: Rev 1.03
- Form factor: ATX desktop
- Max DC output: 250W
- AC input: ~115V / 6.4A or ~230V / 3.5A, 50/60Hz
- DC outputs: +5V @ 25A, +3.3V @ 14A, -5V @ 0.5A, -12V @ 1A, +5VSB @ 3A, +12V @ 10A
- Connectors: 20-pin ATX motherboard, multiple 4-pin Molex peripheral, floppy power
- Cooling: 80mm case fan
- Certifications: FCC, CE, CB, TUV, UL (E139881)
- Manufactured in China
- Included: power supply unit with all attached output harnesses
Applications
ATX switching power supplies of this class were the standard power source for mid-1990s through early-2000s desktop PCs built around the ATX specification. The FA-250NI6 is suited for use as a direct replacement or spare in legacy ATX desktop systems, small form-factor workstations, and DIY or repair projects requiring a 250W ATX unit. The dual-voltage input selector makes it compatible with both North American and international AC mains.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
This TGR FA-250NI6 250W ATX Desktop Switching Power Supply has been tested at our facility and confirmed to be in working order. The unit is in good used condition with typical light surface wear consistent with prior desktop deployment. The enclosure, fan, IEC inlet, voltage selector switch, and output harness connectors all appear intact and undamaged in our inspection. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
TGR |
Model: |
FA-250NI6 |
MPN: |
FA-250NI6 |
SKU: |
19068 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; all attached harnesses and connectors included |
Form Factor: |
ATX Desktop |
Power Output: |
250W Max |
AC Input Voltage: |
~115V 6.4A / ~230V 3.5A |
Frequency: |
50/60Hz |
DC Output +5V: |
25A |
DC Output +3.3V: |
14A |
DC Output -5V: |
0.5A |
DC Output -12V: |
1A |
DC Output +5VSB: |
3A |
DC Output +12V: |
10A |
Total DC Output: |
250W Max; Total -115W rail; 1A Max combined |
Revision: |
Rev 1.03 |
Voltage Selector: |
Manual slide switch (115V / 230V) |
Connector Types: |
ATX 20-pin, Molex 4-pin, floppy power |
Cooling: |
Single 80mm case fan |
Certifications: |
FCC, CE, CB, TUV, UL (E139881) |
Country of Manufacture: |
China |
Compatible With: |
ATX desktop computers with ATX power supply bay |
Power Requirements: |
~115V 6.4A or ~230V 3.5A, 50/60Hz |
Condition Notes: |
This TGR FA-250NI6 250W ATX switching power supply has been tested and confirmed working. Good used condition with light surface wear. Enclosure, fan, IEC inlet, selector switch, and connectors intact. |
