Teltrend

Teltrend 390ALCD Digital T1 CSU Single Mount w/ Lock RJ-48C Terminal Block

(No reviews yet) Write a Review
SKU:
34527
MPN:
390ALCD
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

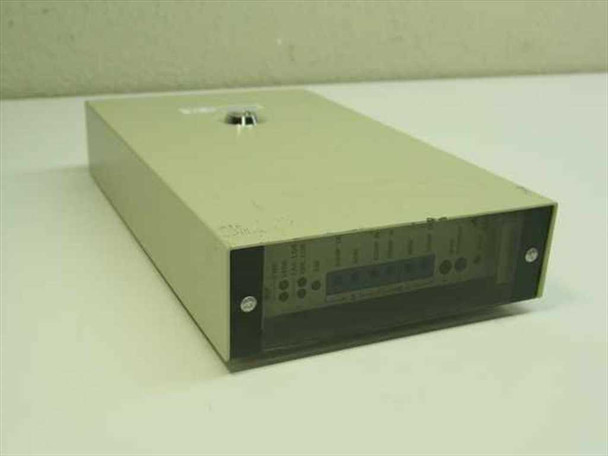

  • Teltrend 390ALCD Digital T1 CSU – front-left angled view showing front panel LED indicators and housing

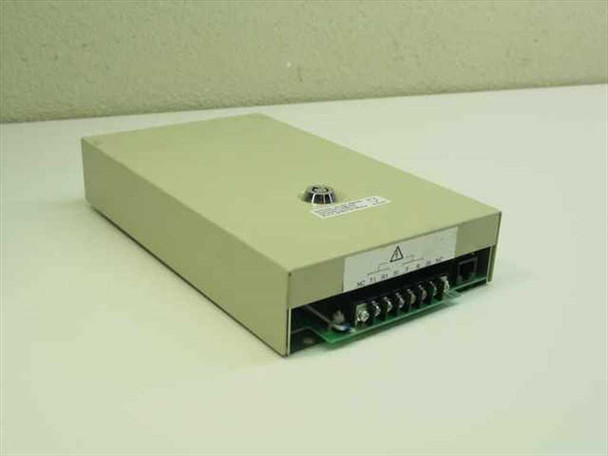

  • Teltrend 390ALCD Digital T1 CSU – rear view showing terminal block connections and RJ-48C interface

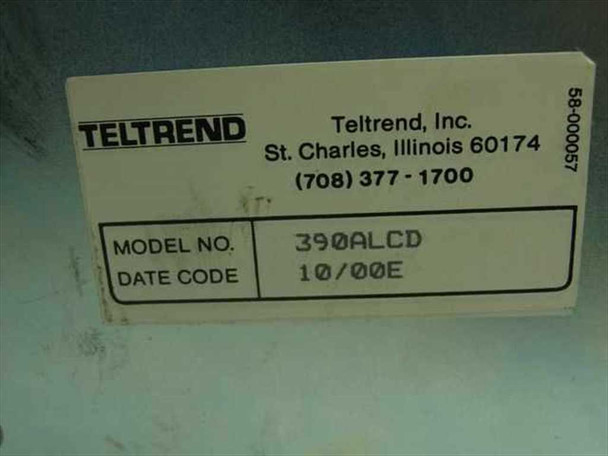

  • Teltrend 390ALCD label showing model number 390ALCD, date code 10/00E, and Teltrend Inc. St. Charles IL contact info

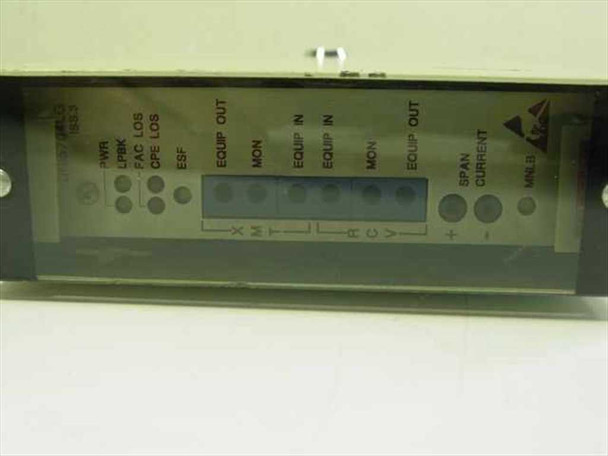

  • Teltrend 390ALCD front panel close-up showing PWR, LPMK, PAC LOS, CPE LOS, ESF, MON, EQUIP IN, EQUIP OUT, SPAN CURRENT, and MNLS LED indicators
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

Teltrend 390ALCD Digital T1 CSU Single Mount w/ Lock RJ-48C Terminal Block

A Channel Service Unit (CSU) for T1 digital telecom circuits. This device terminates and conditions T1 signals between network and customer premise equipment (CPE), supporting ESF framing protocol.

Specifications & What's Included

  • Model: 390ALCD
  • Interface: T1 with RJ-48C connector and terminal block
  • Protocol: T1 ESF
  • Mount Type: Single mount with lock
  • Form Factor: Desktop/standalone
  • LED Indicators: PWR, LPMK, PAC LOS, CPE LOS, ESF, MON, EQUIP IN/OUT, SPAN CURRENT, MNLS
  • Date Code: 10/00E
  • Unit only—no cables or accessories included

Applications

T1 CSUs were standard interface devices in telecom networks for decades, bridging carrier T1 lines to business phone systems, data routers, and other CPE. This unit supports both ESF and D4 framing modes, making it compatible with legacy and standard T1 network deployments. Commonly used in enterprise telecom closets and remote site installations.

Condition: Used
This Teltrend 390ALCD Digital T1 CSU has been inspected and is in good condition. The housing shows light surface wear consistent with normal use. The front panel LED indicators and labeling are clean and readable. The rear terminal block and RJ-48C connector area appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Teltrend
Model:
390ALCD
MPN:
390ALCD
Type:
Digital T1 Channel Service Unit (CSU)
SKU:
34527
Condition:
Used – Inspected
Interface Type:
T1, RJ-48C
Connector Type:
RJ-48C, Terminal Block
Protocol:
T1 ESF
Mount Type:
Single Mount with Lock
Form Factor:
Desktop / Standalone
Date Code:
10/00E
Country/Region of Manufacture:
United States
Seller Notes:
Unit only — inspected and in good condition. See photos.
Compatible With:
T1 telecom networks, CPE equipment, ESF/D4 framing
LED Indicators:
PWR, LPMK, PAC LOS, CPE LOS, ESF, MON, EQUIP IN/OUT, SPAN CURRENT, MNLS
Condition Notes:
Teltrend 390ALCD Digital T1 CSU. Inspected and in good used condition. Light surface wear on housing. Front panel and terminal block intact. See photos for details.
View AllClose

Related Products

Related Products

TeleProcessing Products TP-501 CSU/DSU Digital Termination Unit – front three-quarter view showing front panel controls and attached power cable TeleProcessing Products TP-501 front panel close-up showing OS and TEST buttons and Pattern, DTE, DDS loopback switches
Add to Cart
Quick view

TeleProcessing Products TP-501 CSU/DSU Digital Termination Unit T1 DDS

TeleProcessing Products Inc.

$75.00
Was: $150.00
TeleProcessing Products TP-501 CSU/DSU Digital Termination Unit T1 DDSThe TeleProcessing Products TP-501 is a CSU/DSU (Channel Service Unit / Data Service Unit) digital termination unit designed to...
28311
SKU:
28311
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Brand:
TeleProcessing Products Inc.
Model:
TP-501
MPN:
TP-501
Type:
CSU/DSU Digital Termination Unit
SKU:
28311
Interface Type:
T1, DDS, DTE
Loopback Modes:
Pattern Loopback, DTE Loopback, DDS Loopback
Front Panel Controls:
OS button, TEST button, Pattern/DTE/DDS loopback switches
Form Factor:
Desktop
Seller Notes:
Includes AC power cable
Condition:
Used – Inspected and in Good Condition
Compatible With:
T1 and DDS digital circuits
Condition Notes:
TeleProcessing Products TP-501 CSU/DSU Digital Termination Unit. Inspected and in good used condition. Normal wear. Front panel controls intact. AC power cable included.

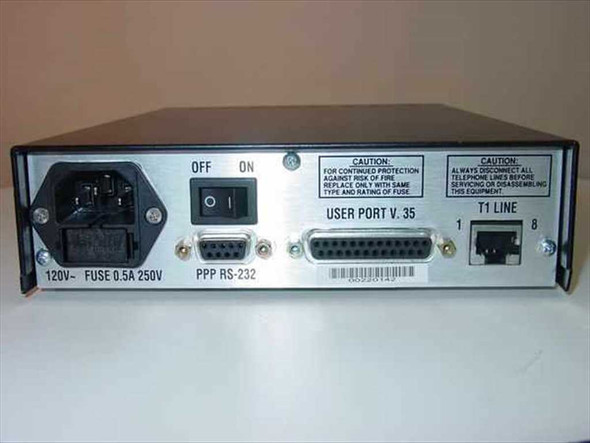

Astrocom SP-Series SP100SA T1 line network modem — front panel showing LINK, MONITOR, LEDS, control port DB-9, and POWER indicator Astrocom SP100SA rear panel showing IEC power inlet, ON/OFF switch, PPP RS-232 DB-9, V.35 user port, and RJ-48C T1 line port
