Telex 8510 Dot Matrix Printhead Replacement Part for Dot Matrix Printers

Telex 8510 Dot Matrix Printhead Replacement Part for Dot Matrix Printers

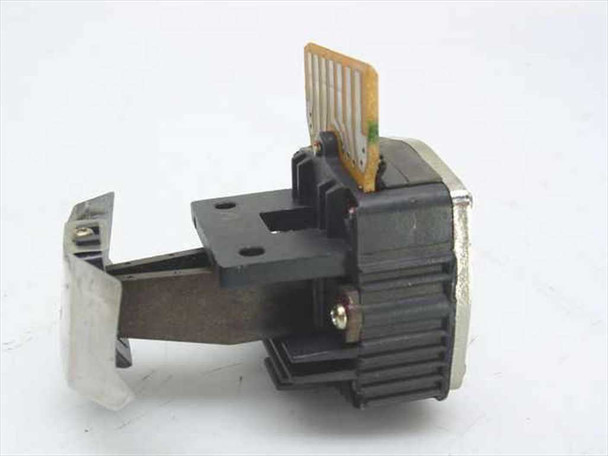

The Telex 8510 is a dot matrix printhead assembly designed for use in Telex dot matrix printers. The printhead is the core print mechanism — a set of fine wire pins driven by electromagnetic actuators that strike an inked ribbon to form characters and graphics on paper. This unit includes the needle assembly, metal deflector shield, black finned heatsink body, mounting bracket, and flat flex ribbon connector.

Specifications & What's Included

• Brand: Telex
• Model: 8510
• Type: Dot matrix printhead (wire matrix print mechanism)
• Connector: Flat flex (FFC) ribbon connector
• Construction: Black finned heatsink body with metal deflector shield and mounting bracket
• Includes: Printhead assembly only — no cables, ribbon, or mounting hardware

Applications

Dot matrix printheads like the Telex 8510 are used in impact dot matrix printers, which dominated business printing from the late 1970s through the 1990s in applications requiring multipart forms, continuous-feed paper, or carbon-copy output. Telex was known for producing communication terminals, teleprinters, and associated printer components for business and industrial environments. Replacement printheads are sought by technicians and businesses maintaining legacy dot matrix printers still used today in point-of-sale, industrial, banking, and logistics environments where impact printing on multipart forms remains a requirement.
