TeleProcessing Products TP-501 CSU/DSU Digital Termination Unit T1 DDS

TeleProcessing Products TP-501 CSU/DSU Digital Termination Unit T1 DDS

The TeleProcessing Products TP-501 is a CSU/DSU (Channel Service Unit / Data Service Unit) digital termination unit designed to interface customer premise equipment with T1 and DDS (Digital Data Service) circuits. It provides the signal conditioning, loopback testing, and network termination functions required at the boundary between a carrier's digital line and the connected DTE equipment.

Specifications & What's Included

• Make: TeleProcessing Products Inc.
• Model: TP-501
• Type: CSU/DSU Digital Termination Unit
• Interface: T1 / DDS digital circuit termination with DTE interface

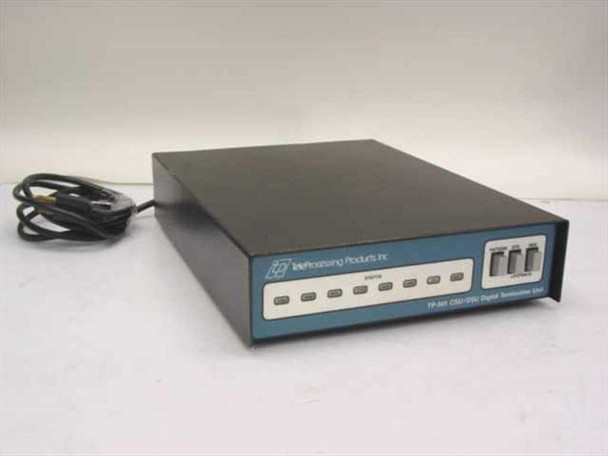

• Front panel indicators: OS (Out of Service) and TEST status buttons
• Front panel loopback switches: Pattern Loopback, DTE Loopback, DDS Loopback
• Form factor: Desktop / tabletop enclosure

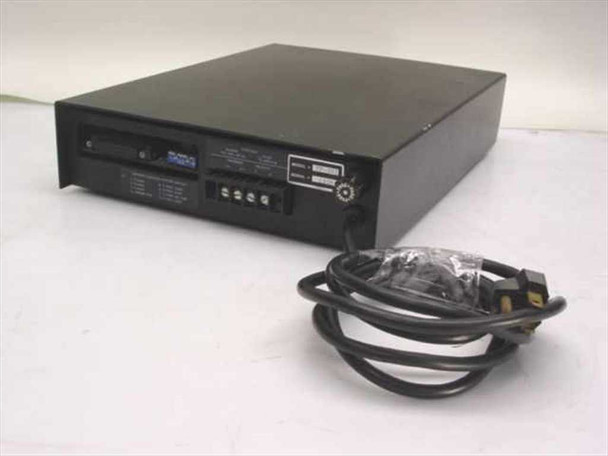

• Includes: AC power cable

Applications

CSU/DSU units like the TP-501 are used at the customer premises end of a T1 or DDS leased-line circuit to terminate the digital carrier signal and present a clean digital interface to the attached DTE (Data Terminal Equipment) such as a router, multiplexer, or host system. The CSU portion handles line termination, signal equalization, and compliance with the carrier network interface, while the DSU portion converts the bipolar line signal into the format the DTE expects. Integrated loopback test modes — pattern, DTE, and DDS — allow technicians to isolate faults by looping the signal at different points in the circuit without dispatching to the central office. Equipment of this type was widely deployed in enterprise WAN environments and carrier-connected data centers from the 1980s through the early 2000s, supporting leased-line T1 and DDS connections before the broad adoption of broadband and fiber alternatives. These units remain relevant for legacy T1-based circuits still in service at facilities that have not yet migrated to newer WAN technologies.
