Telemecanique LR2-D2353 Thermal Overload Relay 23-32A 3-Phase Motor Protection
The Telemecanique LR2-D2353 is a three-phase thermal overload relay with an adjustable current range of 23 to 32 amperes, designed to protect AC induction motors from sustained overcurrent, phase loss, and thermal overload conditions. It mounts directly onto compatible Telemecanique/Schneider Electric LC1-D and LC2-D series contactors to form a complete motor starter assembly.
Specifications & What's Included
- Manufacturer: Telemecanique (Schneider Electric)
- Model: LR2-D2353
- Part Number: 023264
- Type: Thermal overload relay (bimetallic)
- Current adjustment range: 23–32 A
- Number of poles: 3 (three-phase)
- Auxiliary contacts: 1 NO (normally open) + 1 NC (normally closed)
- Load terminals: T1, T2, T3
- Reset: Manual (STOP button) and automatic reset capability (RESET button)
- Series: LR2 D
- Compatible contactors: LC1-D and LC2-D series (Telemecanique/Schneider Electric)
- Country of manufacture: France
- Date code: France9605
- CE marked
- Includes: Relay unit and original manufacturer's box with product insert
Applications
The LR2-D series thermal overload relay is standard equipment in IEC motor starter assemblies used across industrial automation, HVAC systems, pumping stations, conveyor systems, and general manufacturing. These relays are paired with a matching contactor to form a complete motor starter — the contactor switches the motor on and off, while the overload relay monitors current draw and trips the circuit if the motor runs hot or draws excessive current, protecting the motor windings from damage. The LR2-D2353 covers the 23–32A range, making it suitable for driving motors roughly in the 11–15 kW (15–20 HP) range at 400V three-phase, depending on the application. The manual STOP button allows the operator to trigger a controlled trip, and the RESET button restores operation after a thermal trip event. This relay type remains in widespread use in industrial panel building and motor control center (MCC) construction today.

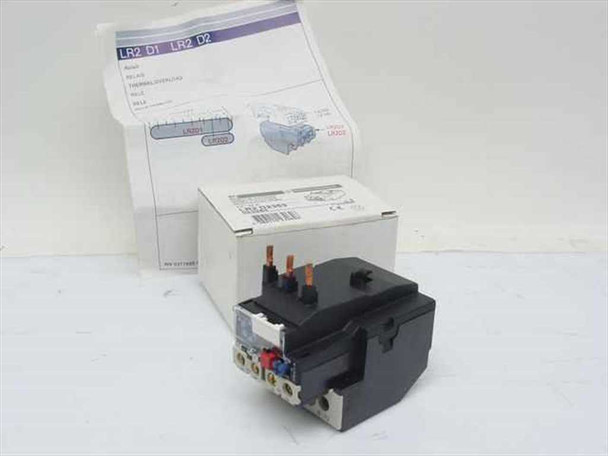

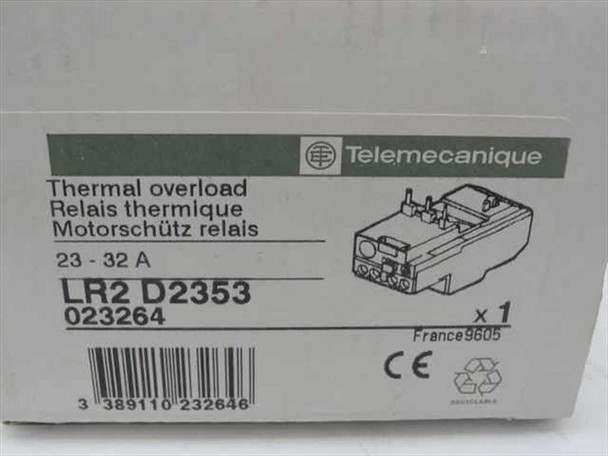

This Telemecanique LR2-D2353 thermal overload relay is new and unused in its original manufacturer's box, complete with the product insert card. The box label shows part number 023264, a 23–32A rating, CE mark, and a France date code of 9605. The relay itself shows no signs of use or wear. Please view our photo set and contact us if you have any questions.
