Teledyne Taber 206 Pressure Transducer 0-1000 PSIG 350 Ohm Bridge MIL-Spec

Teledyne Taber 206 Pressure Transducer 0-1000 PSIG 350 Ohm Bridge MIL-Spec

The Teledyne Taber Model 206 is a heavy-duty strain gauge pressure transducer built for high-pressure measurement in demanding aerospace and industrial environments. Manufactured by Taber Industries (Teledyne Taber) in North Tonawanda, New York, this unit features a rugged stainless steel body, a Wheatstone bridge sensing element with a 350-ohm nominal resistance, and a MIL-spec multi-pin circular electrical connector for reliable signal output in harsh conditions.

Specifications & What's Included

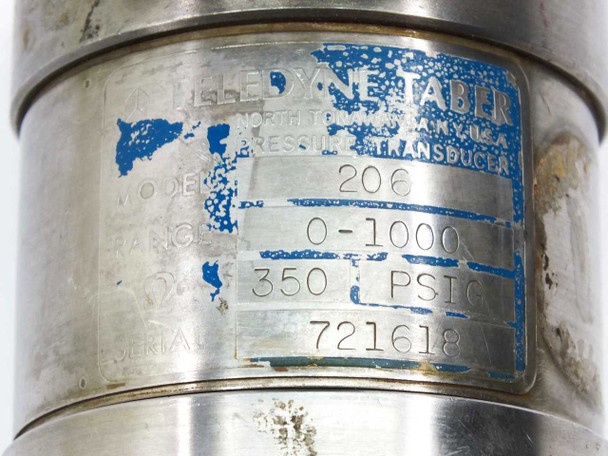

• Brand: Teledyne Taber (Taber Industries), North Tonawanda, NY, USA
• Model: 206
• Pressure Range: 0–1000 PSIG (gauge pressure)
• Bridge Resistance: 350 Ohms (Wheatstone bridge strain gauge)
• Sensing Technology: Bonded strain gauge / Wheatstone bridge
• Pressure Port: Male NPT threaded inlet

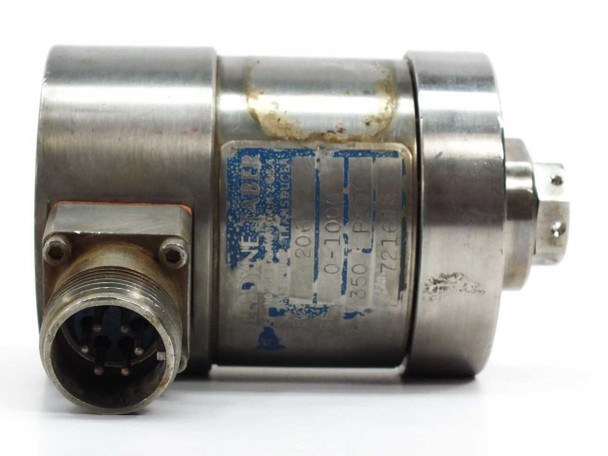

• Electrical Connector: MIL-spec multi-pin circular connector (7-pin, side-exit)
• Body Construction: Stainless steel, cylindrical
• Mounting: Threaded inline / direct mount via NPT port and flange with 12 socket-head cap screws
• Country of Manufacture: United States
• Included: Transducer only — no signal conditioning module, cables, or mounting hardware

Applications

The Taber Model 206 is a precision strain gauge pressure transducer designed for static and dynamic pressure measurement in high-integrity aerospace, defense, and industrial test environments. Taber Industries built instruments of this type for use in rocket propulsion test cells, hydraulic system monitoring, and chamber pressure measurement on large-scale rocket motors — including Space Shuttle Solid Rocket Booster (SRB) test programs. The 350-ohm Wheatstone bridge output is compatible with standard strain gauge signal conditioners and data acquisition systems, making these transducers usable with a wide range of instrumentation amplifiers and DAQ hardware. The MIL-spec connector ensures reliable, vibration-resistant signal connections under the mechanical and thermal stresses of test stand environments. Taber pressure transducers from this era (1970s–1980s) are recognized for their robust all-metal construction and continue to be used in legacy aerospace test facilities, research labs, and high-pressure hydraulic test rigs where their proven mechanical integrity remains valuable.
