Teledyne Taber 206 Pressure Transducer 0-1000 PSIG 350 Ohm Wheatstone Bridge

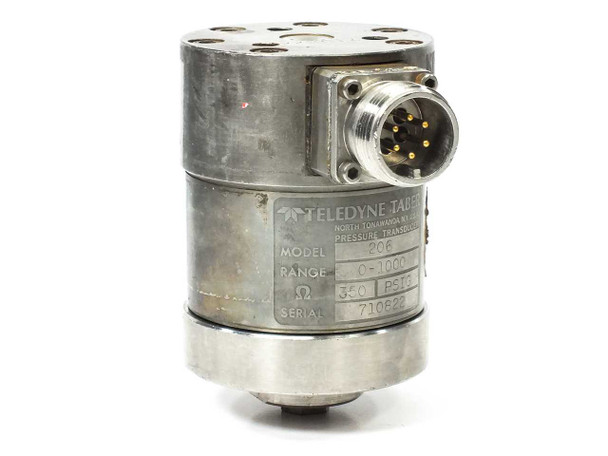

The Teledyne Taber Model 206 is a strain-gauge pressure transducer manufactured by Teledyne Taber Industries in North Tonawanda, New York. It uses a 350-ohm Wheatstone bridge configuration to convert applied pressure into a proportional electrical signal, with a full-scale range of 0 to 1,000 PSIG. The unit is housed in a rugged stainless steel cylindrical body with a military-style multi-pin circular connector and a bottom-mounted male NPT threaded pressure port.
Specifications & What's Included
- Manufacturer: Teledyne Taber, North Tonawanda, N.Y., U.S.A.
- Model: 206
- Type: Pressure Transducer (Strain Gauge / Wheatstone Bridge)
- Pressure Range: 0–1,000 PSIG
- Pressure Type: Gauge (PSIG)
- Bridge Resistance: 350 Ohm
- Housing: Cylindrical stainless steel body
- Electrical Connector: Multi-pin circular connector (MIL-spec style), top-mounted
- Pressure Port: Male NPT threaded fitting, bottom-mounted
- Top face: 12-hole bolt/mounting ring
- Serial Number: 710822
- Condition: Significant housing damage — see condition notes and photos
- Included: Transducer only — no cables, adapters, or mounting hardware
Applications
Teledyne Taber strain-gauge pressure transducers like the Model 206 are used in industrial process measurement, hydraulic and pneumatic systems, test-stand instrumentation, and laboratory pressure monitoring. The 350-ohm Wheatstone bridge output is compatible with standard signal conditioners and data acquisition systems that accept a mV/V bridge signal, making these transducers well-suited for integration into automated control systems, structural testing, and fluid-power rigs. Taber's cylindrical stainless steel transducers were common in aerospace ground support, manufacturing, and research environments from the mid-20th century onward, and the Model 206 in particular was specified for high-reliability applications requiring a robust, compact design. The NPT pressure port and mil-spec circular connector reflect this heritage of demanding service environments.
This Teledyne Taber 206 Pressure Transducer shows significant wear and physical damage consistent with field use. The stainless steel housing has a large area of deterioration on one side where the outer casing is missing or peeled away, exposing the amber internal potting compound — this damage is clearly visible in the photos and represents a notable structural issue. Surface rust and corrosion are also present on the label area. The multi-pin circular connector and pressure port appear intact. This unit has not been powered or bench-tested at our facility and is being sold in as-found condition. Please review all photos carefully before purchasing, and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Teledyne Taber |
Model: |
206 |
MPN: |
206 |
Type: |
Pressure Transducer |
SKU: |
50075 |
Seller Notes: |
Transducer only — no cables or mounting hardware included. |
Country/Region of Manufacture: |
United States |
Pressure Range: |
0-1000 PSIG |
Bridge Resistance: |
350 Ohm |
Transducer Technology: |
Wheatstone Bridge / Strain Gauge |
Pressure Type: |
Gauge (PSIG) |
Connector Type: |
Multi-pin circular (MIL-spec style) |
Housing Material: |
Stainless Steel |
Pressure Port: |
Male NPT threaded (bottom) |
Serial Number: |
710822 |
Form Factor: |
Cylindrical / Inline |
Manufacturer Location: |
North Tonawanda, N.Y., U.S.A. |
Condition Notes: |
Teledyne Taber 206 Pressure Transducer shows significant housing damage — large area of outer casing missing on one side, exposing internal potting compound. Surface rust/corrosion on label. Connector and port appear intact. Not tested. |
