Teledyne Microwave 24022 CS38SI6-D RF Switch 6-Position 6-Pole 24-30VDC SMA
Electromechanical RF coaxial switch providing single-pole, six-throw (SP6T) switching configuration. Routes RF signals from one common input to six selectable output ports via 24-30 VDC control.
Specifications & What's Included
- 6 positions, 6 poles (SP6T configuration)
- Operating voltage: 24-30 VDC
- RF connectors: SMA female with semi-rigid coaxial leads
- Control interface: 15-pin D-Sub connector
- 6 RF output ports + 1 common input port
- Module form factor with bracket mount
- Manufactured 1988 (week 32)
- Unit only; no cables or accessories included
Applications
RF switches of this type were deployed in test equipment, telecom infrastructure, and military/aerospace systems requiring selective signal routing. The SP6T configuration supports multi-channel switching for antenna selection, test configurations, or signal distribution in frequency-sensitive applications operating in the microwave range.
Condition: Used

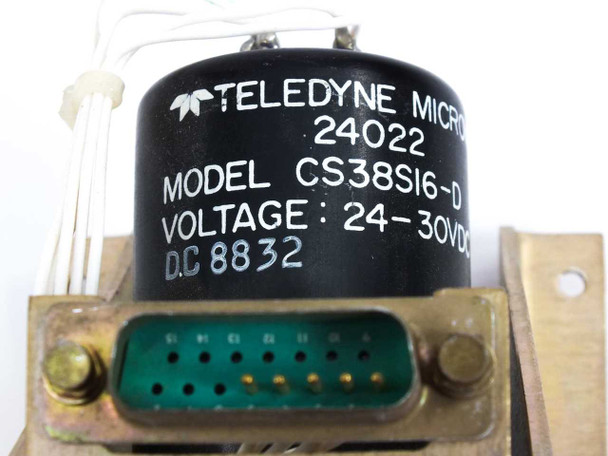

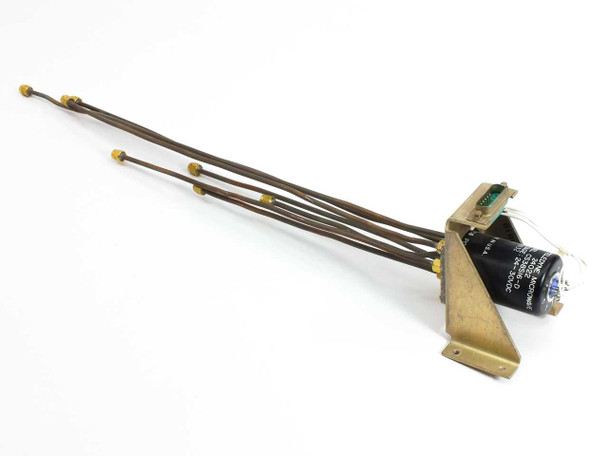

This Teledyne Microwave 24022 CS38SI6-D 6-position RF coaxial switch has been inspected and appears to be in good condition. The semi-rigid SMA coaxial leads and D-sub control connector are intact and undamaged. The brass body and mounting bracket show light surface oxidation and age-related patina consistent with equipment from the late 1980s, but there is no structural damage or missing hardware. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
