Telco Systems

Telco Systems 3100-40 ISS 2 Network Unit w/ 6690-00 PSU 2041-00 T1-CSU

(No reviews yet) Write a Review
SKU:
34499
MPN:
3100-40 ISS 2
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Shipping:
Calculated at Checkout

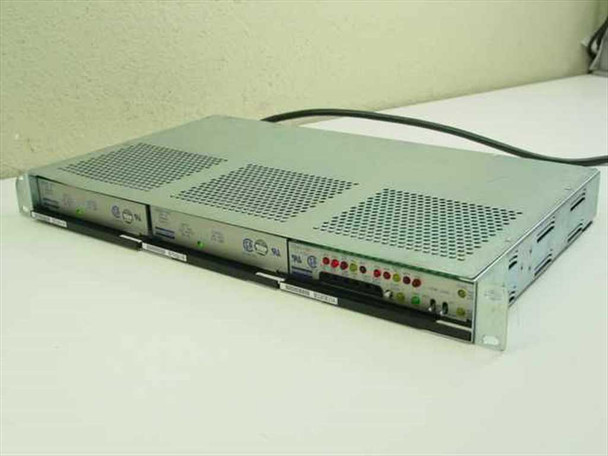

  • Telco Systems 3100-40 ISS 2 Network Unit – front panel angled view showing dual PSU modules, T1-CSU board with LED indicators, and rack ears

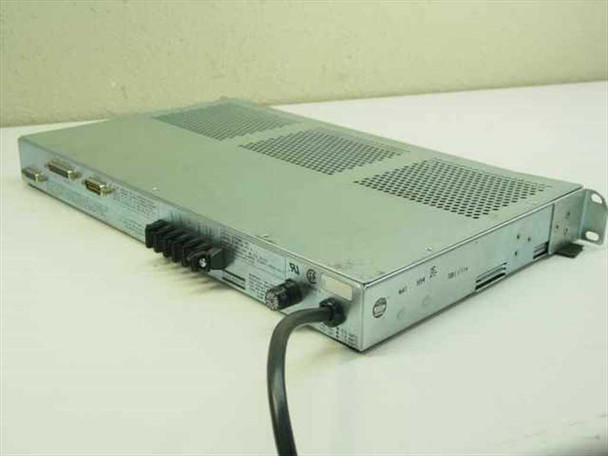

  • Telco Systems 3100-40 ISS 2 Network Unit – rear panel angled view showing DB25 connectors and power cable

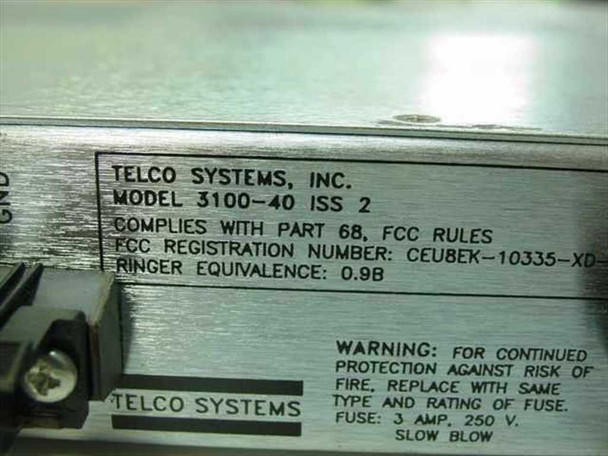

  • Telco Systems 3100-40 ISS 2 label – model plate showing Model 3100-40 ISS 2, FCC Part 68 registration CEUBEK-10335-XD, and fuse rating

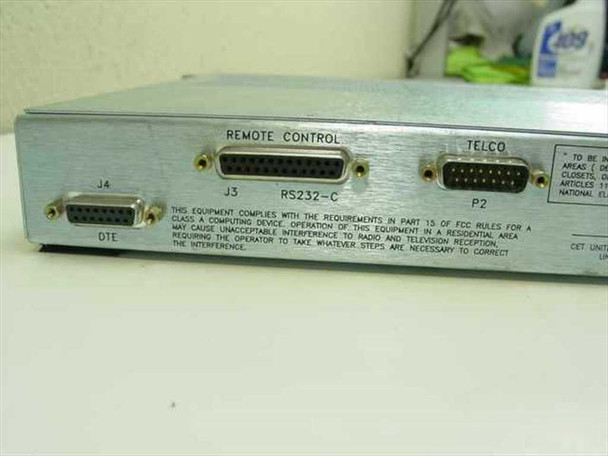

  • Telco Systems 3100-40 rear connector panel – DTE DB25 port (J4), RS232-C DB25 port (J3), Remote Control port, and Telco DB25 port (P2)

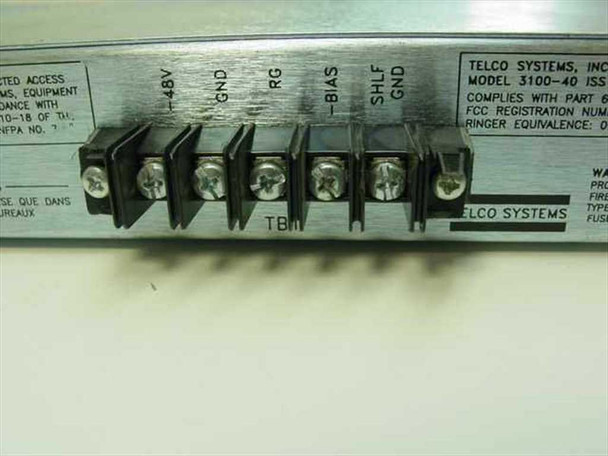

  • Telco Systems 3100-40 terminal block panel – labeled -48V, GND, RG, -BIAS, SHLF GND screw terminals and model label
  • Telco Systems 3100-40 terminal block close-up – second view of -48V GND RG -BIAS SHLF GND termination block with screw terminals

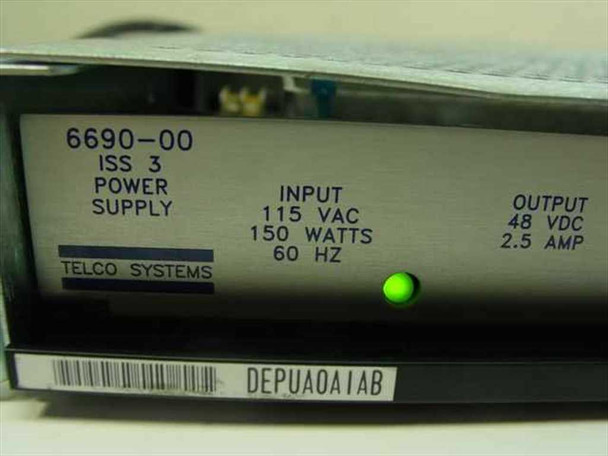

  • Telco Systems 6690-00 ISS 3 Power Supply module close-up – label showing Input 115 VAC 150W 60Hz, Output 48 VDC 2.5A, green LED lit

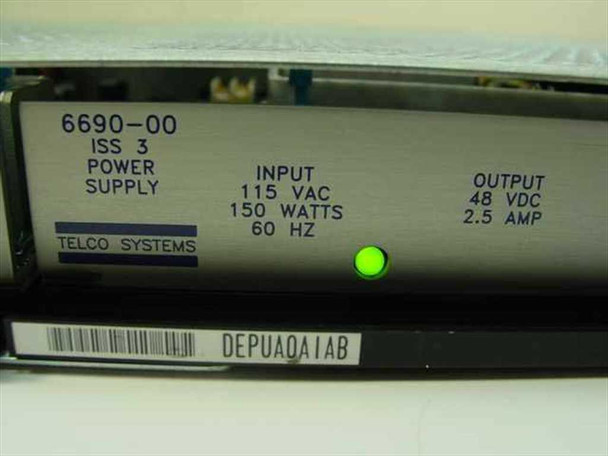

  • Telco Systems 6690-00 ISS 3 Power Supply second module – label showing Input 115 VAC 150W 60Hz, Output 48 VDC 2.5A, green LED lit
  • Telco Systems 2041-00 T1-CSU board close-up – front panel showing LOS OOF AIS YEL BPV EQPT LPD LED indicators, PWR and QRSS LEDs, Send Code and loop switches
$120.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Telco Systems 3100-40 ISS 2 Network Unit w/ 6690-00 PSU 2041-00 T1-CSU

A 1U rackmount T1 network interface unit designed for telecom and data network applications. Includes dual power supplies and a T1 Channel Service Unit (CSU) board for T1 line termination and management.

Specifications & What's Included

  • Model: Telco Systems 3100-40 ISS 2
  • 2x 6690-00 ISS 3 PSU (48 VDC output, 150W input, 115 VAC 60 Hz)
  • 1x 2041-00 T1-CSU board with T1, RS-232-C, and DTE interfaces
  • Connectors: DB25 (DTE, RS-232-C), Telco P2, terminal blocks
  • Status LEDs: LOS, OOF, AIS, YEL, BPV, EQPT, LPD
  • FCC Part 68 and Part 15 compliant

Applications

This unit was used in telecom infrastructures for T1 line termination, signal monitoring, and network interface management. Commonly deployed in carrier-grade network environments for multiplexing and cross-connect operations. The CSU board handled T1 protocol conversion and diagnostics for leased line connectivity.

Condition: Used
This Telco Systems 3100-40 ISS 2 Network Unit powers on and the indicators light up. We were not able to test it beyond that, so its full functionality is unknown. The unit includes two 6690-00 ISS 3 Power Supply boards and one 2041-00 T1-CSU board. Cosmetically the chassis shows normal wear consistent with rack service use. The front-panel LED indicators on the T1-CSU board and the green power LEDs on both PSU modules were observed lit during power-on. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Telco Systems
Model:
3100-40
Secondary Model:
ISS 2
MPN:
3100-40
SKU:
34499
Type:
T1 Network Unit / CSU Rackmount System
Condition:
Used – Powers On, Limited Testing
Form Factor:
1U Rack Mount
Included Components:
2x 6690-00 ISS 3 PSU, 1x 2041-00 T1-CSU Board
Power Supply Model:
6690-00 ISS 3
PSU Input Voltage:
115 VAC, 60 Hz
PSU Input Power:
150 Watts
PSU Output Voltage:
48 VDC
PSU Output Current:
2.5 Amp
T1-CSU Board Model:
2041-00
Interface Type:
T1, RS-232-C, DTE, Telco
Connector Types:
DB25 (DTE J4, J3 RS232-C), DB25 (Telco P2), TB terminals
Termination Block:
-48V, GND, RG, -BIAS, SHLF GND
T1-CSU Indicators:
LOS, OOF, AIS, YEL, BPV, EQPT, LPD LEDs
FCC Registration:
CEUBEK-10335-XD, Part 68 Compliant
Ringer Equivalence:
0.9B
Fuse Rating:
3 Amp, 250V, Slow Blow
Standards Compliance:
FCC Part 68, FCC Part 15
Country/Region of Manufacture:
United States
Seller Notes:
Includes 2x 6690-00 ISS 3 PSU boards and 1x 2041-00 T1-CSU board
Condition Notes:
Telco Systems 3100-40 ISS 2 Network Unit powers on and lights up; full functionality untested. Includes 2x 6690-00 ISS 3 PSU and 1x 2041-00 T1-CSU board. Sold as-is beyond power-on confirmation. Contact us with questions.
View AllClose

Related Products

Related Products

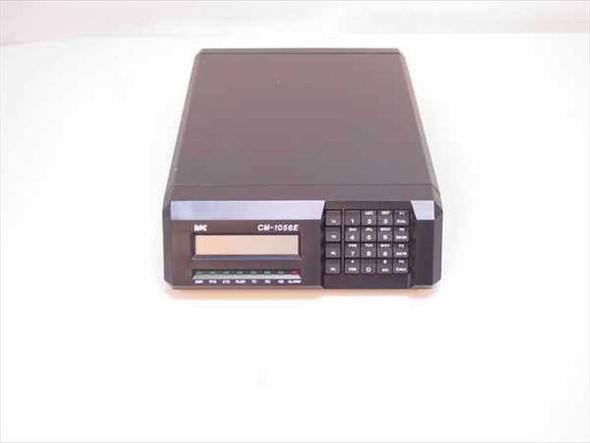

INC CM-1056E T1 CSU/DSU Network Unit — front and top view showing LCD display and keypad INC CM-1056E 101TDT20A CSU/DSU — angled top-right view showing full desktop enclosure
